6.

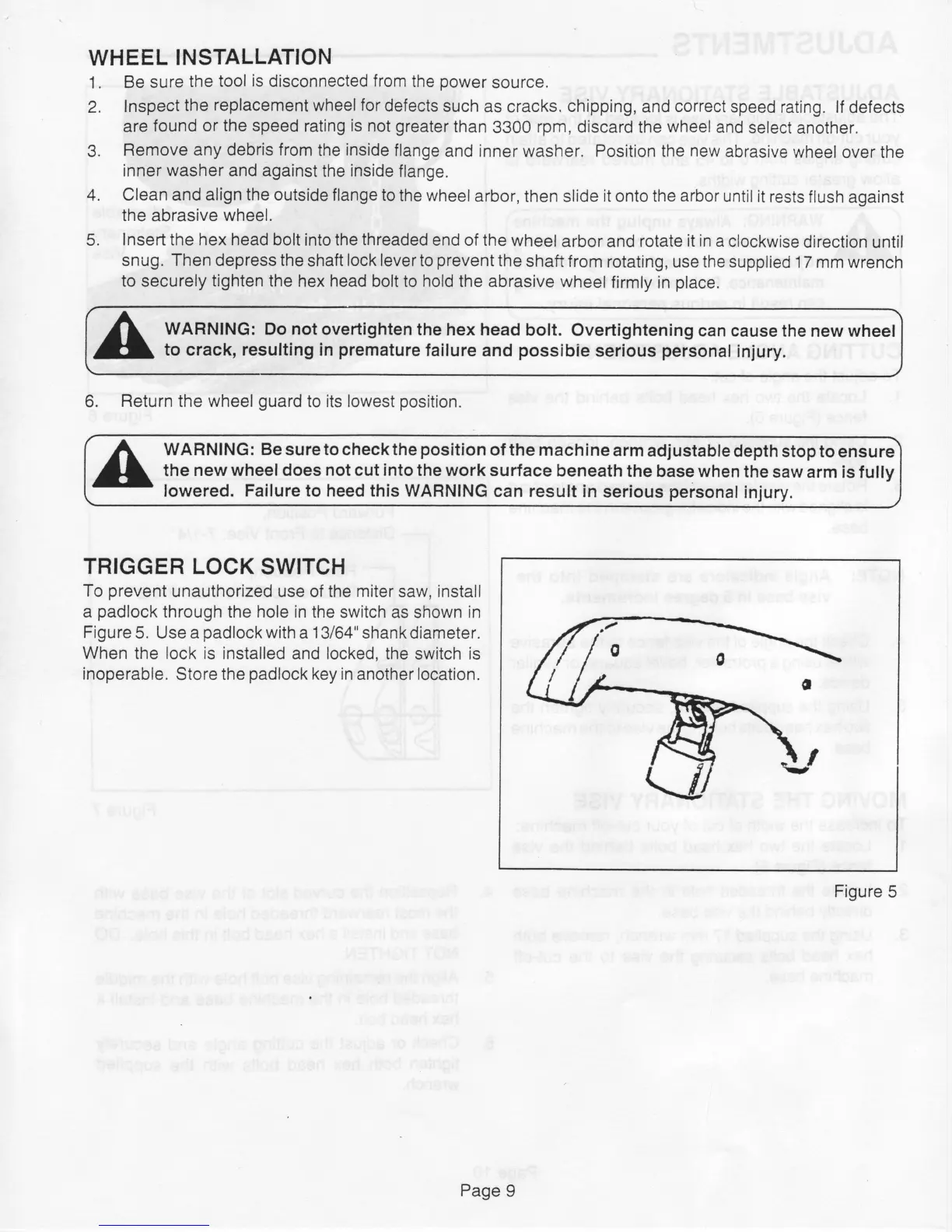

WHEEL
INSTALLATION
1.
Be sure
the tool
is
disconnected
from
the
power
source.
2.
Inspect
the
replacement
wheel
for
defects such
as cracks.
chipping,
and
correct
speed
rating. lf
defects
are
found or the speed
rating
is not
greater
than
3300
rpm, discard
the
wheel
and
select
another.
3.
Remove any
debris from
the
inside
flange
and inner washer. Position the
new
abrasive
wheel
over the
inner washer and against
the inside
flange.
4.
Clean and align the outside
flange to
the wheel
arbor,
then slide
it
onto the
arbor
until
it rests
flush against
the
abrasive
wheel.
5.
lnsert the hex head bolt
into
the threaded
end of the
wheel
arbor
and
rotate
it in
a clockwise
direction
until
snug. Then depress the
shaft
lock lever
to
prevent
the
shaft
f rom
rotating, use the supplied
1
7 mm wrench
to securely
tighten
the hex head
bolt to
hold
the abrasive wheel
firmly
in
place.
WARNING: Do
not
overtighten
the hex head
bolt. Overtightening
can cause the
new wheel
to crack, resulting
in
premature
failure
and
possibie
serious
personal
injury.
Return the wheel
guard
to its lowest
position.
WARNING
: Be
sure
to check the
position
of the
mach i ne
arm
adjustable
depth stop
to ensure
the new wheel does
not cut into
the work surface
beneath
the
base when
the saw
arm is fully
lowered. Failure to heed this WARNING
can result
in
serious
personal
injury.
TRIGGER
LOCK
SWITCH
To
prevent
unauthorized use of the
miter
saw, install
a
padlock
through
the
hole in
the
switch as
shown
in
Figure
5. Use
a
padlock
with
a
1
3/64"
shank
diameter.
When
the
lock is
installed
and
locked,
the
switch
is
inoperable.
Store
the
padlock
key
in
another
location.
Figure
5
Page
9
