KNOW YOUR DRILL-DRIVER

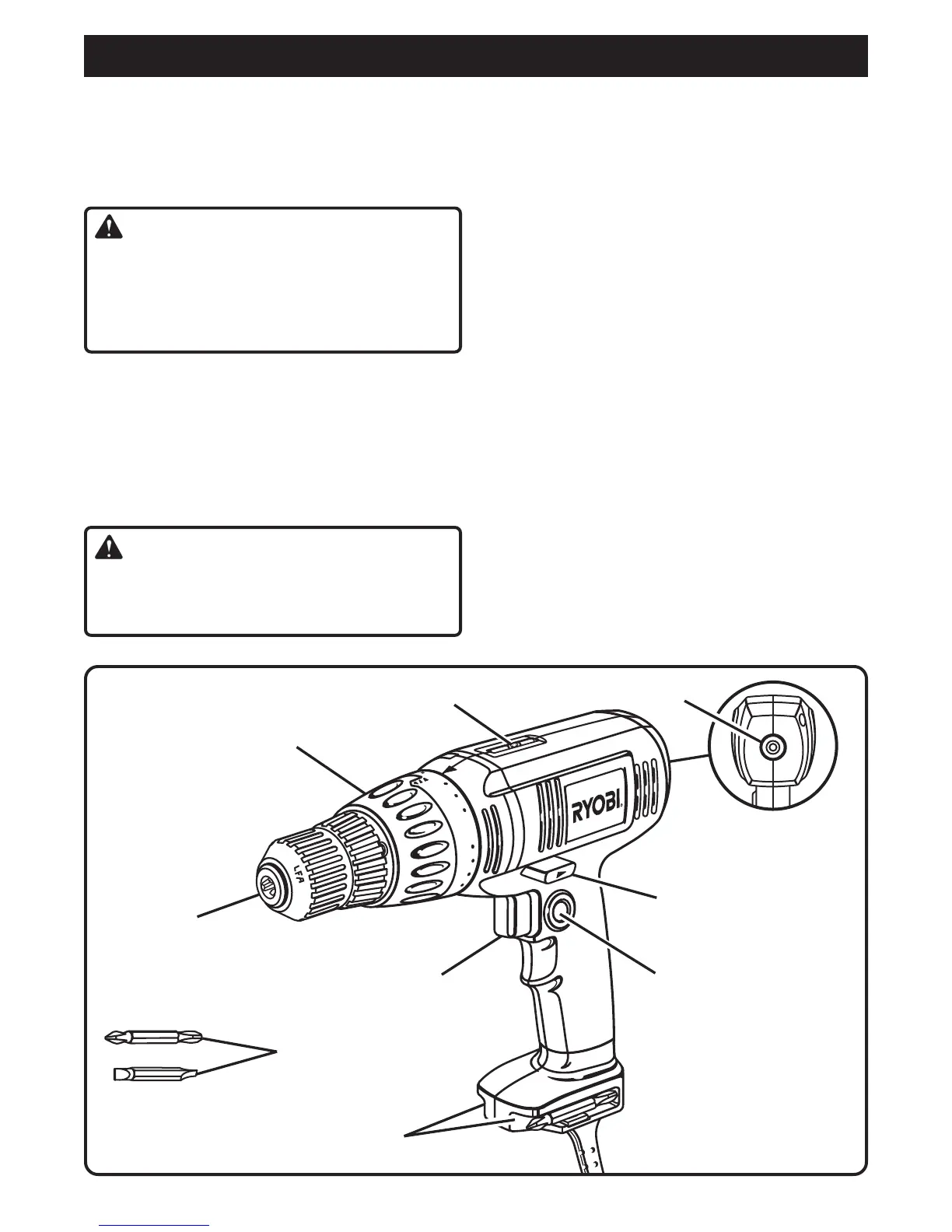

See Figure 1.
Before attempting to operate your drill-driver, familiarize
yourself with all operating features and safety require-
ments.
WARNING:
Carefully read through this entire operator's manual
before using your new drill-driver. Pay close attention
to the Safety Rules, Warnings and Cautions. If you use
your drill-driver properly and only for what it is intended,
you will enjoy years of safe, reliable service.
ELECTRICAL CONNECTION
Your drill-driver has a precision built electric motor. It
should be connected to a power supply that is 120
volts, 60 Hz, AC only (normal household current). Do
not operate this tool on direct current (DC). A substantial
voltage drop will cause a loss of power and the motor will
overheat. If your drill-driver does not operate when
plugged into an outlet, double-check the power supply.
WARNING:
Do not allow familiarity with your drill-driver to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict severe injury.
FEATURES
SWITCH
TRIGGER
DIRECTION OF
ROTATION SELECTOR
(FORWARD/REVERSE)
KEYLESS
CHUCK
BIT STORAGE AREA
TORQUE
ADJUSTMENT
RING
LOCK-ON
BUTTON
Fig. 1
SCREWDRIVER BITS
LEVEL
LEVEL
KEYLESS CHUCK
Your drill-driver has a keyless chuck that allows you to
hand tighten or release drill bit in the chuck jaws.
SWITCH
To turn your drill-driver ON, depress the switch trigger.
Release switch trigger to turn your drill-driver OFF.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
Your drill-driver has a forward/reverse selector located
above the switch trigger.
VARIABLE SPEED
This tool has a variable speed switch that delivers
higher speed with increased trigger pressure. Speed is
controlled by the amount of switch trigger depression.
BIT STORAGE
When not in use, bits provided with your drill-driver
can be placed in the storage area located in the motor
housing.
LEVEL
Two levels are recessed in the motor housing of your
drill-driver. They can be used to keep drill bits level
during both horizontal and vertical drilling operations.

Ryobi D45C Specifications

General

Brand	Ryobi
Model	D45C
Category	Drill
Language	English
