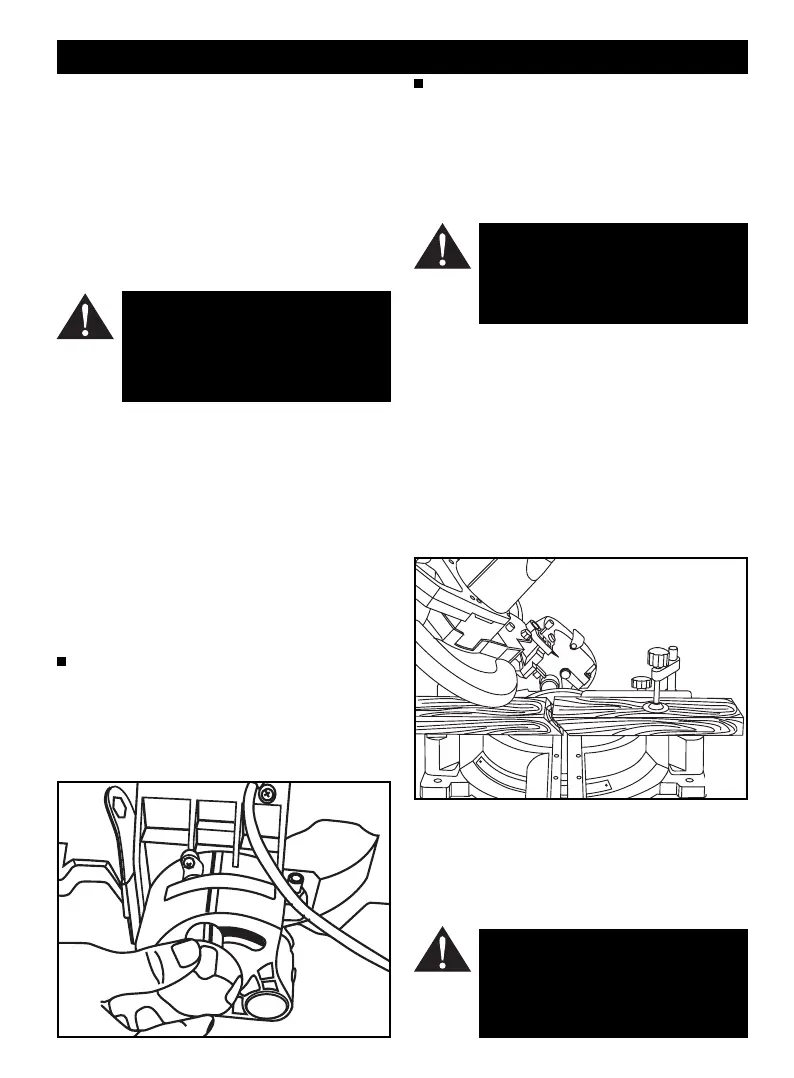

TO BEVEL CUT WITH YOUR MITRE SAW
•
Pull out the lock pin and lift the saw arm to its full height.
•
Loosen the mitre table locking handle.
•
Rotate the mitre table until the pointer aligns with zero on the
mitre scale.
•
Lock the mitre table by rotating the mitre table lock knob in a
clockwise direction.
•
Loosen the bevel lock lever and move the saw arm to the left
to the desired bevel angle.
•
Bevel angles can be set from 0
0
to 45
0
.
•
Align the indicator point with the desired angle.
•
Once the saw arm has been set at the desired angle, se-
curely tighten the bevel lock lever.
•
Place the work piece flat on the mitre table with one edge
securely against the fence. If the board is warped, place the
convex side against the fence. If the concave edge of the
board is placed against the fence, the board could collapse
on the blade at the end of the cut, jamming the blade.
•
When cutting long pieces of timber or molding, support the
overchanging end(s) of the stock with the material supports.
•
Align the cutting line on the workpiece with the edge of saw
blade.
•
Grasp the stock firmly with one hand and secure it against
the fence. Tighten vice to secure the workpiece. (Fig. 23)
•
Place the workpiece flat on the mitre table with one edge
securely against the fence. If the board is warped, place the
convex side against the fence and clamp the vice. If the con-
cave edge of a board is placed against the fence, the board
could collapse on the blade at the end of the cut, jamming
the blade. (Fig .21)
•
When cutting long pieces of timber or molding, support the
opposite end of the stock with the material supports.
•
Align cutting line on the workpiece with the edge of saw blade.
•
Grasp the stock firmly with one hand and secure it against
the fence. Use the vice to secure the workpiece. (Fig. 21).
•
Before turning on the saw, perform a dry run of the cutting
operation just to make sure that no problems will occur when
the cut is made.
•
Grasp the saw handle firmly, press down on the lock-off lever,
then squeeze the trigger switch. Allow several seconds for
the blade to reach maximum speed.
•
Press and hold the laser on/off switch to turn the laser on.
•
Pull the safety lock and then slowly lower the blade into and
through the workpiece.
•
Release the trigger switch and allow the saw blade to stop
rotating before raising the blade out of the workpiece.
BEVEL CUT
A bevel cut is made by cutting across the grain of the workpiece
with the blade angled to the fence and mitre table. A bevel cut
is made with the mitre table set at zero degree position and the
blade set at an angle between 0
0
and 45
0
. (Fig .22)
OPERATION
WARNING: To avoid serious personal injury,
keep your hands outside the no hands zone; at
least 75mm from blade. Never perform any cut-
ting operation freehand (without holding
workpiece against the fence). The blade could
grab the workpiece if it slips or twists.
WARNING: To avoid serious personal injury,
always push the mitre table clamp back down
before making a cut. Failure to do so could re-
sult in movement of the mitre table while mak-
ing a cut causing serious personal injury.
WARNING: To avoid serious personal injury,
keep your hands outside the no hands zone;
at least 75mm from the blade. Never perform
any cutting operation freehand ( without hold-
ing workpiece against the fence). The blade
could grab the workpiece if it slips or twists.
Fig.23
Fig.22
Page 10
