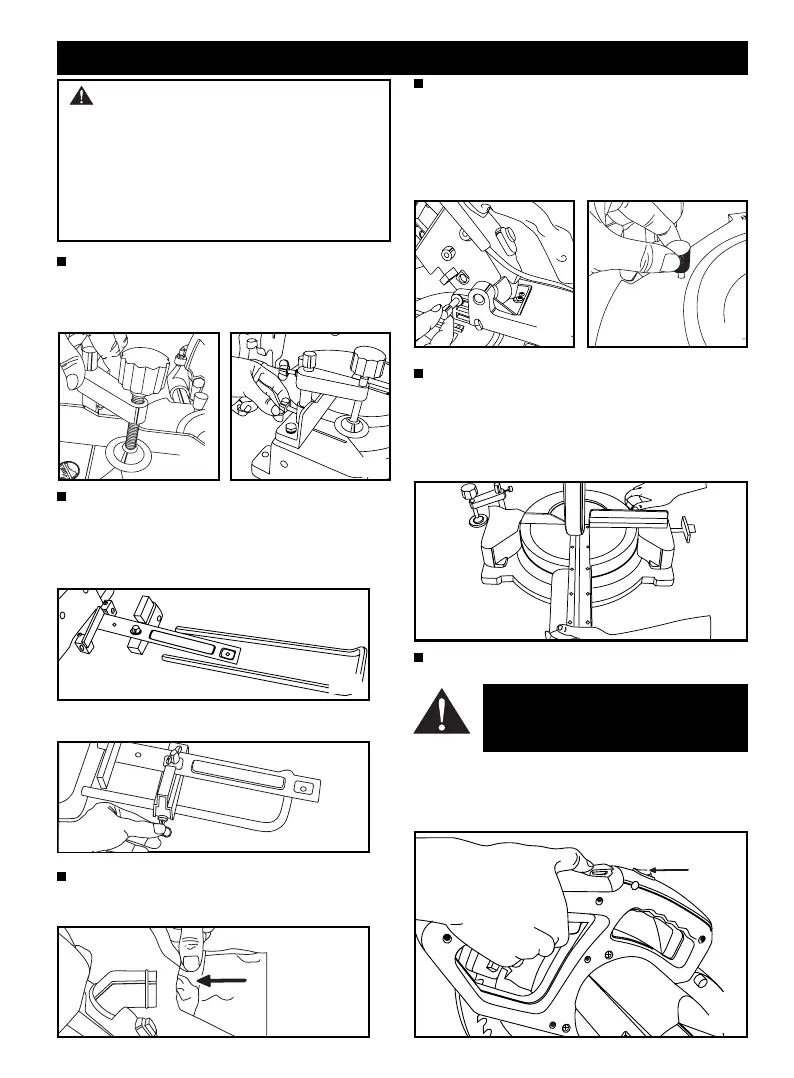

VICE ATTACHMENT
To attach the vice, push the round attachment rod into the vice
attachment hole and turn the rear locking knob in a clockwise
direction to lock. (Fig.1&2)
MATERIAL SUPPORTS
To attach the material supports turn the saw upside down. In-
sert the support rods in the base holes and attach the two
screws and nuts to each of the two material supports. (Fig.
3&4)
Adjust the Repetition Cut Stop to the desired postition. (Fig. 4)
DUST BAG
Attach the dust bag by pressing the two metal springs together.
(Fig. 5)
Laser
Switch
LOCK DOWN PIN
Your EMS1825SCL features a lock down pin for easier
transportation.To unlock the head pull the pin out and pull the
saw arm to the upright position. (Fig. 6)
To prevent sliding movement of the saw head during
transportation, lock the slide lock knob as shown in (Fig. 7)
0-45
0
MITRE ADJUSTMENT
Your EMS1825SCL mitre cuts from 0
0
to 45
0
both right and left,
with automatic locking at 0, 15, 22.5, 30 and 45 degrees. Loosen
the mitre table lock knob and move the mitre table to the de-
sired cutting angle. Re-tighten the mitre table lock knob to lock
table in position. (Fig. 8)
ON / OFF SWITCH
Your EMS1825SCL featrues a safety lock-off switch. To start
the saw, press the safety lock-off switch and then depress the
trigger switch. (Fig. 9)
ASSEMBLY
Fig.3
Fig.4
Fig.5
Fig.8
WARNING:
To prevent accidental starting that could cause possible se-
rious personal injury, assemble all parts, make sure all ad-
justments are complete, and make sure all fasteners are
secure before connecting saw to power supply. Saw should
never be connected to power supply when you are assem-
bling parts, making adjustments, installing or removing
blades, or when not in use.
Fig.2
Fig.1
Fig.9
Fig.7
WARNING: Failure to unplug your
EMS1825SCL could result in accidental start-
ing causing possible serious personal injury.
Fig.6
