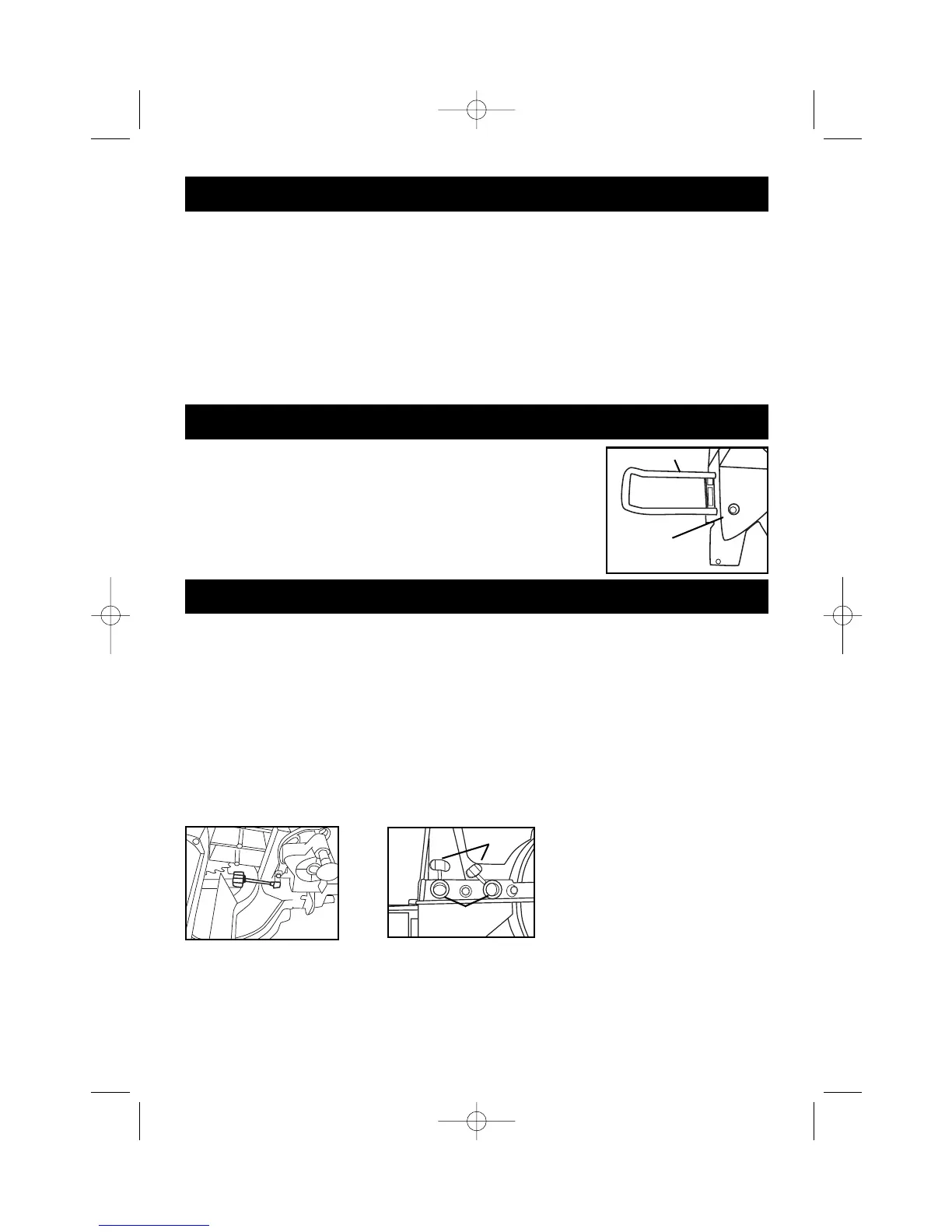

FITTING THE REPEAT STOP.
• Loosen the thumb screw to allow the arms of the work piece supports into the
holes in the repeat stops.
• Tighten the thumb screws firmly to minimise movement on the work piece
support.
• Attach the work piece support as detailed above.
NOTE: By loosening the thumb screws the repeat stop can be adjusted
to
required widths for each application.
FITTING THE WORK PIECE SUPPORT.
• Loosen the support retaining screw located on
the turntable.
• Insert the work piece support into the retaining
holes in the base.
• Tighten the retaining screw.
FITTING THE WORK PIECE VICE.
• Fit the vice to the retaining hole that best suits the cutting application. There
are two retaining holes on each side of
the saw.
• Tighten the thumbscrew on the saw.
• Put the work piece to be cut onto the saw bed.
• Adjust the vice so that it securely holds the work piece.
NOTE: A small piece of scrap timber can be used between the clamp and the
work piece to more evenly distribute the clamping force. This
will reduce the risk
or marking the work piece (especially if it is softwood) with the vice.
Fig.7
Fig.8Fig.9
Workplace support
Support railing screw
Retaining Thumbscrews
Clamp retaining holes
