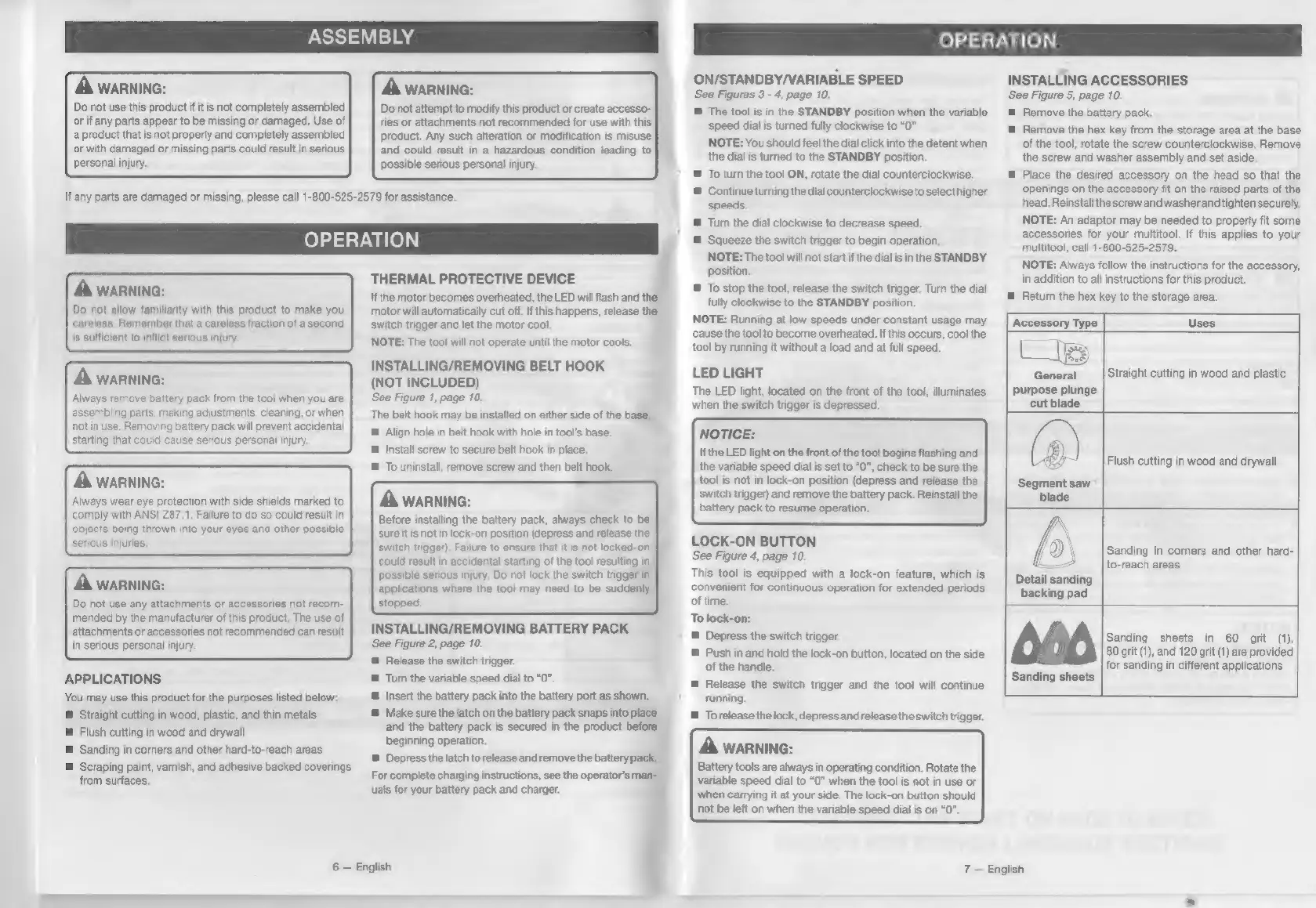

ASSEMBLY
À WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
or with damaged or missing parts could result in serious
personal injury.
À WARNING:
Do not attempt to modify this product or create accesso-
ries or attachments not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
If any parts are damaged or missing, please call 1-800-525-2579 for assistance.
OPERATION
À WARNING:
Do not allow familiarity with this product to make you
careless, Remember that a careless fraction of a second
is sufficient to inflict serious injury.
A WARNING:
Always remove battery pack from the tool when you are
assembling parts, making adjustments, cleaning, or when
not in use. Removing battery pack will prevent accidental
starting that could cause serious personal injury.
À WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes and other possible
serios injuries
A WARNING:
Do not use any attachments or accessories not recom-
mended by the manufacturer of this product. The use of
attachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this product for the purposes listed below:
m Straight cutting in wood, plastic, and thin metals
m Flush cutting in wood and drywall
m Sanding in corners and other hard-to-reach areas
m Scraping paint, varnish, and adhesive backed coverings
from surfaces.
THERMAL PROTECTIVE DEVICE
Ifthe motor becomes overheated, the LED will flash and the
motor will automatically cut off. If this happens, release the
‘switch trigger and let the motor cool.
NOTE: The tool will not operate until the motor cools.
INSTALLING/REMOVING BELT HOOK
(NOT INCLUDED)
See Figure 1, page 10.
The belt hook may be installed on either side of the base,
= Align hole in belt hook with hole in tool's base.
m Install screw to secure belt hook in place.
© To uninstall, remove screw and then belt hook.
À WARNING:
Before installing the battery pack, always check to be
sure it is not in lock-on position (depress and release the
switch trigger). Failure to ensure that it is not locked-on
could result in accidental starting of the too! resulting in
possible serious injury. Do not lock the switch trigger ln
applications where the tool may need to be suddenly
stopped.
INSTALLING/REMOVING BATTERY PACK
See Figure 2, page 10.
Em Release the switch trigger.
m Tum the variable speed dial to “0”.
m insert the battery pack into the battery port as shown.
m Make sure the latch on the battery pack snaps into place
and the battery pack is secured in the product before
beginning operation.
m Depress the latch to release and remove the battery pack.
For complete charging instructions, see the operator's man-
uals for your battery pack and charger.
6 — English
OPERATION
ON/STANDBY/VARIABLE SPEED
See Figures 3 - 4, page 10.
= The tool is in the STANDBY position when the variable
speed dial is turned fully clockwise to “0”
NOTE: You should feel the dial click into the detent when
the dial is turned to the STANDBY position
m To turn the tool ON, rotate the dial counterclockwise.
m Continueturning the dial counterclockwise to select higher
speeds.
m Turn the dial clockwise to decrease speed.
m Squeeze the switch trigger to begin operation.
NOTE: The tool will not start if the dial is in the STANDBY
position.
m To stop the tool, release the switch trigger. Turn the dial
fully clockwise to the STANDBY position.
NOTE: Running at low speeds under constant usage may
cause the tool to become overheated. If this occurs, cool the
tool by running it without a load and at full speed.
LED LIGHT
The LED light, located on the front of the tool, illuminates
when the switch trigger is depressed,
NOTICE:
If the LED light on the front of the tool begins flashing and
the variable speed dial is set to “0”, check to be sure the
tool is not in lock-on position (depress and release the
switch trigger) and remove the battery pack. Reinstall the
battery pack to resume operation.
LOCK-ON BUTTON
See Figure 4, page 10.
This tool is equipped with a lock-on feature, which is
convenient for continuous operation for extended periods
of time.
To lock-on:
m Depress the switch trigger.
m Push in and hold the lock-on button, located on the side
of the handle.
m Release the switch trigger and the tool will continue
running.
= Toreleasethelock, depress and release the switch trigger.
À WARNING:
Battery tools are always in operating condition. Rotate the
variable speed dial to “0” when the tool is not in use or
when carrying it at your side. The lock-on button should
not be left on when the variable speed dial is on “0”.
INSTALLING ACCESSORIES
See Figure 5, page 10.
m Remove the battery pack.
m Remove the hex key from the storage area at the base
of the tool, rotate the screw counterclockwise. Remove
the screw and washer assembly and set aside.
m Place the desired accessory on the head so that the
openings on the accessory fit on the raised parts of the
head. Reinstall the screw and washerand tighten securely.
NOTE: An adaptor may be needed to properly fit some
accessories for your multitool. If this applies to your
multitool, call 1-800-525-2579.
NOTE: Always follow the instructions for the accessory,
in addition to all instructions for this product.
m Return the hex key to the storage area.
Accessory Type Uses
Be
ET
General Straight cutting in wood and plastic
purpose plunge
cut blade
Flush cutting in wood and drywall
Segment saw
blade
h Sanding in corners and other hard-
=>”. to-reach areas
Detail sanding
backing pad
Sanding sheets in 60 grit (1),
80 grit (1), and 120 grit (1) are provided
for sanding in different applications
Sanding sheets
