Ryobi RCS2340B User Manual

23
OPERATION

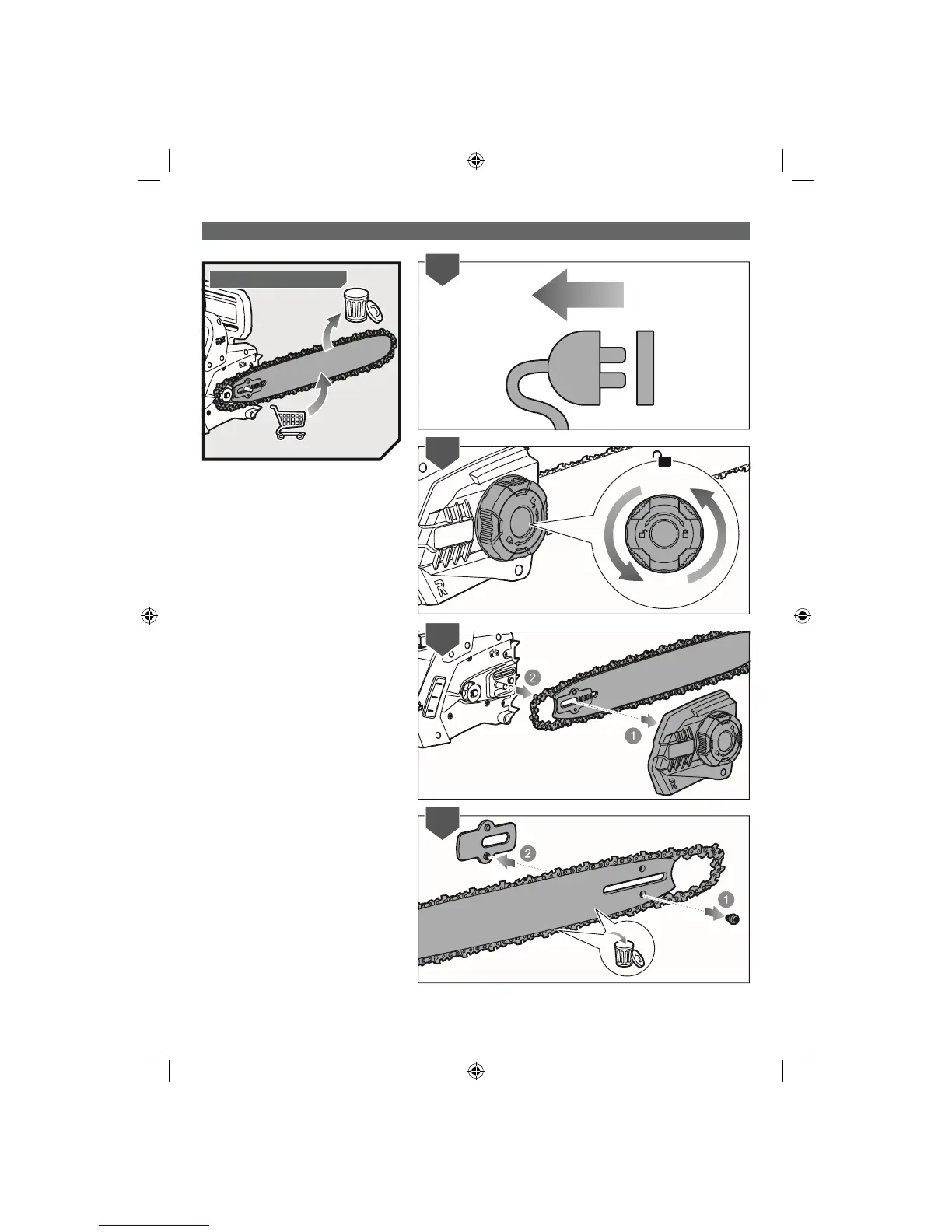

Chain replacement
1
2
3
4
1. Disconnect the product from the power
supply. Wear protective gloves.
2. Unlock the chain tension/guide
bar locking knob by turning it
counterclockwise until the sprocket
cover comes loose.
3. Remove the sprocket cover. Remove the
bar and saw chain from the product.
4. Remove the screw holding the guide bar
to the chain tension assembly. Dispose
the used bar and saw chain properly.

Ryobi RCS2340B Specifications

General

Power source	AC
Idle speed	- RPM
Chain speed	16 m/s
Blade length	400 mm
Product color	Black, Green
Ergonomic handle	Yes
Oil tank capacity	0.15 L

Weight and Dimensions

Weight	4800 g
