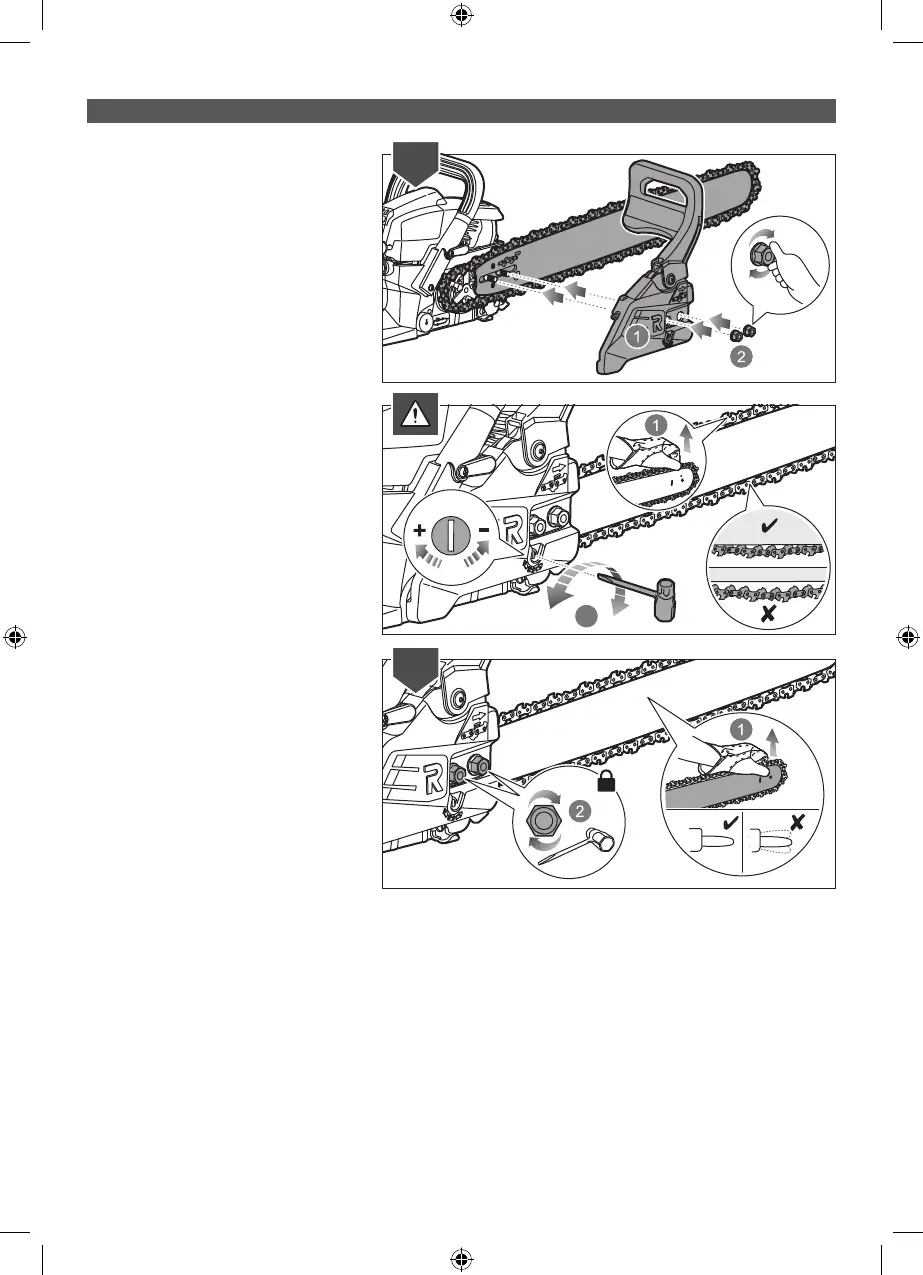

5. Attach the bar to the chain saw and loop
the chain around the drive sprocket.
Replace the chain cover and bar
mounting nuts. Finger-tighten the bar
mounting nuts. The bar must be free to
move for chain tension adjustment.
WARNING: Adjust the chain tension. Refer
to the “Adjusting chain tension” section.
6. Hold the tip of the guide bar up and
tighten the bar mounting nuts securely to
11 ~ 13 Nm (Turn the nut 180° or 3 flats
past finger tight). Do not overtighten.
