ASSEMBLY
Warning! Do not connect the machine to the mains socket before it is completely assembled.

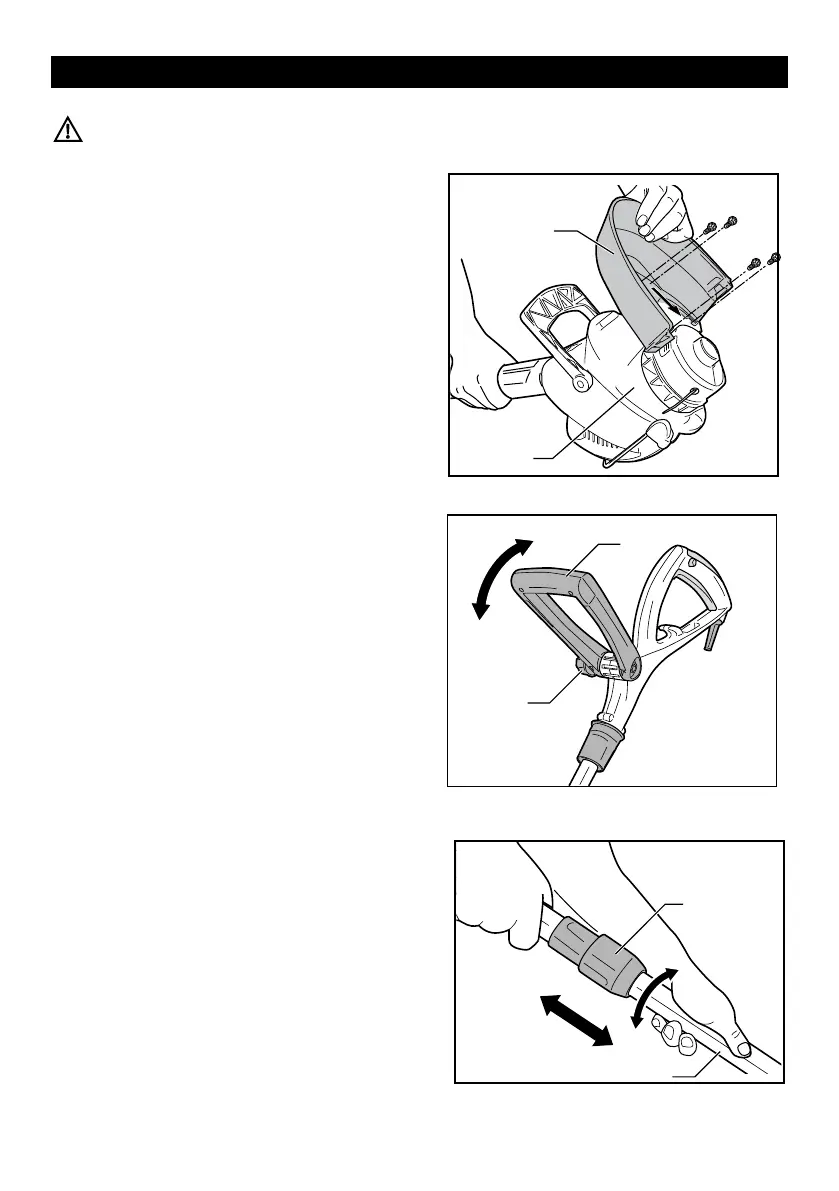

FITTING GUARD
(Fig.1)
1. Put the safety guard (13) in place.
2. Secure the safety guard onto the motor housing (10)
with screws provided.
ADJUSTING AUXILIARY HANDLE (Fig. 2)
1. Loosen the auxiliary handle locking knob (6),
and adjust the angle of the auxiliary handle.
2. Turn the knob until the handle is securely
tightened
Note:
For trimming, adjust the handle upward. For
edging adjust it downward.
ADJUST HEIGHT (Fig. 3)
1. Loosen the knob for height adjustment (8), and
slide the telescopic tube (9) to desired position.
2. Tighten the knob
7
Fig. 2
5
6
Fig. 3
8
9
Fig. 1
13
10
