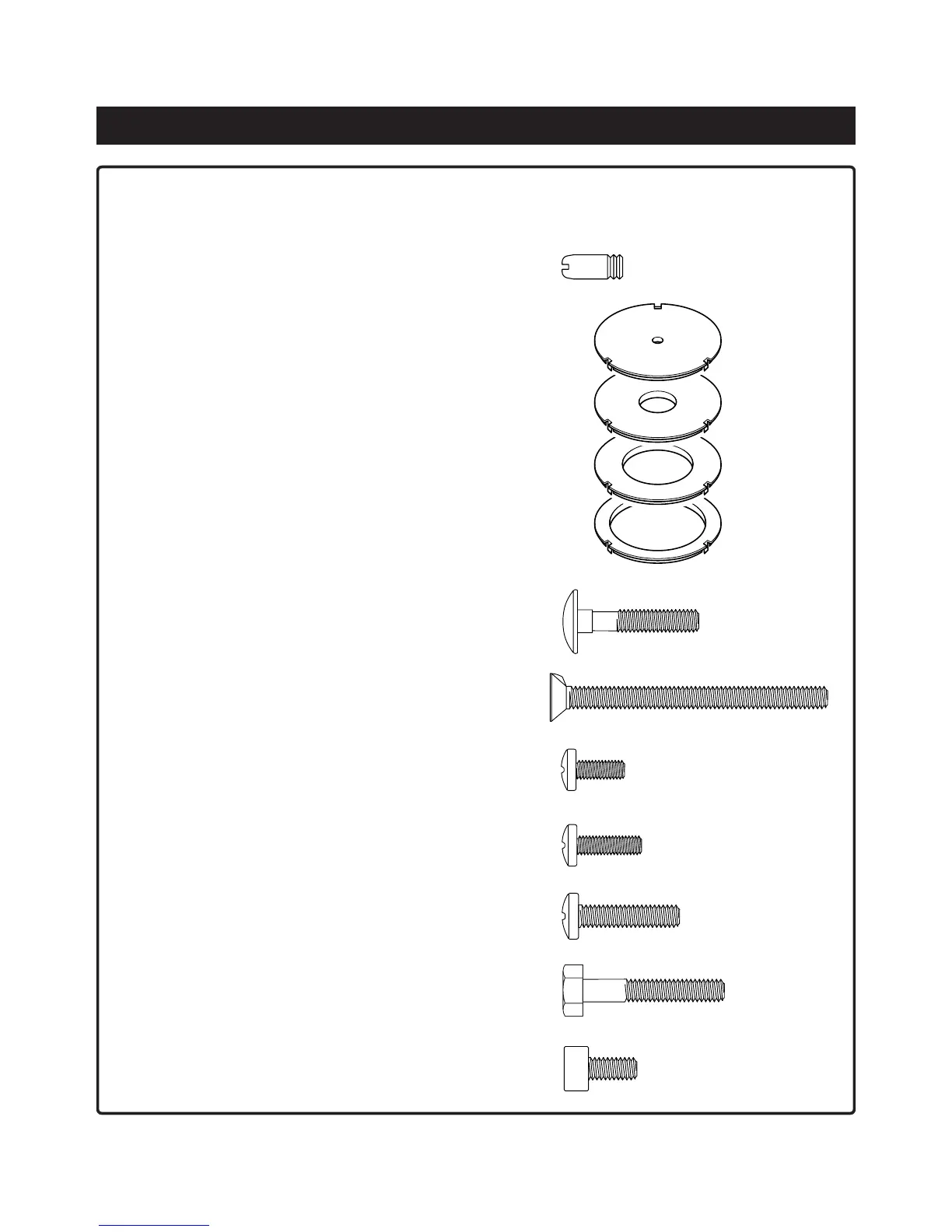

PACKAGE CONTENTS AND HARDWARE LEGEND
8
Note: Hardware parts shown (screws, nuts, washers) are actual size.
ITEM DESCRIPTION QTY.
V Locating pin 3 V
W Tabletop insert 1 W
X Tabletop insert, 1 X
small hole
Y Tabletop insert, 1
Y
medium hole
Z Tabletop insert, 1
Z
large hole
AA Carriage bolt 1
AA
(M 6 x 30)
AB Countersink screw 4
AB
with nose (M 6 x 65)
AC Self tapping pan head screw 21
AC
(5 x 12)
AD Pan head screw 18
AD
(M 5 x 16)
AE Pan head screw 2
AE
(M 6 x 25)
AF Hex head bolt 3 AF
(M 6 x 35)
AH Allen screw (M 6 x 10) 1
AH
