RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS10

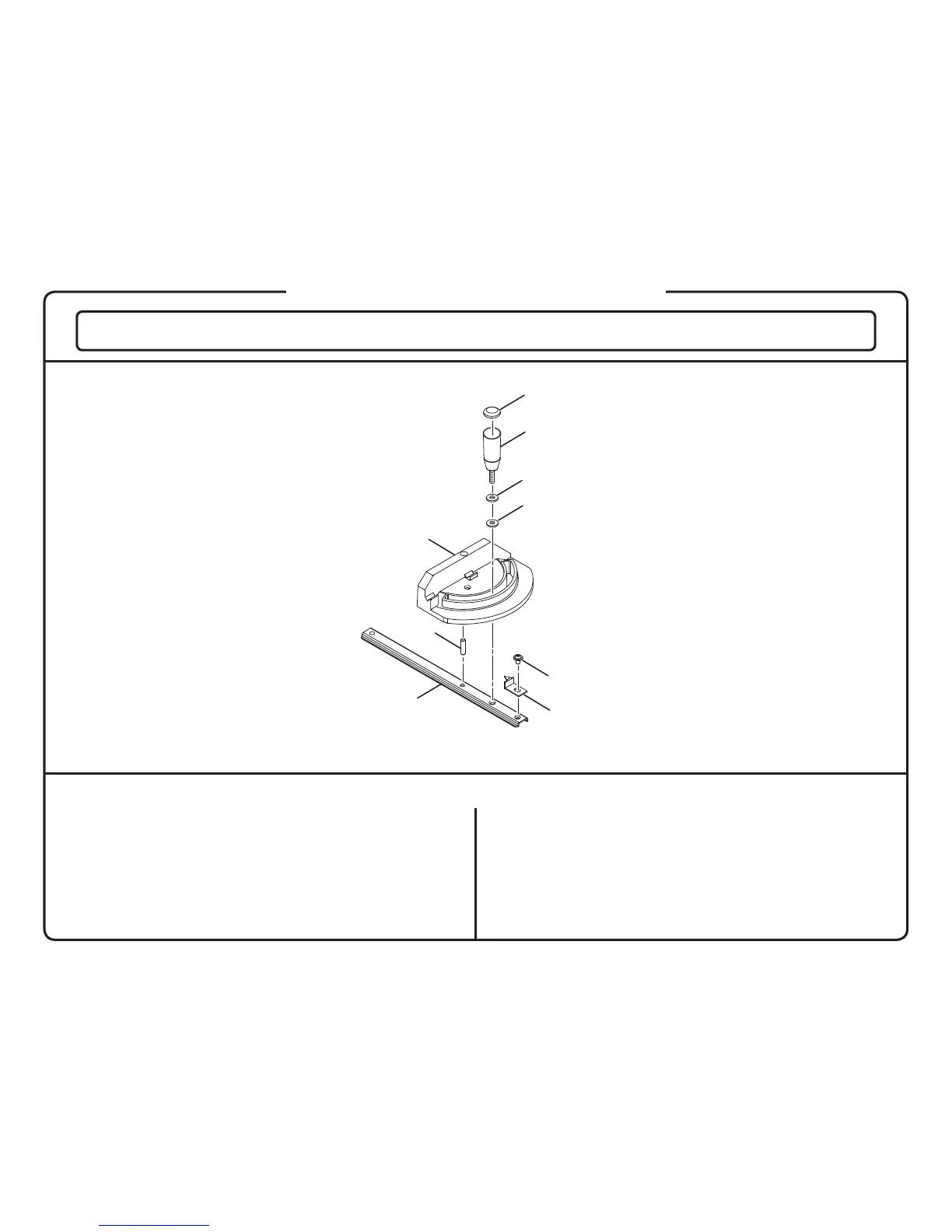

FIGURE E
1
2
3
4
6
7
8
9
5
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your 10 in.
TABLE SAW or when ordering parts.
PARTS LIST FOR FIGURE E
1 089015001009 Miter Gauge Rod ......................................... 1
2 080015001563 Pointer ......................................................... 1
3 410332701 Screw (3/16 in. x 1/4 in.) .............................. 1
4 089015001010 Pin ................................................................ 1
5 089037007086 Miter Gauge ................................................. 1
6 080015001475 Washer (D6.5 x D16 x 2t) ............................. 1
7 412012003 Washer (D6.5 x D16 x 2t) ............................. 1
8 089037007087 Miter Gauge Knob ....................................... 1
9 0131010237 Miter Gauge Cap ......................................... 1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
