Ryobi RTS10 Repair Sheet

8

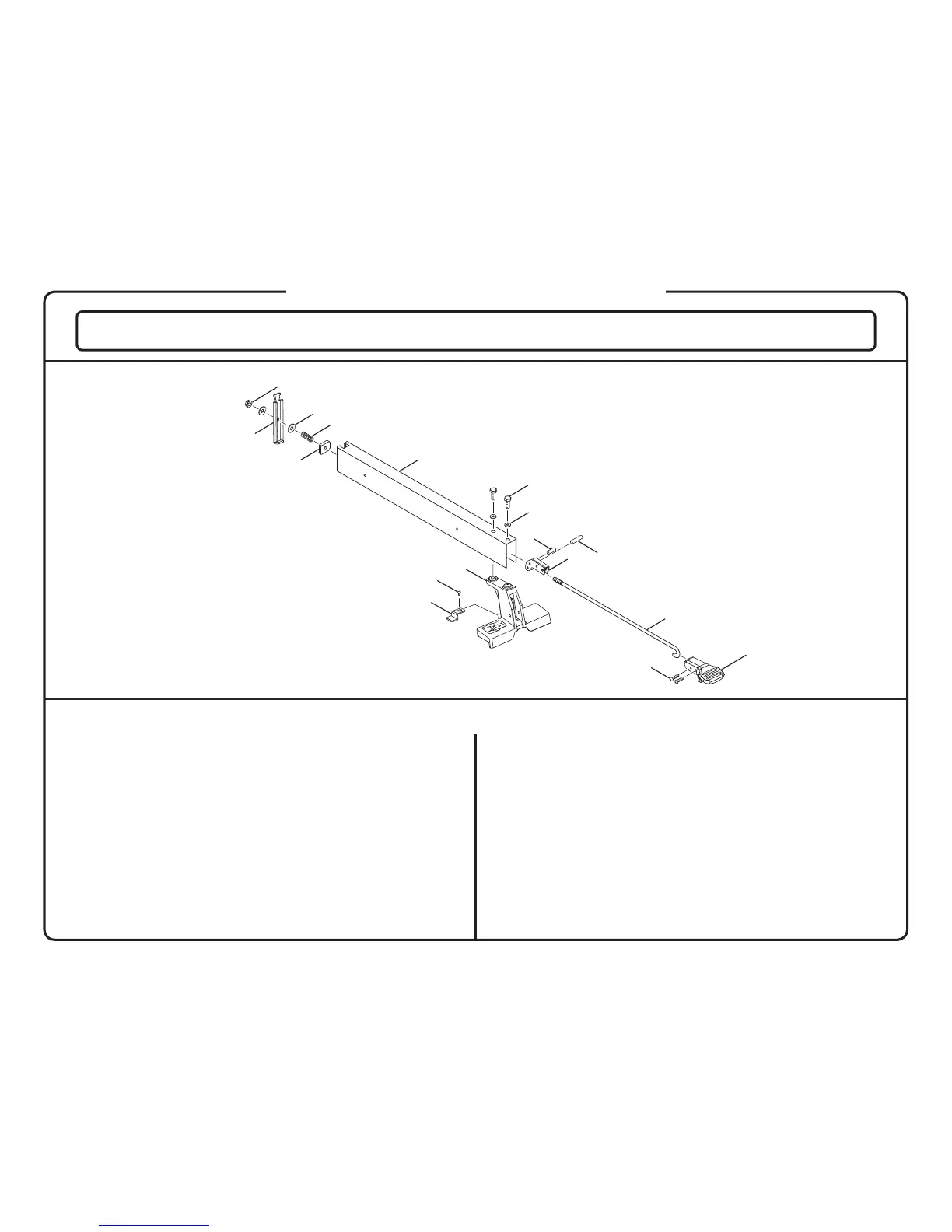

RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS10
FIGURE D
1
3
5
6
10
11
9
4
2
8
7
12
14
13
15
16
17
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your 10 in.
TABLE SAW or when ordering parts.
PARTS LIST FOR FIGURE D
1 089037007080 Locking Lever ..................................................1
2 089037007081 Screw (M8 x 5/8 in.) .........................................2
3 089037007082 Lock Rod .........................................................1
4 089037007083 Handle Bar .......................................................1
5 414011028 Spring Pin (D4 x 10.5 mm) ...............................1
6 414011003 Spring Pin (D4 x 20 mm) ..................................1
7 0101140305 Pointer .............................................................1
8 410542702 Screw (5/32-32 x 1/4 in.) .................................1
9 089015001008 Front Block ......................................................1
10 412042702 Lock Washer (1/4-20) .......................................2
11 410012701 Screw (1/4-20 x 1/2 in, Hex Hd.) .....................2
12 089037007084 Fence ...............................................................1
13 0101010211 Block ................................................................1
14 0101010916 Spring ..............................................................1
15 412012030 Washer (D6.5 x D16 x 1.5t) ..............................2
16 089037007085 Rear Clamp ......................................................1
17 411072702 Lock Nut (1/4-20) .............................................1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
