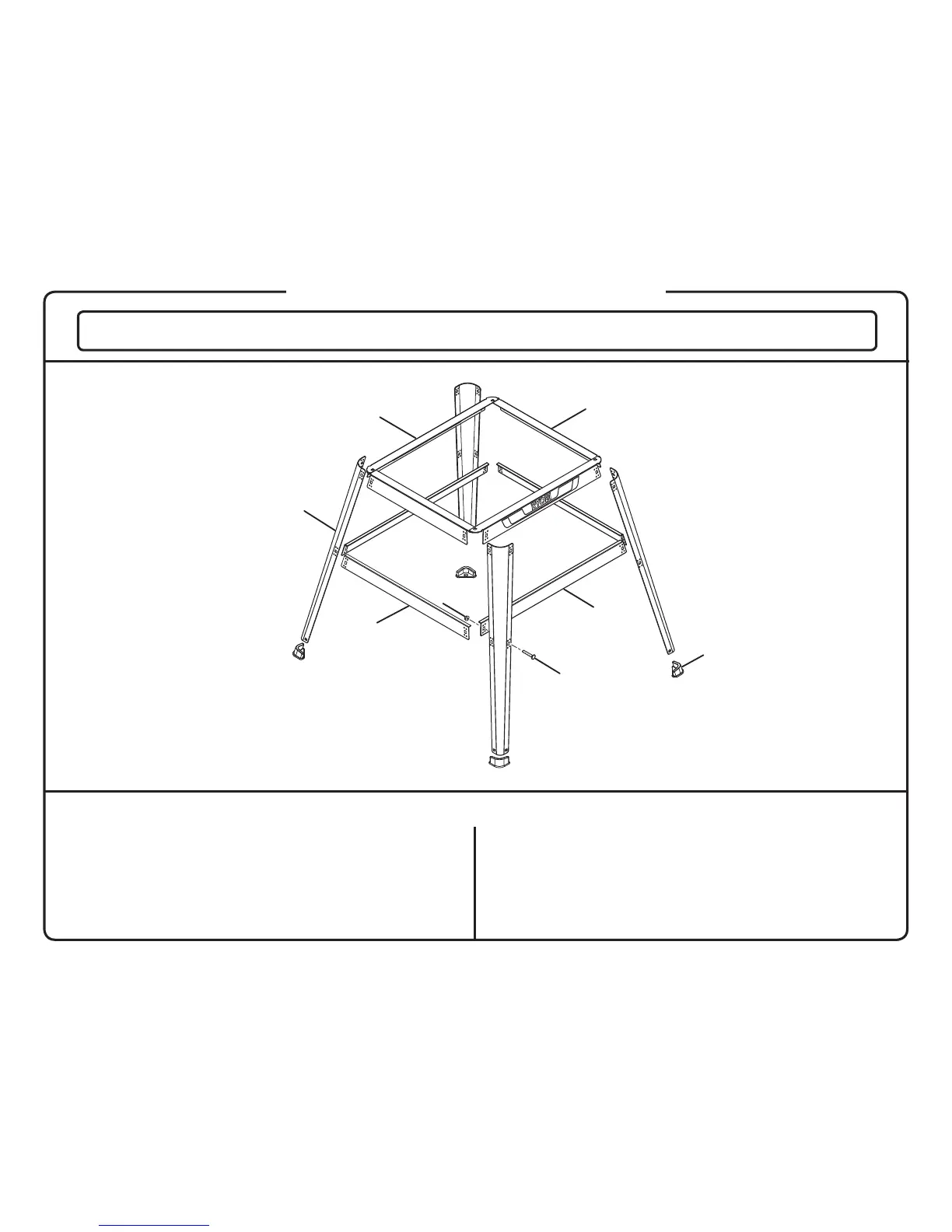

RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS10
FIGURE C
8
4
2
3
5
6
7
1
PARTS LIST FOR FIGURE C
1 089037007093 Lower Side Brace ............................................2
2 089037007089 Leg ...................................................................4
3 089037007088 Upper Brace ....................................................2
4 089037007090 Upper Side Brace ............................................2
5 089037007094 Foot ..................................................................4
6 089037007091 Lower Brace .....................................................2
7 089037007092 Bolt (1/4-20 x 12 mm) ....................................16
8 411062701 Nut (1/4-20 x 10 mm) .................................... 16
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your 10 in.
TABLE SAW or when ordering parts.
