PRODUCT SPECIFICATIONS
Bar length:
RY10521A ............................................... 20 in.
RY10519A ............................................... 18 in.
Chain pitch ............................................. .325 in.
Chain gauge ........................................... .050 in.
Chain type ............................................ Standard
Drive sprocket ......................................... 7-tooth
Engine displacement ................................... 46cc
Idle engine speed ........2,600-3,400 r/min. (RPM)
Fuel tank capacity .................................. 19.4 oz.
Chain lubricant tank capacity ................. 11.8 oz.
Weight - No bar, chain, fuel or lubricant ... 11 lbs.
Fig. 1a
FRONT HAND GUARD/
CHAIN BRAKE
FRONT
HANDLE
CYLINDER
COVER
TRIGGER
RELEASE
CHAIN OIL
CAP
SAFE-T-TIP
®
PRIMER
BULB
CHOKE
LEVER

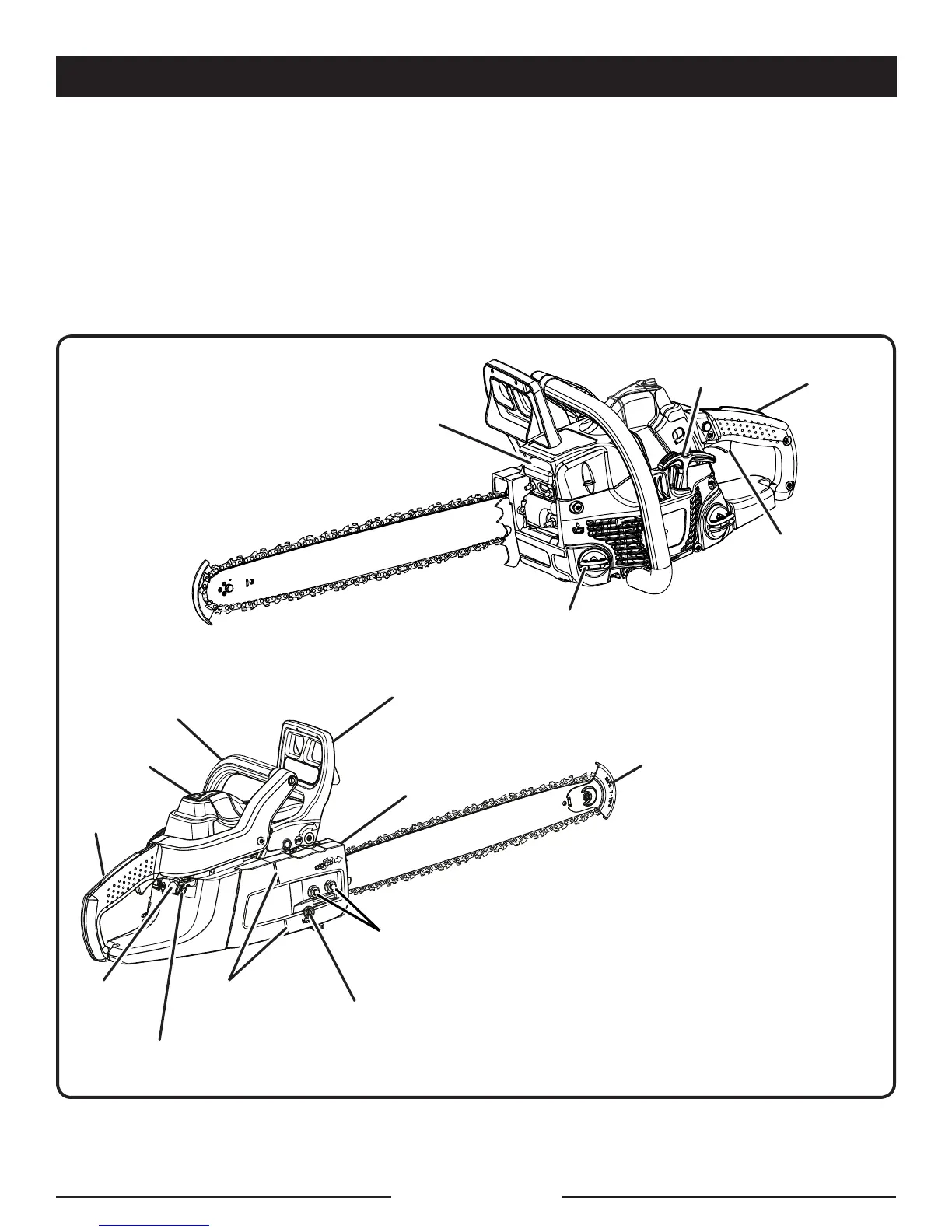

FEATURES
BAR
MOUNTING
NUTS
MUFFLER
STARTER GRIP
AND ROPE
THROTTLE
TRIGGER
REAR
HANDLE
CHAIN TENSIONING
SCREW
CLUTCH COVER
FELLING
DIRECTION
LINE
