16 − English
TABLE
EXTENSION
BASE
SAW VIEWED
FROM BOTTOM
TABLE
EXTENSION
SCREW
ASSEMBLY

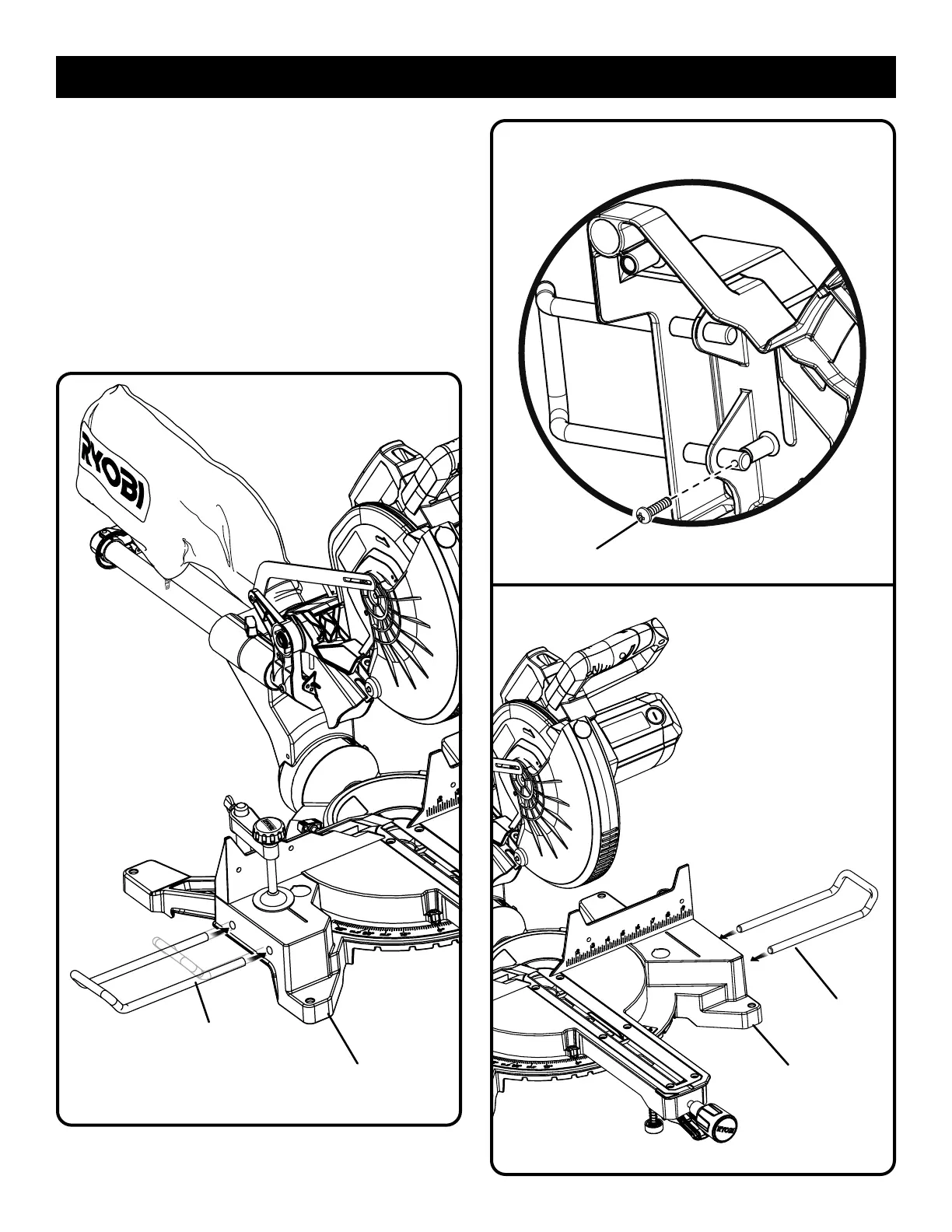

TABLE EXTENSIONS
See Figures 12 - 14.
Table extensions have been provided for both the left and
the right side of the saw.
To install table extensions:
Remove the screw from the bottom of the base.
Insert the ends of extension into the holes in the sides of
the base.
Reinstall the screw through the extension and secure into
the base.
Repeat for other extension.
Fig. 13
Fig. 12
Fig. 14
TABLE
EXTENSION
BASE
