Windshield Replacement
Your vehicle is equipped with an acoustic
windshield. If you ever have to have your
windshield replaced be sure to get an acoustic
windshield so you will continue to have the benefits
an acoustic windshield can provide.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. See Scheduled Maintenance
on page 450.
Allowing the wiper blade arm to touch the
windshield when no wiper blade is installed could
damage the windshield. Any damage that
occurs would not be covered by your warranty.
Do not allow the wiper blade arm to touch
the windshield.
1. To remove the old wiper blades, lift the wiper
arm until it locks into a vertical position.

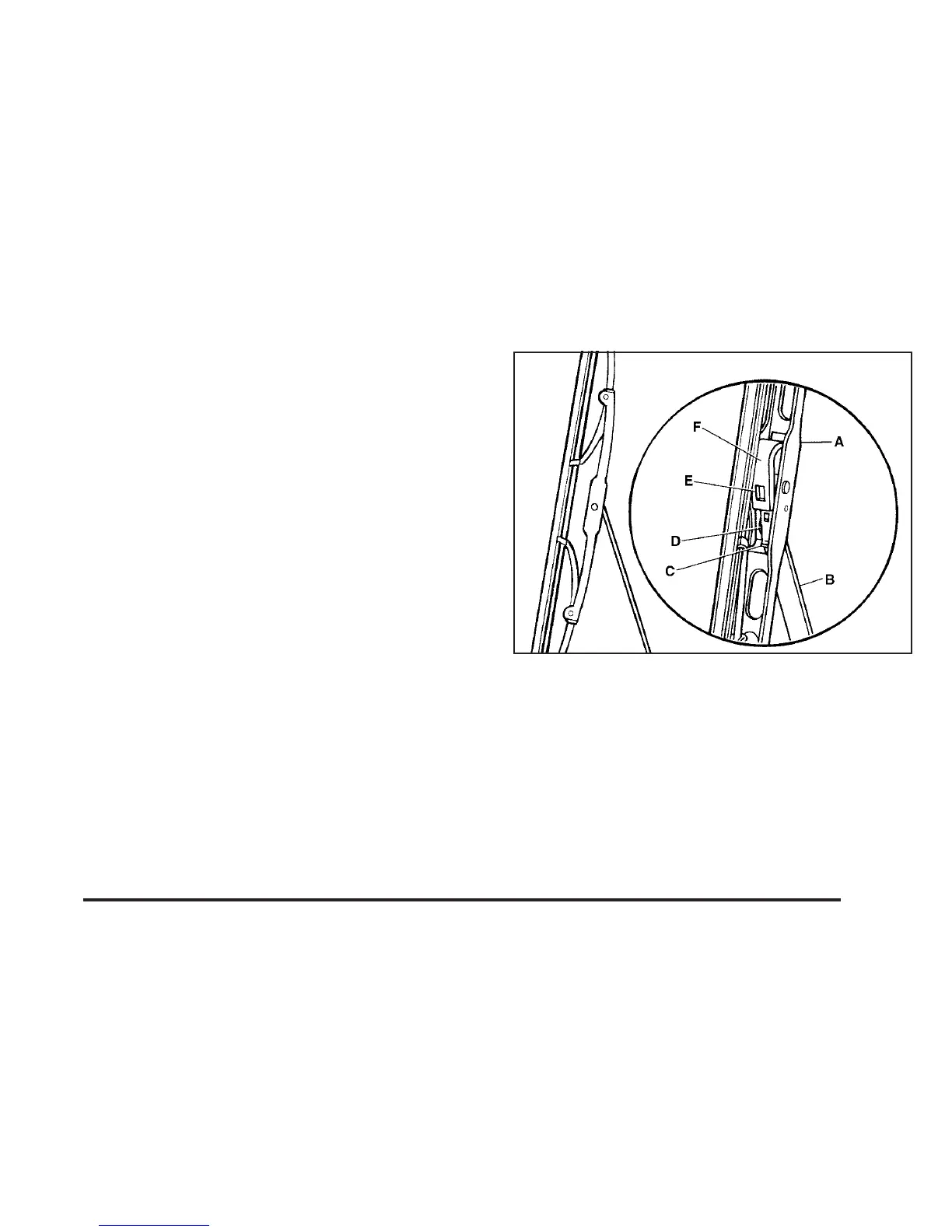

A. Blade Assembly
B. Arm Assembly
C. Locking Tab
D. Blade Pivot
E. Hook Slot
F. Arm Hook
2. Press down on the blade assembly pivot
locking tab. Pull down on the blade
assembly to release it from the wiper
arm hook.
377
