8mm nut driver Phillips screwdriver
6766

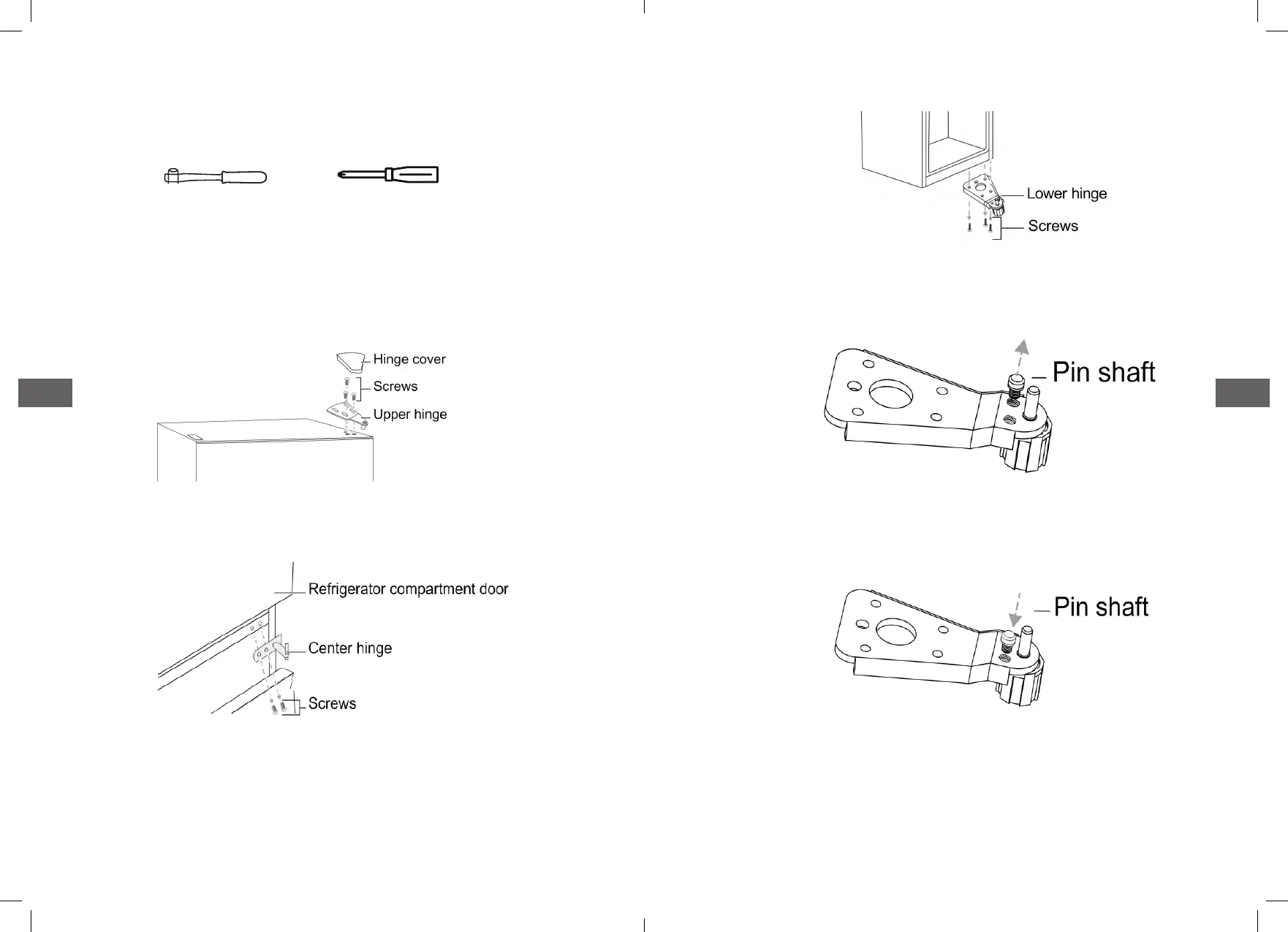

1. Make sure that your refrigerator is unplugge.
2.Pry the hinge cover up and off, remove the three screws that
secure the upper hinge to the door, then remove the hinge.
3. Remove the freezer compartment door from the cabinet
4. Remove the two screws that secure the center hinge.
5. Remove the freezer compartment door.
6. Remove the screws that secure the lower hinge to the rig side
of the cabinet, then remove the hinge�
You need the following tools to reverse the door:
7�� Remove the washer and nut that secure the pin shaft to
the right hole on the lower hinge, then remove the shaft.
8�� Insert the pin shaft into the left hole on the lower hinge,
then secure the shaft with the washer and nut�
9�� Install the lower hinge on the left side of the cabinet.
