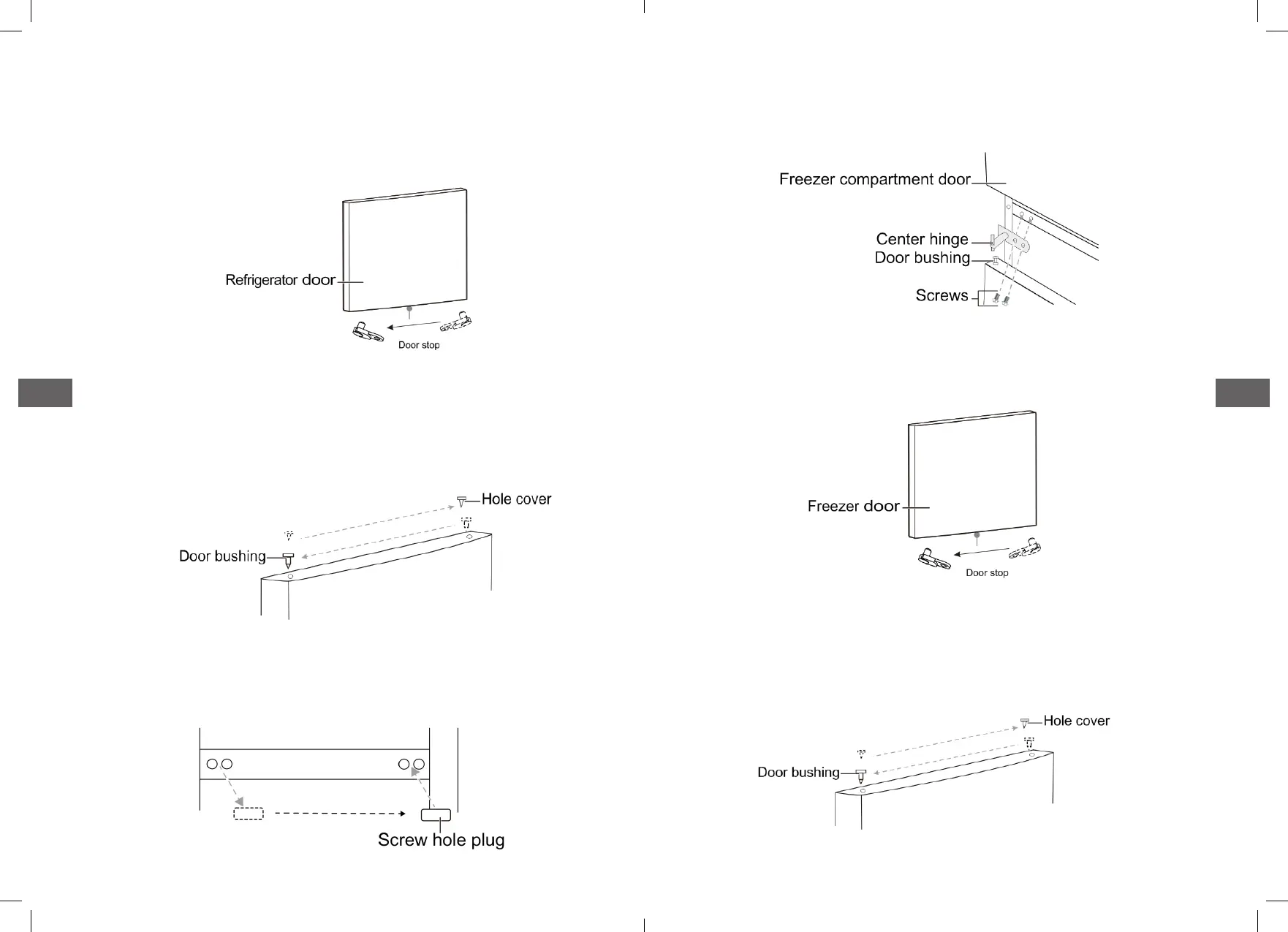

13.Remove the center hinge screw hole plug on the left side of
the cabinet, then install in the screw holes on the right side of
the cabinet.
15� Remove the screw that secures the door stop from the bottom
right of the freezer compartment door, then remove the door stop
and install to the bottom left side�
16. Install the Freezer compartment door�
17. Move the door bushing from the top right side of the freezer
door to the top left side of the door· And move the left hole
cover to the right side.
10.Remove the screw that secures the door stop from the bottom
right of the refrigerator compartment door, then remove the door
stop and install to the bottom left side�
11. Install the refrigerator compartment door�
12. Move the door bushing from the top right side of the freezer
door to the top left side of the door· And move the left hole cover
to the right side.
14.Install the center hinge to the left side with the two screws
you removed previously�
