Installation

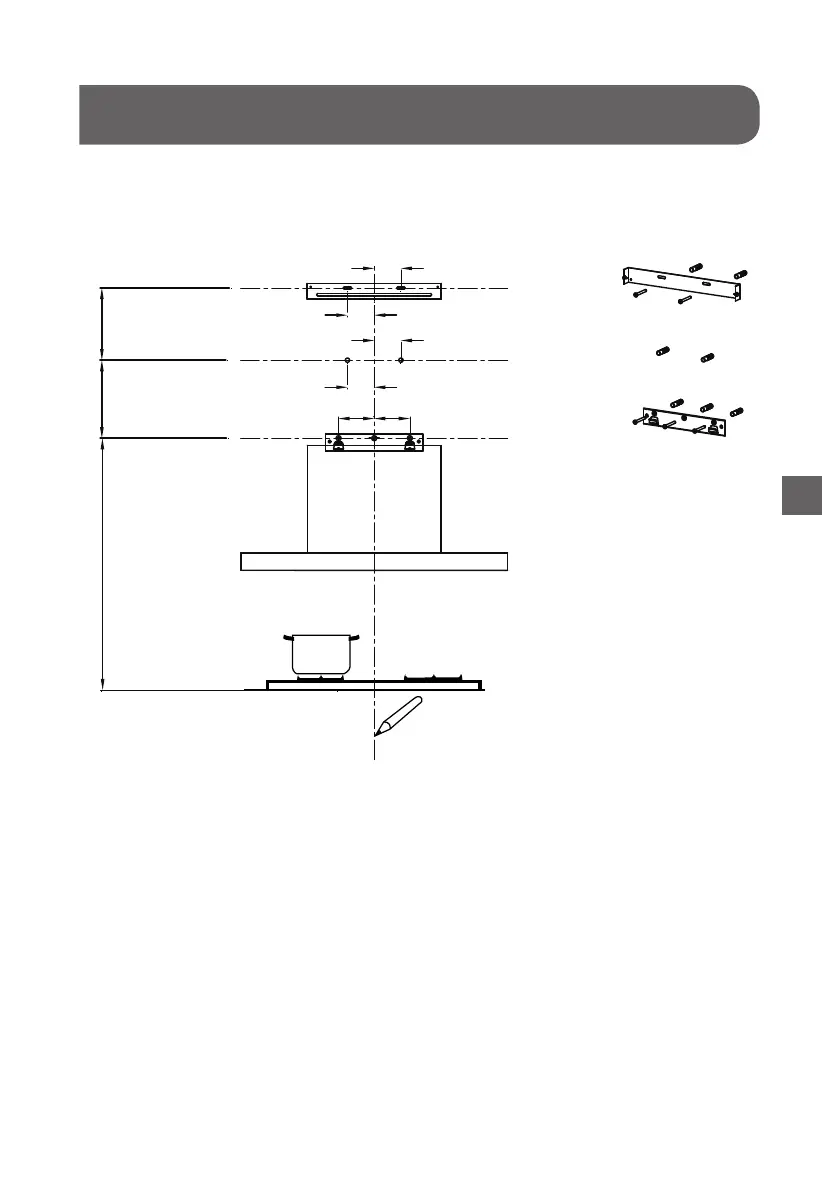

WALL DRILLING AND BRACKET FIXING
Vertical reference line
As a rst step, proceed with the following lines drawings:
• A vertical line up to the ceiling or up to the upper limit, at the
center of the area in which the hood is to be tted�
• A horizontal line A at 950 – 1050 mm above the cooker top�
• A horizontal line B at a 229 mm above the horizontal line A�
• A horizontal line C at a 50-450 mm above the horizontal line
B�
29
GB
(1)
80
80
60
60
60
60
950-1050
A
B
C
(2)
(3)
229
50-450
