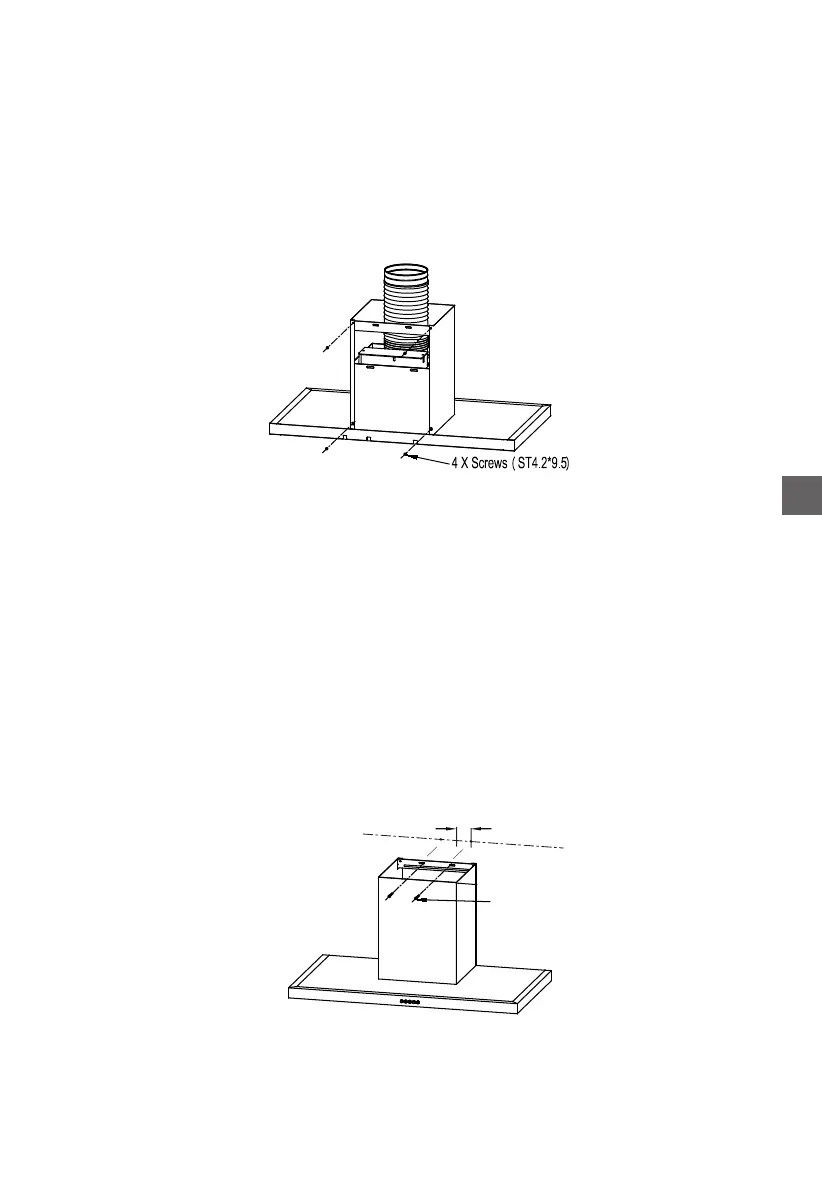

Lower decorative chimney (Fig. 1)
• Connect the exhaust pipe on the hood body
• Assemble lower chimney on hood body with 2 screws 12,
• Fix bracket 21 on the chimney with 2 screws 12�
Figure 1
Figure 2
Hook the hood unit
• Hook the hood unit to the bracket 20 and level the hood
properly�
• Check if the holes of bracket 21 are precisely at points (2) on
line B otherwise mark new points directly from the bracket�
• Remove the hood, drill holes and insert wall plugs�
• Reinstall the hood and x rmly with 2 screws 5x50 on bracket
21�
31
GB
B
2 x vis 5x50
(2)
