Sabiana Carisma CRC-ECM User Manual

WM - KNX
recessed thermostat
UP - KNX power unit
WM - KNX
with rectangular plate
WM - KNX
with square plate
The KNX bus system is a building automation standard for controlling, managing and monitoring a wide range of
products for:
- heating, cooling, ventilation
- lighting
- alarm systems
- audio and video systems
- electricity and gas
Since 2016, Sabiana is a certified member of the KNX association
and the certified products can be added to this system in compliance
with the tests carried out at KNX laboratories.
KNX devices
The Sabiana WM - KNX room thermostat controls and adjusts the temperature of a room or area in a building. In
combination with one or several UP - KNX power units, the thermostat is able to control the operation of terminal
units such as fan coils. The appliance consists of an LCD display with adjustable backlight and a sensor for measuring
the room temperature.
WM - KNX is suitable for installation in a recessed wall box.
KNX bus system
• Fan absorption • Water pressure drop • Sound power
• Cooling total emission at the following conditions:
- Water temperature +7°C E.W.T. +12°C L.W.T.
- Entering air temperature +27°C dry bulb +19°C wet bulb
• Cooling sensible emission at the following conditions:
- Water temperature +7°C E.W.T. +12°C L.W.T.
- Entering air temperature +27°C dry bulb +19°C wet bulb
• Heating emission (2 pipe units) at the following conditions:
- Water temperature +45°C E.W.T. +40°C L.W.T.
- Entering air temperature +20°C
• Heating emission (4 pipe units) at the following conditions:
- Water temperature +65°C E.W.T. +55°C L.W.T.
- Entering air temperature +20°C
Carisma CRC-ECM/CRT-ECM/CRS-ECM
Sabiana take part to the Eurovent program of fan coil
performance certification. The official figures are published
in the web site www.eurovent-certification.com.
The tested performances are:

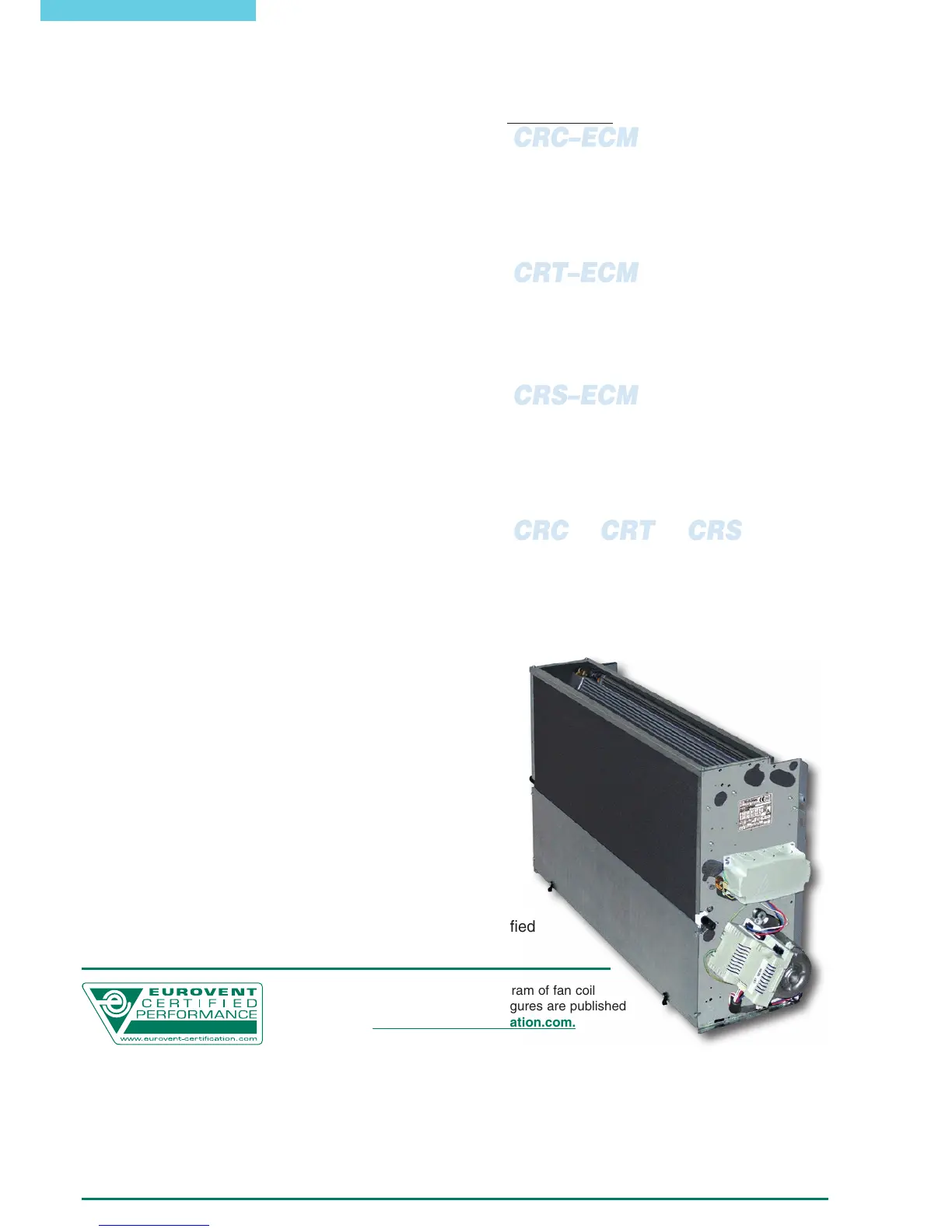

Carisma fan coils combine a beautiful design with very
interesting performances in terms of sound level and
energy consumption.
Carisma ECM models are available in five different
models, for wall and ceiling installation, with casing and
concealed.
All Sabiana fan coils take part to the Eurovent program
of fan coil performance certification.
The ECM range makes use of the excellent experience
gained with the Cassette fan coils with inverter board,
first in the world in production since 2009, and which
have had great success on all markets.
The innovative brushless and sensorless type synchro-
nous electronic motor with permanent magnets, is
controlled by an inverter board designed and developed
in Italy. The board is mounted on the unit, closed to the
motor, without the need to be cooled down by the air
flow.
The air flow rate can be varied in continuous by means
of a 1-10 V signal generated by Sabiana controls or by
independent control systems. The continuous air flow
control improves the acoustic comfort and allows a more
punctual reply to the variation of the thermal loads and
a greater stability of the requested ambient temperature.
The extreme efficiency, also at low speed, makes possible
a great reduction in electric consumption (less than 50%
in comparison to CRC, CRT and CRSO range motor) with
absorption values under normal operating conditions that
do not exceed 16 Watt for CRC−ECM models, do not
exceed 8 Watt for CRT−ECM models and do not exceed
50 Watt for CRS−ECM models on the entire range. The
excellent values of the CRC, CRT and CRSO range in terms
of sound levels have been maintained in all working
conditions, without any resonance phenomenon at any
frequency.
The full compliance with the Electromagnetic Compatibility
Directive and with the other severe Standards in force is certified
by an independent institute.
CONTENTS
• CRC–ECM version
• Construction Page 4
• Models Page 5
• Dimensions, Weight, Water content Page 6
• EUROVENT Certification Page 10
• Operation limits Page 13
• Emission tables Page 14
• Correction factors table Page 24
• Water pressure drop Page 25
• CRT–ECM version
• Construction Page 26
• Models Page 27
• Dimensions, Weight, Water content Page 28
• EUROVENT Certification Page 32
• Operation limits Page 34
• Emission tables Page 35
• Water pressure drop Page 43
• CRS–ECM version
• Construction features Page 44
• Dimensions, Weight, Water content Page 46
• EUROVENT Certification Page 48
• Main performance and technical characteristics Page 50
• Operation limits Page 51
• Emission tables Page 52
• Correction factors tables Page 58
• Water pressure drop Page 60
• CRC–ECM/CRT–ECM/CRS–ECM version
• Accessories Page 62
•
CRYSTALL electrostatic filter Page 83
• ECM configuration Page 84
• Electronic controls to be fitted Page 85
• Wall electronic controls Page 85
• Controls and units MB version Page 86
• KNX bus system Page 87
The descriptions and illustrations provided in this publication are not binding: Sabiana reserves the right,
whilst maintaining the essential characteristics of the types described and illustrated, to make,
at any time, without the requirement to promptly update this piece of literature, any changes that it considers
useful for the purpose of improvement or for any other manufacturing or commercial requirements.
87
CRC– ECM / CRT– ECM / CRS– ECM
CRC–ECM / CRT–ECM / CRS–ECM version
Carisma
