6
Recommended setting of the Clip Level Adjust: the
clip LED should blink intermittently. Regardless of
the Clip Level Adjust, setting Unity on the back panel
will maintain unity gain (no net gain or loss of signal
level).
When the back panel output is set to Line, the SOLO
acts as a preamplifier, and the Clip Level Adjust
knob becomes a gain control (see SL820 & SM820
Input Low/High Switch sections below).
SIGNAL LEVEL/TURBO INDICATOR
The LED ladder indicates the signal strength relative
to the SOLO's input level. Clip LED flashes indepen-
dently to indicate when the SOLO is in Turbo Setup
mode.
FILTER ACTIVITY
When one of the units constant "Q" filters is activat-
ed, the corresponding LED lights. A blinking LED
indicates the filter that was most recently activated.
All filter LEDs cycle to indicate Turbo Mode is about
to disengage.
FILTER WIDTH SWITCH
Switch to narrow 1/10-octave filters for music appli-
cations or to wider 1/5-octave filters for spoken word
applications. The change takes effect only on power
up. Selecting a new width has no effect unless you
power down and then power up again.
12 VOLT DC ADAPTOR
The FBX external power supply (single unit power
supply; model # SPSPOWR) is included with the
unit. Use of any other power supplies may cause
permanent damage to the unit and WILL VOID THE
WARRANTY.
SL820 BACK PANEL ONLY

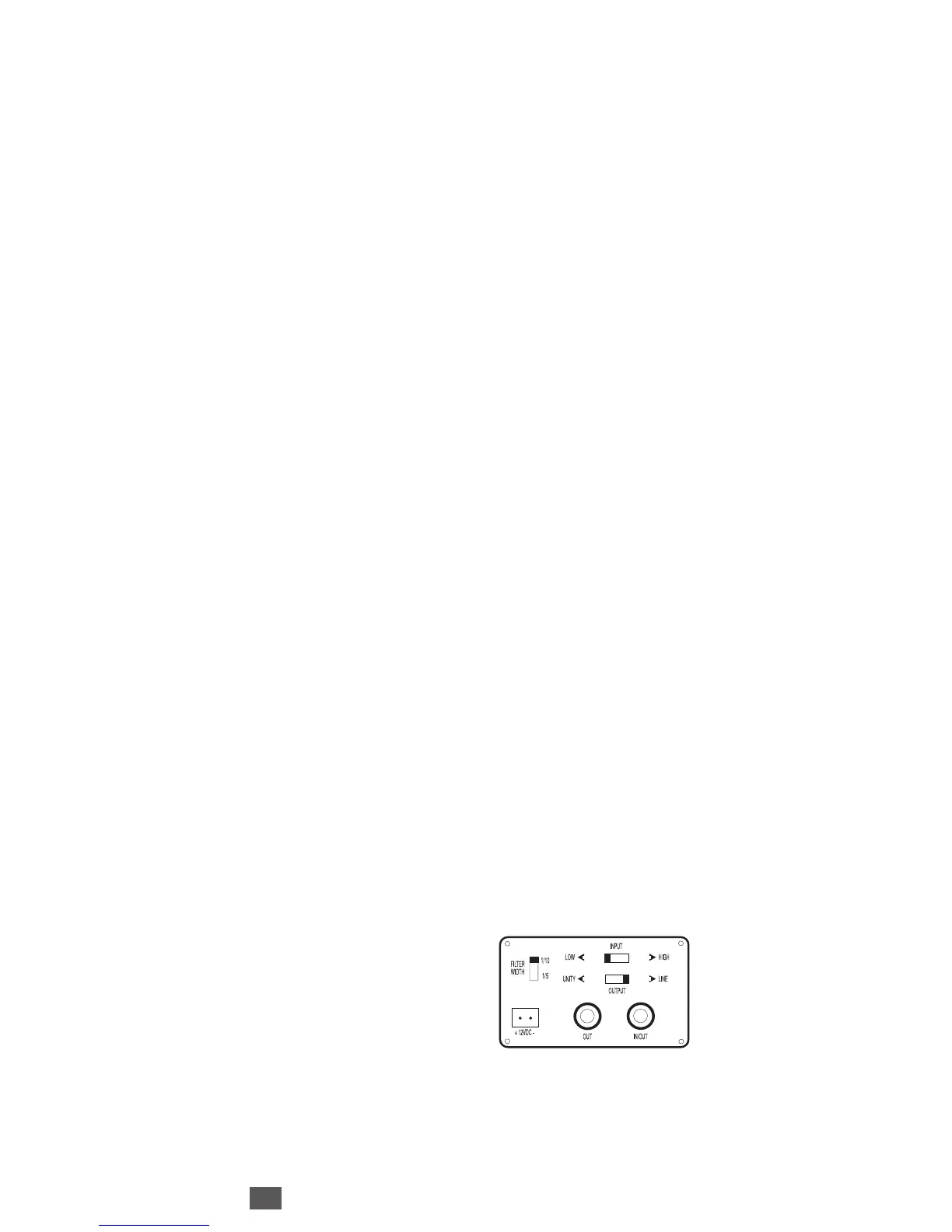

INPUT LOW/HIGH SWITCH
Switch to Low for instru-
ment or (high impedance
microphone) IN. Use with
low level inputs such as
piezo mic pick ups this provides a 30 dB boost in
the FBX's input gain structure. Switch to High for
insert or line IN: use with high level output instru-
ments and signal processors.
