8
NOTE: Use a TRS
connector at both
ends of cable.
NOTE: Use a
TRS connector
only at the mixer
insert point.
APPLICATIONS

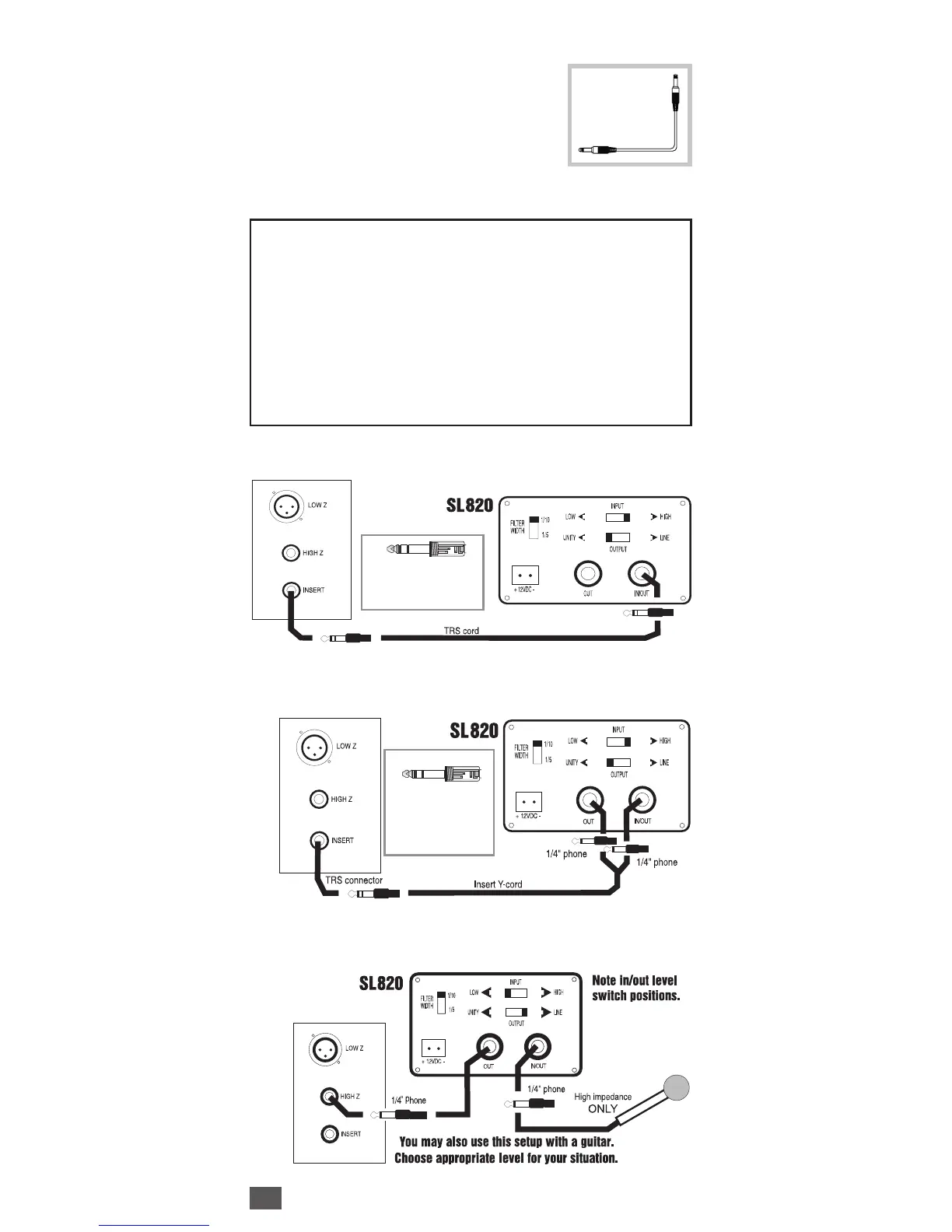

SL820: You can use the SL820 with
acoustic/electric guitars and guitar
amplifiers, mixer insert points, pow-
ered mixer patch points and high
impedance mics. Use the following
wiring diagrams as guides for setup:
NOTE: For Configurations 1-4, the output control on the
back panel of the SL820 may actually be set to either
Unity or Line. In the Unity setting the output level will
equal the input level, and, since the input level to the
SL820 in such a setup is already line level, the output will
be line level as well. When the output setting is switched
to Line, the front panel knob becomes a gain control,
and it is possible to add additional gain to your signal
path, if needed. Care should be taken in this situation
to avoid overdriving your mixer channel.
SL820
1. Mixer Channel Insert with TRS/TRS Cable
2. Mixer Channel Insert w/ Insert "Y" Cable
3. Mixer Channel HI Impedance Mic on Line Input
To Next Page
