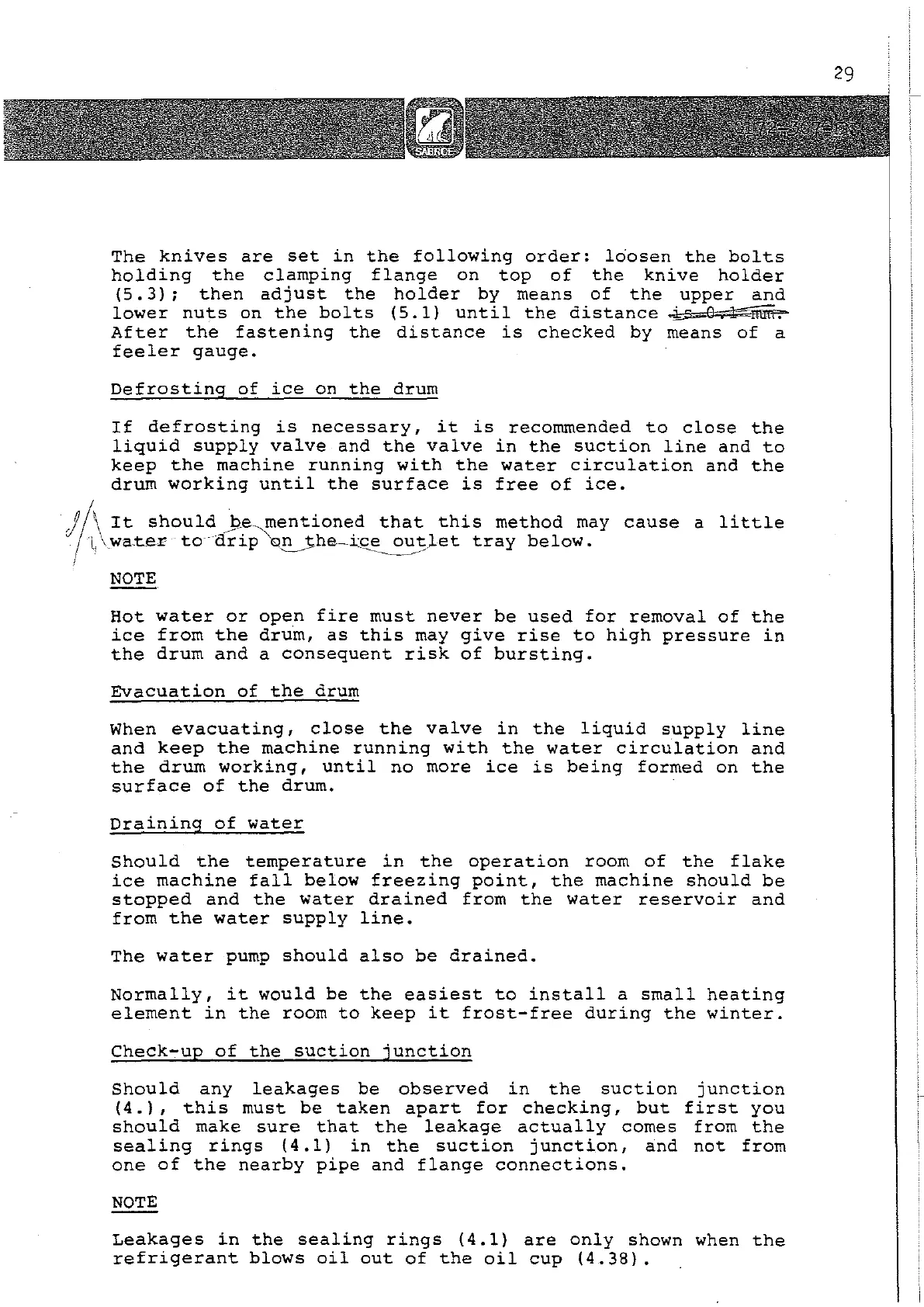

The knives are set in the following order: loosen the bolts
holding the clamping flange on top of the knive holder
(5.3); then adjust the holder by means of the upper and
lower nuts on the bol ts (5.1) until the distance -:kS O.~
Af ter the fastening the distance is checked by means of a
feeler gauge.
Defrosting of ice on the drum
If defrosting is necessary, it is recommended to close the
liquid supply valve and the valve in the suction line and to
keep the machine running with the water circulation and the
drum working until the surfaee is free of ice.
J /\ It should y~ mentioned that this method may cause a li ttle
Il \wa_ter to dr~p'\,!l_the~~~~~let tray below.
NOTE
Hot water or open fire must never be used for removal of the
ice from the drum, as this may give rise to high pres sure in
the drum and a consequent risk of bursting.
Evacuation of the drum
When evacuating, close the valve in the liquid supply line
and keep the machine running with the water circulation and
the drum working, until no more ice is being formed on the
surface of the drum.
Draining of water
Should the temperature in the operation room of the flake
ice machine fall below freezing point, the machine should be
stopped and the water drained from the water reservoir and
from the water supply line.
The water pump should also be drained.
Normally, it would be the easiest to install a small heating
element in the room to keep it frost-free during the winter.
Check-up of the suction junction
Should any leakages be observed in the suction junction
(4.), this must be taken apart for checking, but first you
should make sure that the leakage actually comes from the
sealing rings (4.1) in the suction junction, and not from
one of the nearby pipe and flange connections.
NOTE
Leakages in the sealing rings (4.1) are only shown when the
refrigerant blows oil out of the oil cup (4.38).
29
