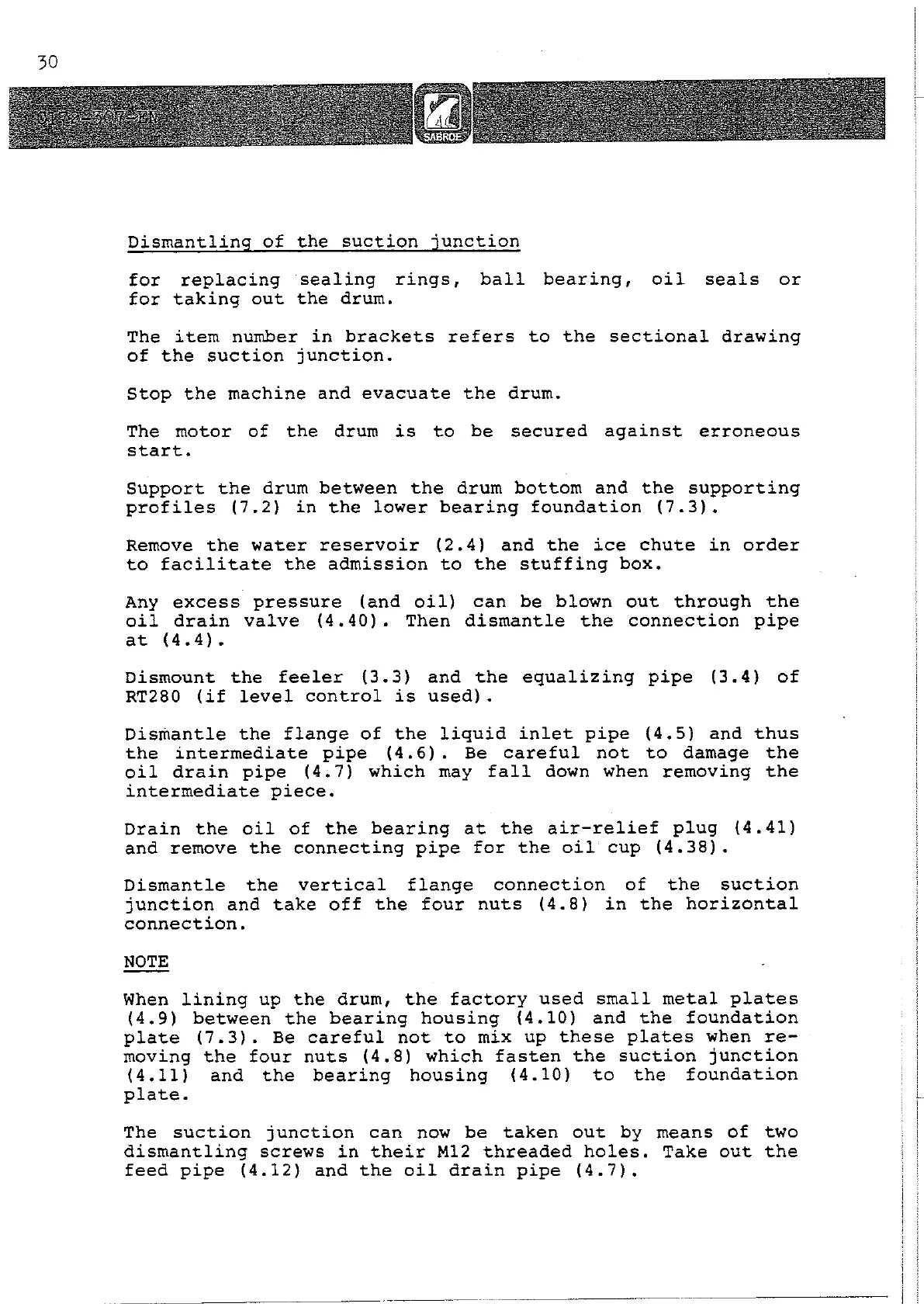

30
Dismant1ing of the suction junction
for replacing sealing rings, ball bearing , oil seals or
for taking out the drum.
The item nurnber in braekets refers to the sectional drawing
of the suction junetion.
Stop the machine and evacuate the drum.
The motor of the drum is to be secured against erroneous
start.
Support the drum between the drum bottom and the supporting
profiles (7.2) in the lower bearing foundation (7.3).
Remove the water reservoir (2.4) and the ice chute in order
to facilitate the admission to the stuffing box.
Any exces s pressure (and oil) ean be blown out through the
oil drain valve (4.40). Then dismantie the connection pipe
at (4.4).
Dismount the feeler (3.3) and the equalizing pipe (3.4) of
RT280 (if level control is used).
Dismantie the flange of the liquid inlet pipe (4.5) and thus
the intermediate pipe (4.6). Be careful not to damage the
oil drain pipe (4.7) which may fal1 down when removing the
intermediate piece.
Drain the oil of the bearing at the air-relief plug (4.41)
and remove the connecting pipe for the oil cup (4.38).
Dismantie the vertical flange connection of the suetion
junetion and take off the four nuts (4.8) in the horizontal
connection.
NOTE
When lining up the drum, the factory used small metal plates
(4.9) between the bearing housing (4.10) and the foundation
plate (7.3). Be carefu1 not to mix up these plates when re-
moving the four nuts (4.8) which fasten the suction junction
(4.11) and the bearing housing (4.10) to the foundation
plate.
The suction junction ean now be taken out by means of two
dismantling screws in their M12 threaded holes. Take out the
feed pipe (4.12) and the oil drain pipe (4.7).
