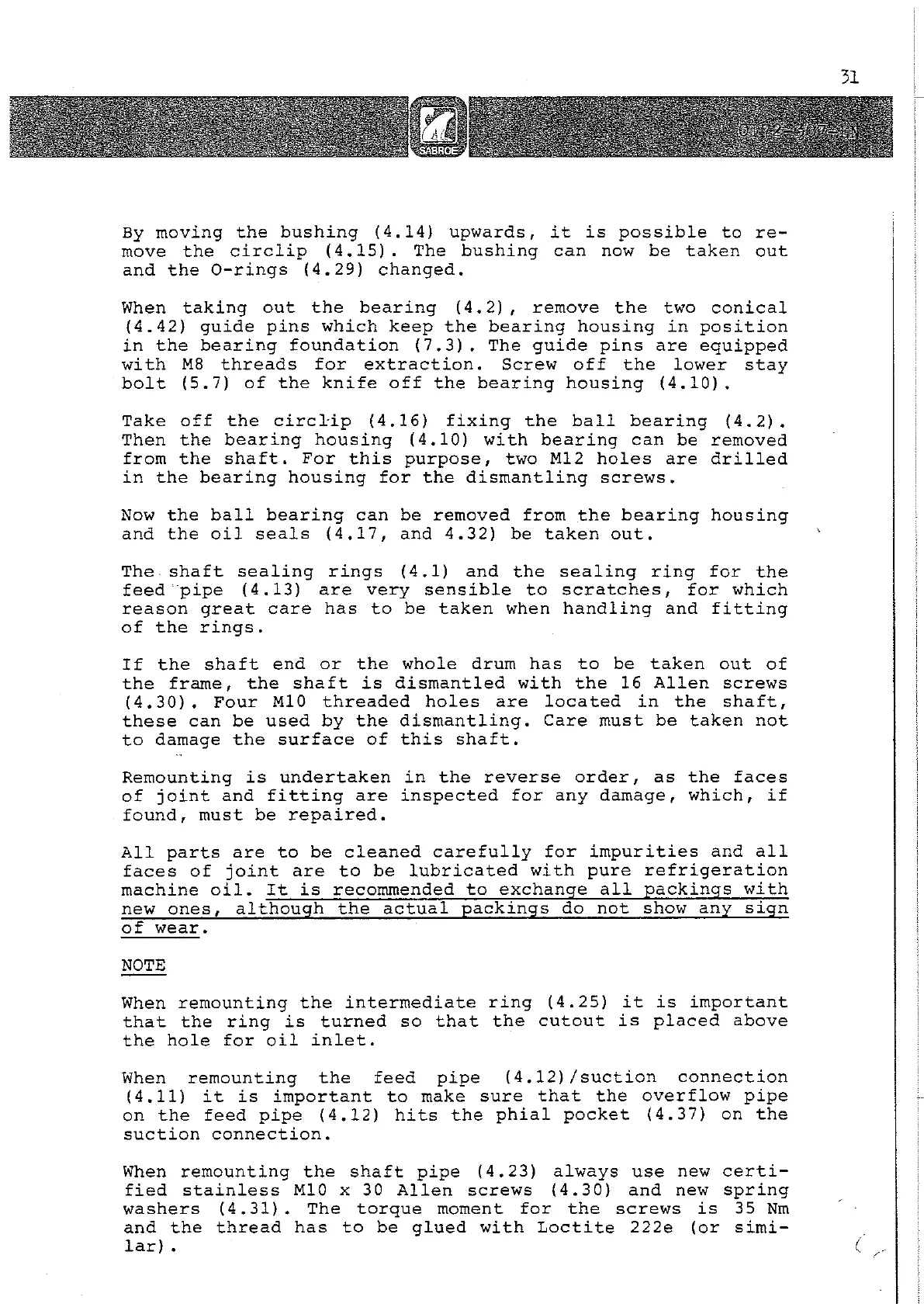

By
moving
the
bushing
(4.14)
upwards,
it
is
possibIe
to
re-
move
the
circlip
(4.15).
The
bushing
can
now
be
taken
out
and
the
O-rings
(4.29)
changed.
When
taking
out
the
bearing
(4.2),
remove
the
two
conicaI
(4.42)
guide
pins
which
keep
the
bearing
housing
in
position
in
the
bearing
foundation
(7.3).
The
guide
pin
s
are
equipped
wi
th
MS
threads
for
extraction.
Screw
off
the
lower
stay
bolt
(5.7)
of
the
knife
off
the
bearing
housing
(4.10).
Take
off
the
circlip
(4.16)
fixing
the
ball
bearing
(4.2).
Then
the
bearing
housing
(4.10)
with
bearing
can
be
removed
from
the
shaft.
For
this
purpose,
two
M12
holes
are
drilled
in
the
bearing
housing
for
the
dismantling
screws.
Now
the
ball
bearing
can
be
removed
from
the
bearing
housing
and
the
oil
seals
(4.17,
and
4.32)
be
taken
out.
The
shaft
sealing
rings
(4.1)
and
the
feedpipe
(4.13)
are
very
sensible
to
reason
great
care
has
to
be
taken
when
of
the
rings.
sealing
ring
for
the
scratches,
for
which
handling
and
fitting
If
the
shaft
end
or
the
whole
drum
has
to
be
taken
out
of
the
frame,
the
shaft
is
dismantled
with
the
16
Allen
screws
(4.30).
Four
M10
threaded
holes
are
located
in
the
shaft,
these
can
be
used
by
the
dismantling.
Care
must
be
taken
not
to
damage
the
surface
of
this
shaft.
Remounting
is
undertaken
in
the
reverse
order,
as
the
faces
of
joint
and
fitting
are
inspected
for
any
damage,
which,
if
found,
must
be
repaired.
All
parts
are
to
be
cleaned
carefully
for
impurities
and
all
faces
of
joint
are
to
be
lubricated
with
pure
refrigeration
machine
oil.
It
is
recommended
to
exchange
all
packings
with
new
ones,
although
the
actual
packings
do
not
show
any
sign
of
wear.
NOTE
When
remounting
the
intermediate
ring
(4.25)
it
is
important
that
the
ring
is
turned
so
that
the
cutout
is
placed
above
the
hole
for
oil
inlet.
When
remounting
the
feed
pipe
(4.l2)/suction
connection
(4.11)
it
is
important
to
make
sure
that
the
overflow
pipe
on
the
feed
pipe
(4.12)
hits
the
phial
pocket
(4.37)
on
the
suction
connection.
When
remounting
the
shaft
pipe
(4.23)
always
use
new
certi-
fied
stainless
M10
x 30
Allen
screws
(4.30)
and
new
spring
washers
(4.31).
The
torque
moment
for
the
screws
is
35
Nm
and
the
thread
has
to
be
glued
with
Loctite
222e
(or
simi-
31
lar)
. ( ,
