J
Item 2
Item 3

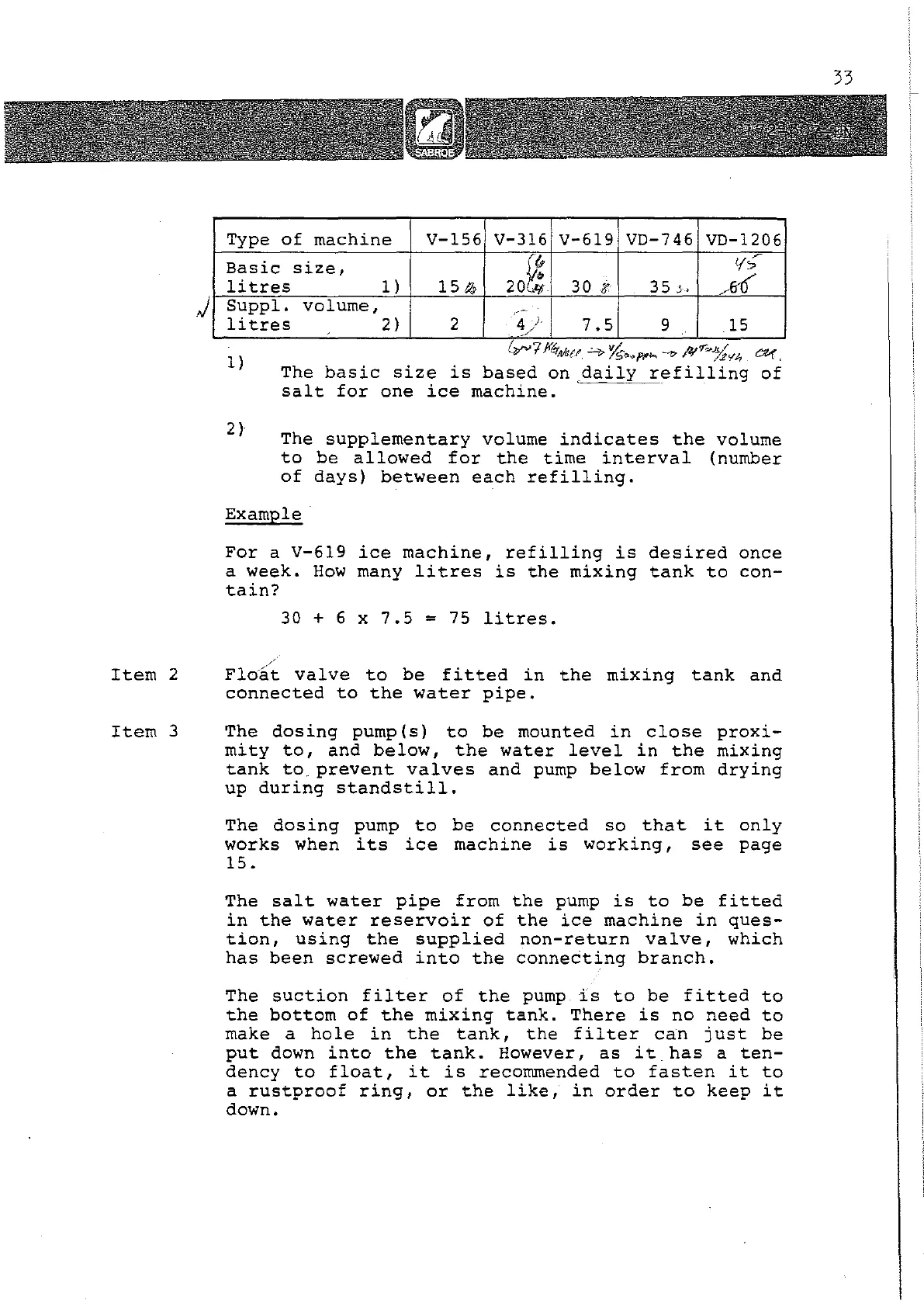

Type of machine V-l56
V-316 v-619 VD-746 VD-1206
Basic size,
1(;-
litres
l)
15 æ,
y,~
20;;
30 !f
35 y,
fiD
Supp1. volume,
-,
'4 I
litres 2) 2
,Y
7.5
9 15
1)
2)
,
"",,7 N!1MJ{F 1> %."f/''"' _ ,o/r~%<f~ Ot-f,
The basic size is based on dailY refilling of
salt for one ice machine. '
The supplementary volume indicates the vo1ume
to be allowed for the time interval (number
of days) between each refilling.
Example
For a V-619 ice machine, refilling is desired once
a week. How man y litres is the mixing tank to eon-
tain?
30 + 6 x 7.5 = 75 litres.
Floa:~ valve to be fitted in the mixing tank and
connected to the water pipe.
The dosing pump (s) to be mounted in close proxi-
mit y to, and below, the water level in the mixing
tank to prevent valves and pump below from drying
up during standstill.
The dosing pump to be eonnected so that it only
works when i ts ice mach ine is working, see page
15.
The salt water pipe from the pump is to be fitted
in the water reservoir of the ice machine in ques-
tion, using the supplied non-return valve, which
has been screwed into the connecting branch.
The suction filter of the pump is to be fitted to
the bottom of the mixing tank. There is no need to
make a hole in the tank, the filter ean just be
put down into the tank. However, as it has a ten-
dency to float, it is recommended to fasten it to
a rustproof ring, or the like, in order to keep it
down.
33
