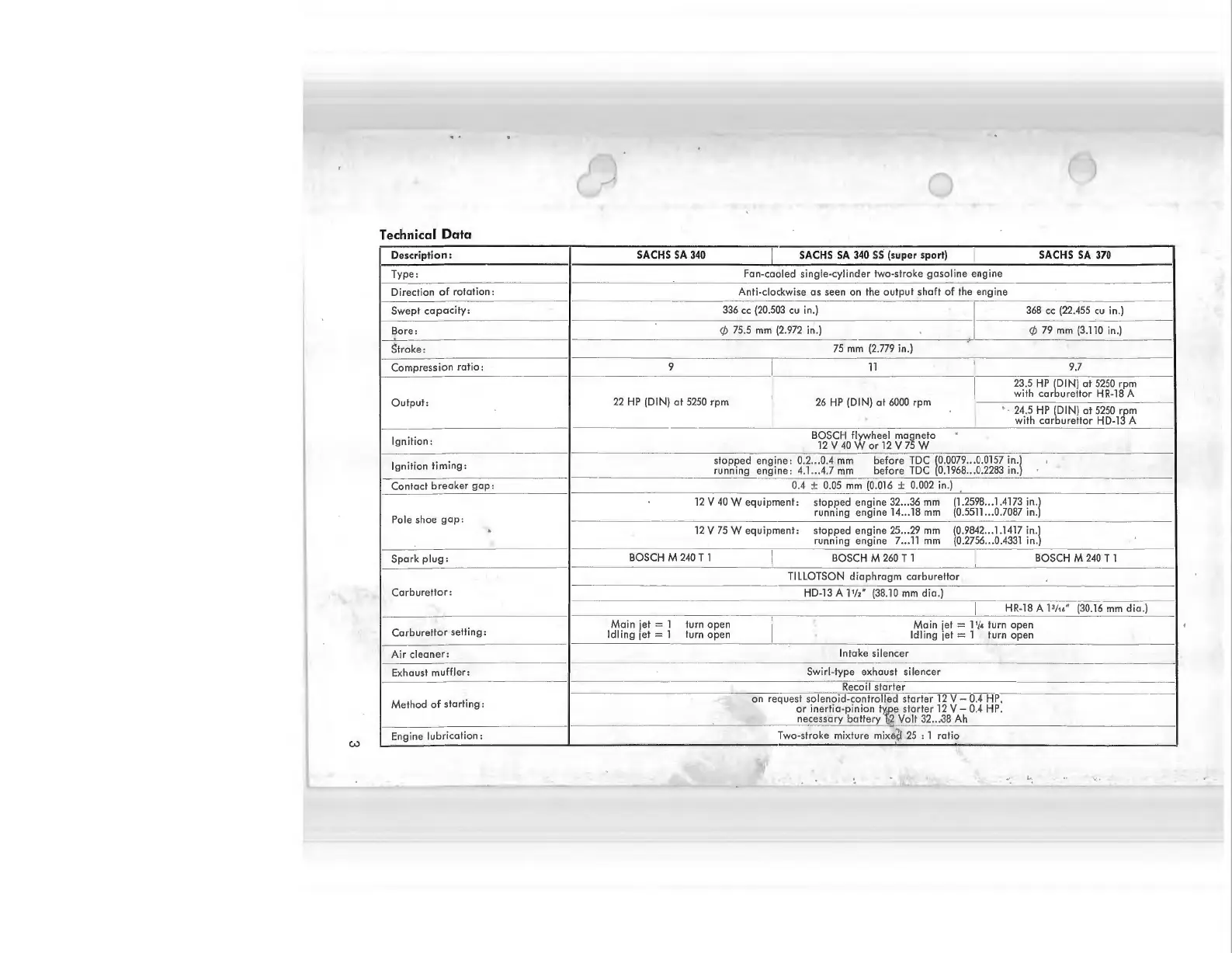

Technical Data
D es cripti on: SACHS SA 340
I
SAC HS SA 340 SS (super sport)
I
SA CHS SA 370
Type: Fan-cooled single-cylinder two-stroke gasoline engine
Direction of rotation: Anti-clockwise as seen on th e output sh aft of th e engine
Swept capaci ty:
3
36 cc (20.503 cu i n. )
I
368 cc ( 22 .4 55 cu in .)
Bore:
rJ; 75 .5 mm ( 2.972 in.)
rJ; 79 mm (3.1 10 in. )
~
'·
Stroke :
75 mm (2.77 9 in .)
Comp ression ratio:
9
I
11
I
9.7
I
I
23.5 HP (DIN) at 5250 rpm
I
with ca rburett or HR - 18 A
Ou tp ut:
22 HP ( DIN ) at 525 0 rpm
26 HP (DIN) at 6000 rpm
I
24.5 HP ( DI N) at 52 50 rpm
i
wi th ca rbu re tt or HD- 13 A
Ignition:
BOSC H fl yw heel magneto
12 V
40Wor 12 V75 W
Ignition
ti ming:
stopped engine : 0.2 ... 0
.4 mm
runn ing engine: 4.1...4.7 mm
before TDC (0.00 79 ... 0 .0 1 57 in.l
before
TDC ( 0. 1 968 . .. 0 .2283 in.
Contact breaker
gap: 0.4 ± 0. 05 mm (0 . 016 ± 0.002 in.)
12 V
40 W equipment : st op p ed engine 32 ... 36 mm
( 1. 2598 ... 1.4 173 in .l
Pol e shoe gap:
running engine 14 ... 18 mm
( 0.5511 ... 0.7087 in.
12 V 75 W equipment: sto pped engine 25 ... 29 mm
(0.9842 ... 1. 1417 in.l
•
running engine 7 ... 11 mm (0.2756 ... 0 .4331 in.
Spark plug:
BOSCH M
240 T 1
I
BOSCH M 260 T 1
I
BOSCH M 240 T 1
Tl
LLO T SO N diaphr agm car burettor
Carburettor:
HD - 13 A 1 'h'' (38.10 mm dia .)
I
HR-1 8 A 1' 11•" ( 30. 16 mm dia. )
Main jet = 1 turn open
I
~
Main j et = 1 1f, turn open
Carburettor setting :
Idling j
et = 1 tu rn open
Idl in g jet = 1 t urn open
Air
cleaner:
Intake si lencer
Exhaust muffler:
Swirl-type exhaust silencer
Recoil starter
Method
of starting:
,~·
on request solenoid-controlled starter 12 V 0. 4 H P.
or inerti a-p i ni on type starter 12 V- 0.4 HP.
necessary ba ttery }2 Vo lt 32 .. , 38 Ah
w
Engine lubricati on:
Two -stroke mixture mixed 25 : 1 ra ti o
