12.2. TECHNICAL DATA
Nominal values:
12.3. INSTALLATION AND ASSEMBLY
Before installing the pump with time controller, carefully read the whole of this manual and consult the safety rules
valid in each country.
The authorised installer must consider the following indications:
-It must be installed in a well-ventilated area, protected against moisture and direct exposure to the sun and rain.
-Before making the electrical connections, ensure the cable used to provide power to the frequency converter is
not live.
-The electric power cables to the controller must be of the correct size for the nominal consumption of the pump
and the length of cable required.

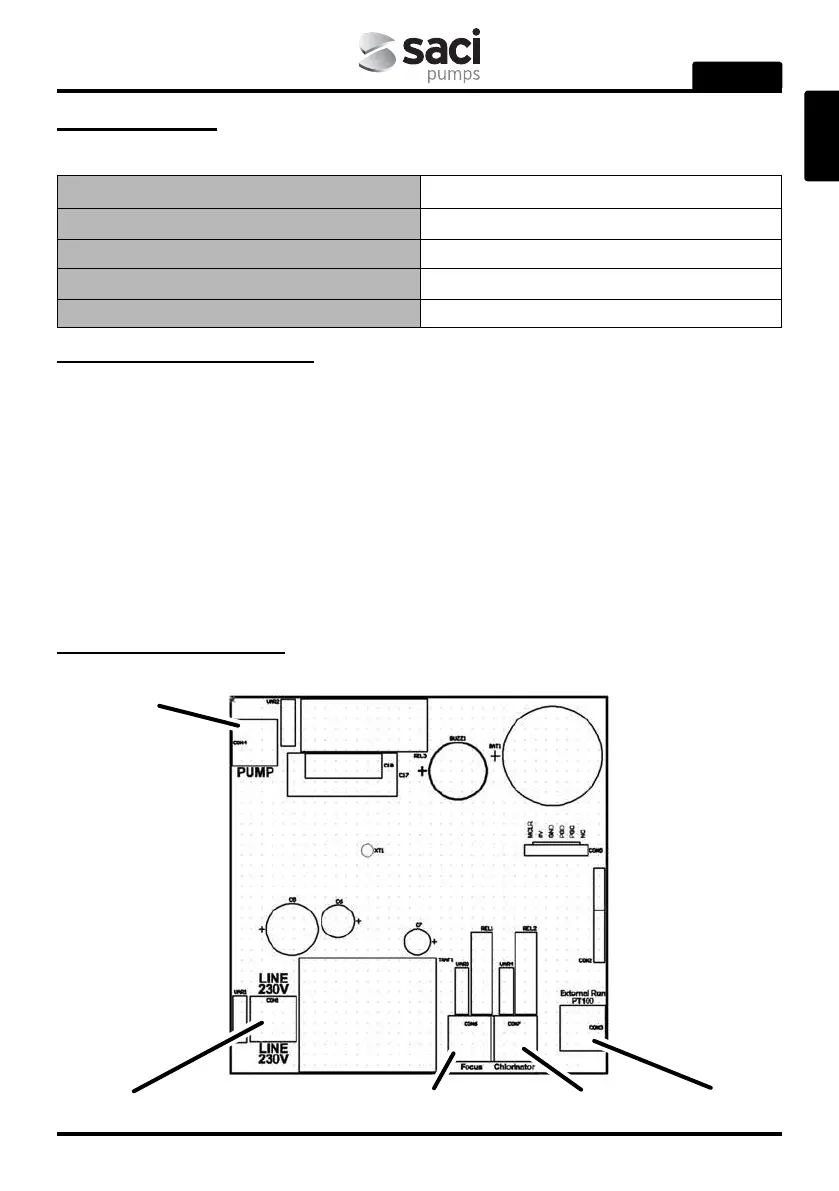

12.4. ELECTRICAL CONNECTIONS
Power supply voltage (V)
Motor voltage (V)
Working frequency (Hz)
Maximum intensity (A)
Protection rating
220-240 V single phase
220-240 V single phase
50/60 Hz
16 A
IP 55
Output pump
(220V – 16A max.)
External intakeChlorinator outletLight outlet
Power supply
(220V – 50/60Hz)
