Connection of a combustion air duct
An airbox is available as an optional accessory.
A combustion air pipe from outside can be connected to the Ø 80 mm combustion air connection piece.
The Saey Cross draws all of its combustion air through this connection piece.

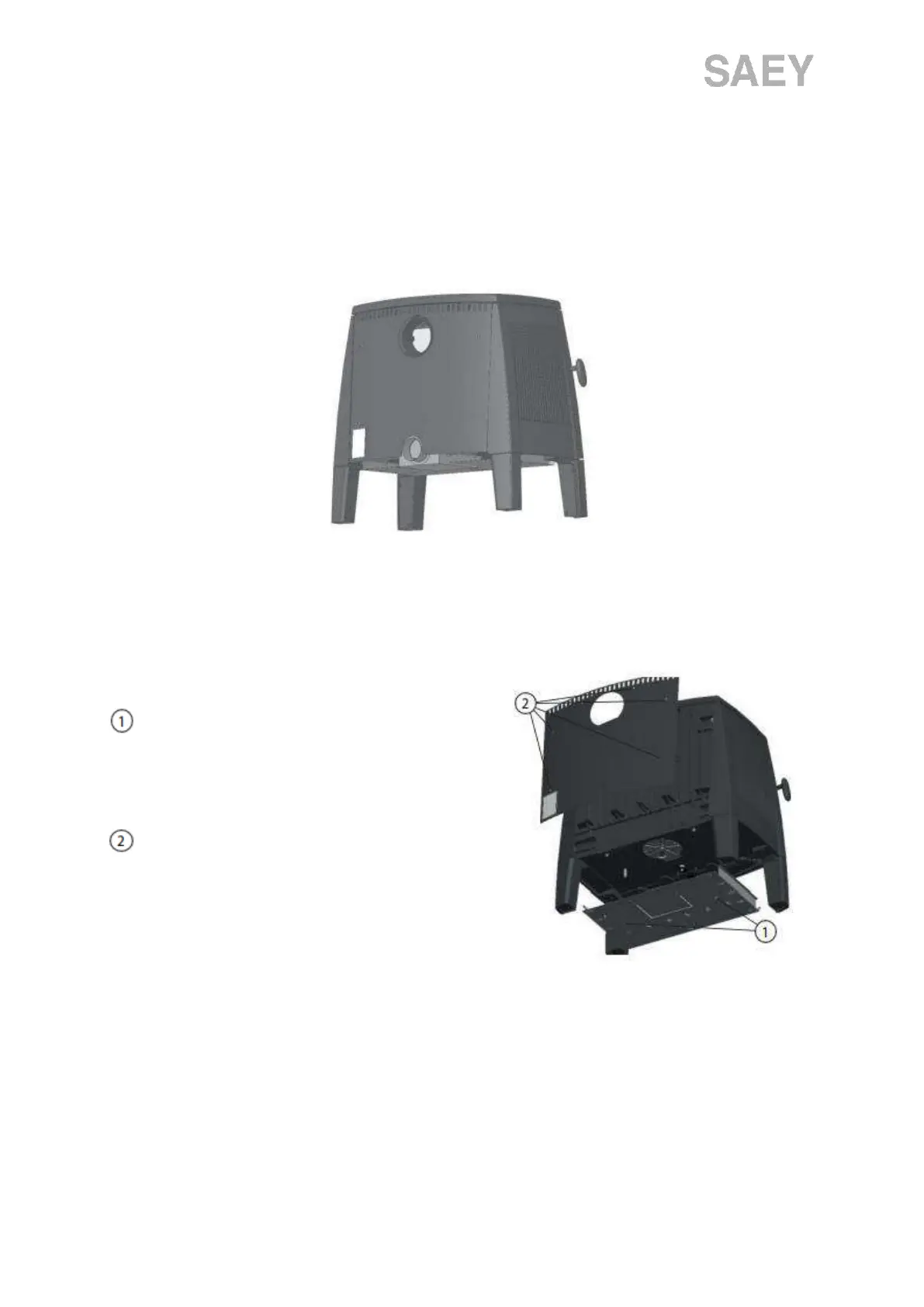

Rear side Saey Cross,
combustion air connection at the bottom
Assembly of the airbox
Remove the bottom plate -
2 hexagonal screws on the side,
M8, SW 13 mm with washers
Remove the back panel -
6 screws, M6 x 8 mm,
cross-head screws
