Integra-S/Integra-GS 6-13GHz* FODU: attaching to
the antenna

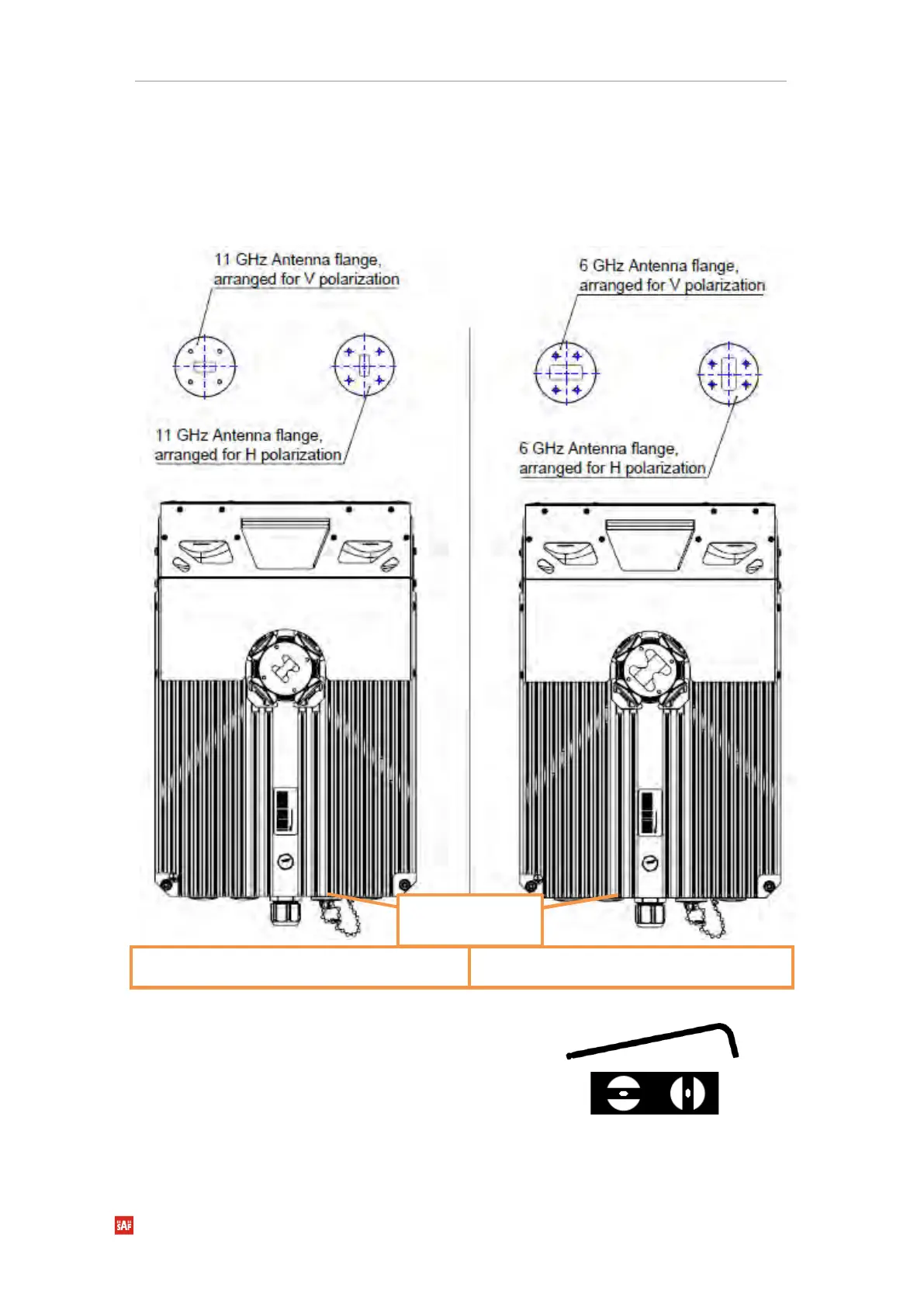

Integra-S/Integra-GS 6-13GHz* FODU features twisted polarization flange and the resulting
signal polarization is determined by Interface on antenna/OMT. To change signal polarization,
please rotate only the antenna interface, as the radio always remains in the vertical position.
11 GHz Integra-S/Integra-GS,
suited for both V and H polarization
6 GHz Integra-S/Integra-GS,
suited for both V and H polarization
Tools required: Size 5 Allen wrench, 240mm
Level (not supplied)
Always this side
down
