INTEGRA/-S/-G/-GS User Manual INSTALLATION
SAF Tehnika JSC
9
Chapter 2: INSTALLATION
Package contents
Integra/Integra-G
Integra-S/Integra-GS
- Integra FODU D**B1*****,
D**B2*****, D**G1***** or
D**G2*****,
- Mounting bracket D0SPKR02
- Locking key for Integra D0ALK001
- Kit of replacement parts D0AZIP01
- RJ-45 connector 8P shield solid
FOACNR02
- Installation manual D0DB2RM1
- Integra D**BS***** or D**GS*****
- Locking key for Integra-S D0ALK002
- RJ-45 connector 8P shield solid
FOACNR02
- Installation manual D0DBSRM1
Integra/Integra-G FODU: assembling mounting
bracket and installing with an antenna on a pole

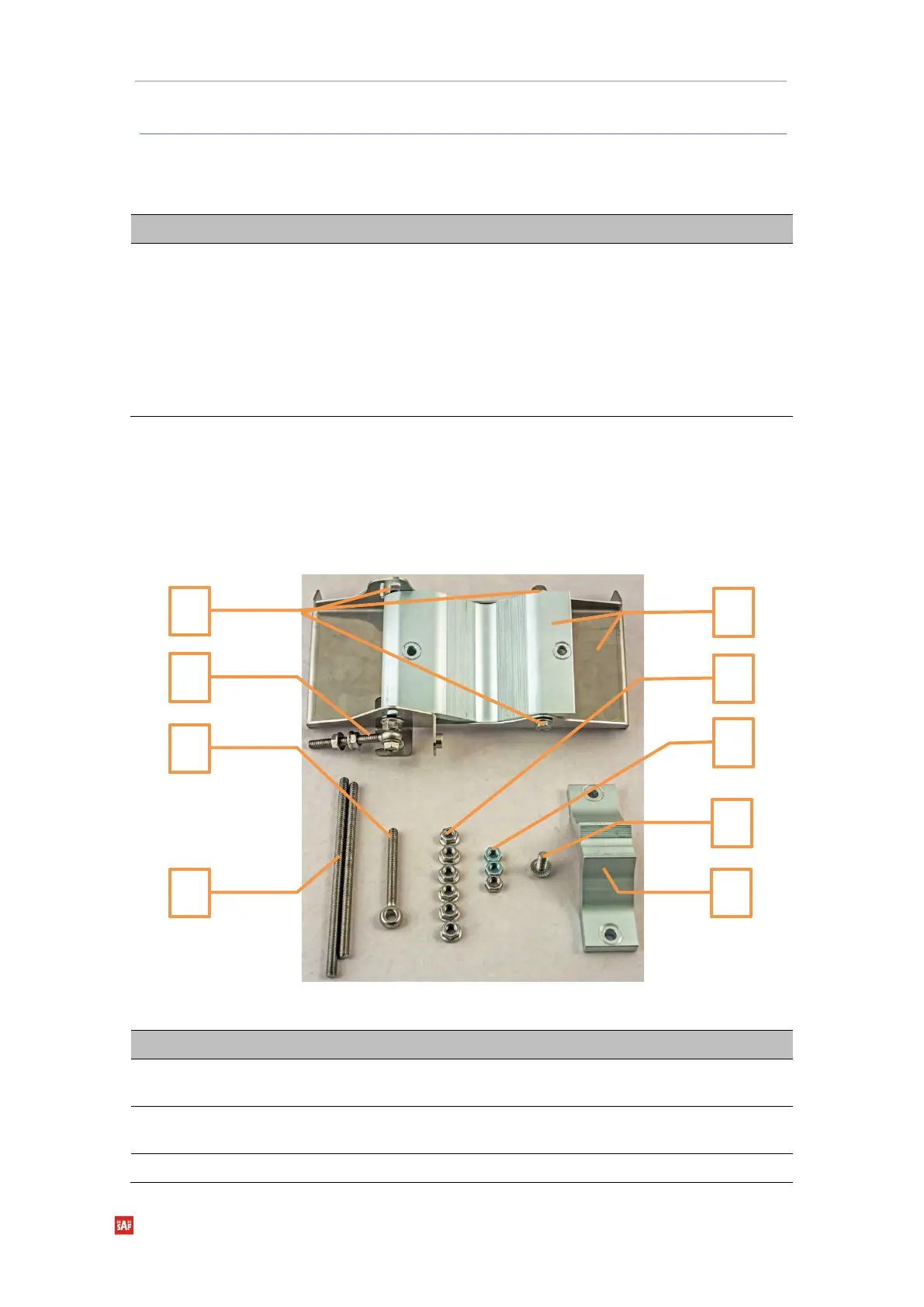

Disassembled mounting bracket and tools required for assembly
Parts of the disassembled mounting bracket
#
Parts of the disassembled mounting bracket
1
Three M8x1.25x16 hex flange bolts are already attached to clamps for housing and pipe
[5]
2
One hex flange bolt M8x1.25x30, one M10x1.5 hex flange nut, and one M8x80 eye screw
are already attached to clamps for housing and pipe [5]
3
One M8x80 eye screw
5
1
6
2
7
3
9
4
8
