Safer PR90 - Major Internal Components

Globalis International
PR9 SERVICE MANUAL
-
VER1.1
Page
7
of
112

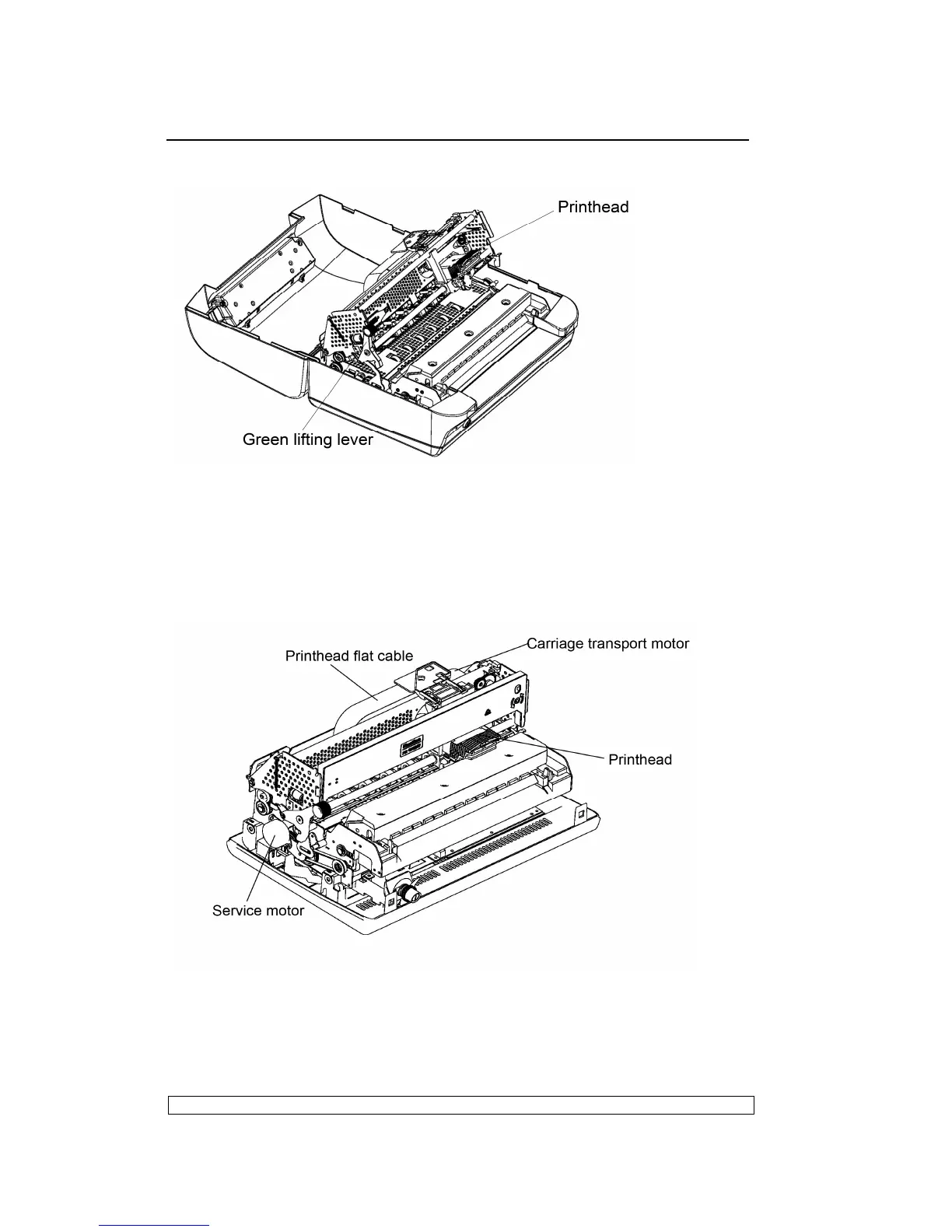

Fig. 1-3 Major Components of PR9
Note: The max. open angle of top cover is 90°, for a better view the open
angle is 180°in the figure above
1.6. LOCATING THE PRINTER'S MAJOR INTERNAL
COMPONENTS
