Sailor BP4680 - OUTLINE AND MOUNTING PLAN; CONNECTORS LOCATION

16 pages

To Next Page

To Previous Page

BATTERY PANEL 11

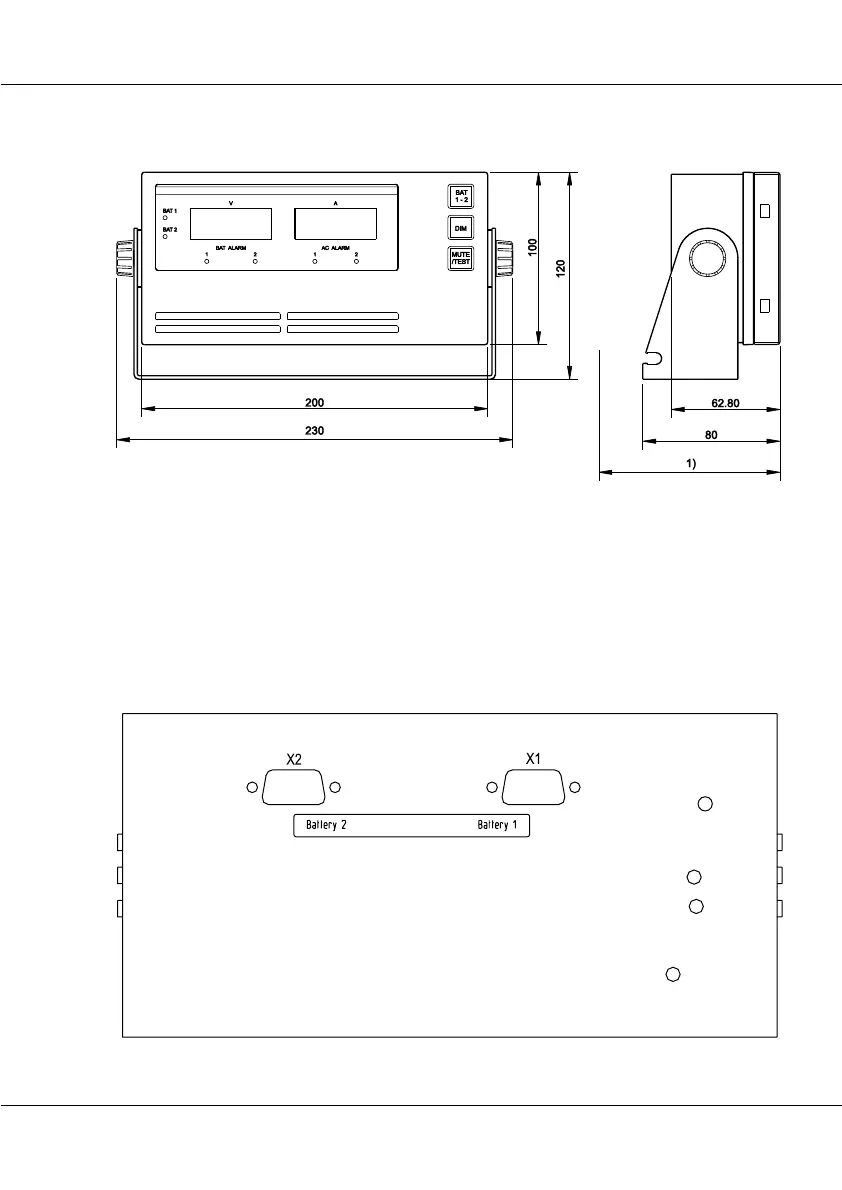

OUTLINE AND MOUNTING PLAN

3-0-33418

Dimensions are in mm.

Tolerance: +/- 1

Weight: 1.3 Kg

1) Space for cable entry: min.100

CONNECTORS LOCATION

4-0-34931

INSTALLATION
