BATTERY PANEL 15

JUMPER SETTINGS

S7 S3 S6 S4

R94

R83

R84

R95

5 6

4-0-34934

Setting of AC alarm 1 input type:

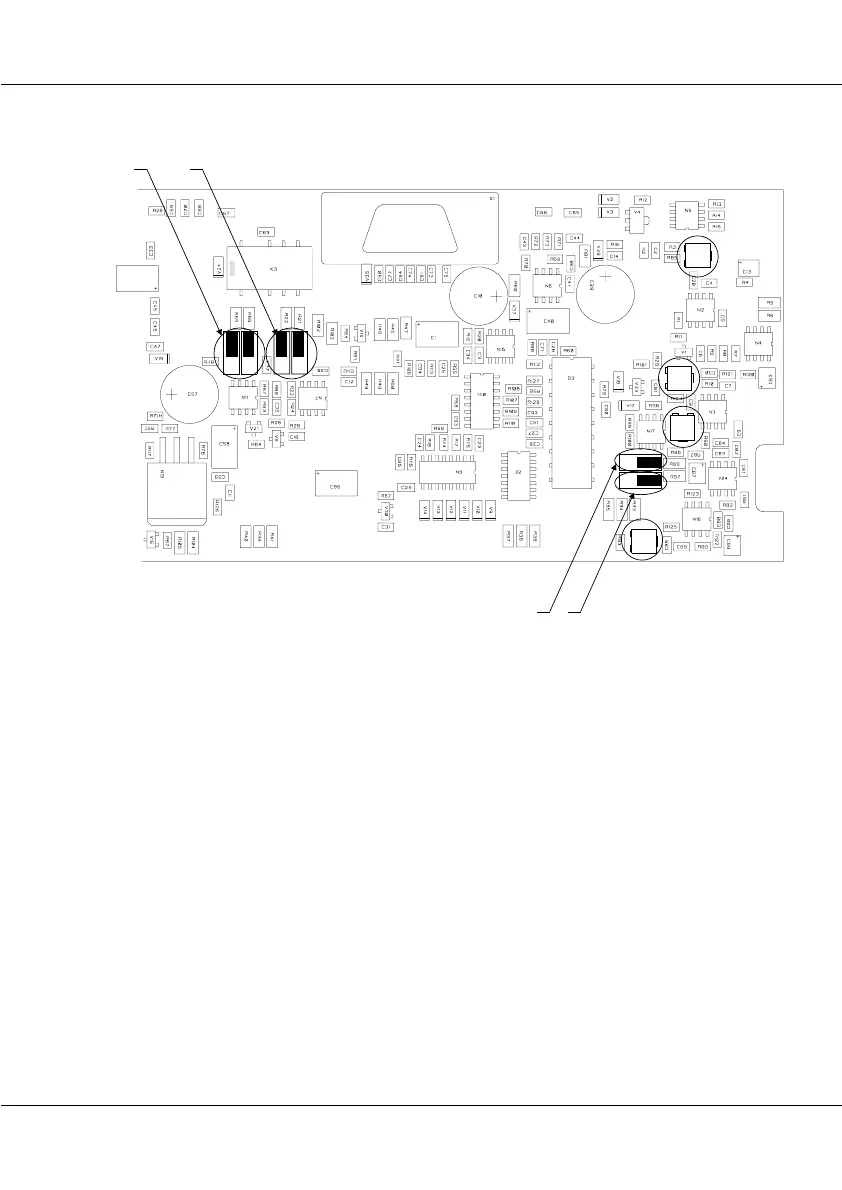

On the figure jumpers S3 and S7 ( pos. 5) are shown in the relay

contact position.

1. To change to the voltage input both S3 and S7 must be set to the

oposite position

2. Apply an input voltage to the X1 terminals ‘AC Alarm V’ and

‘AC Alarm C’.

3. Check that no voltage gives alarm and that the alarm stops when

24V DC is applied.

INSTALLATION
