Sailor R1120 User Manual

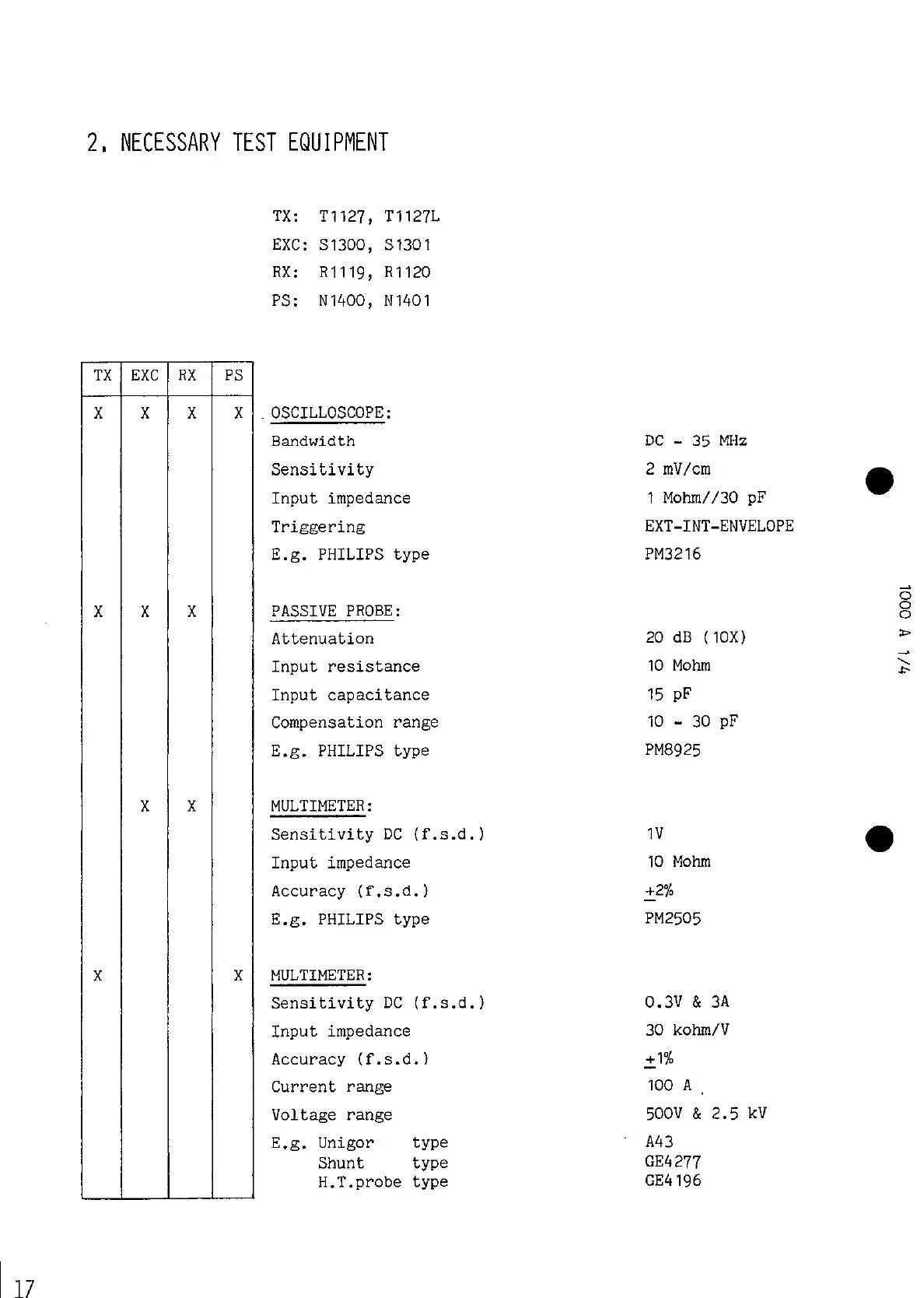

2, NECESSARY TEST EQUIPMENT
TX: T1127, T1127L
EXC: 51300, S1301
RX: R1119, R1120
PS:
N1400, N1401
OSCILLOSCOPE:
Bandwidth
Sensitivity
Input impedance
Triggering
E.g. PHILIPS type
PASSIVE PROBE:
Attenuation
Input resistance
Input capacitance
Compensation range
E.g. PHILIPS type
MULTIMETER:
Sensitivity DC (f.s.d.)
Input impedance
Accuracy (f.s.d.1
E.g. PHILIPS type
MULTIMETER:
Sensitivity DC (f.s.d.)
Input impedance
Accuracy (f.s.d.)
Current range
Voltage range
E.g. Unigor
type
Shunt
type
H.T.probe type
DC - 35 MHz
2 mV/cm
1 Mohm//30 pF
EXT-INT-ENVELOPE
PM3216
20 dB (10X)
10 Mohm
15 PF
10 - 30 pF
PM8925
IV
10 Mohm
+?/O
-
PM2505
0.3V & 3A
30 k&m/V
+l%
100 A
500V & 2.5 kV
A43
GE4277
GE4196
I 17
