Sailor R1120 User Manual

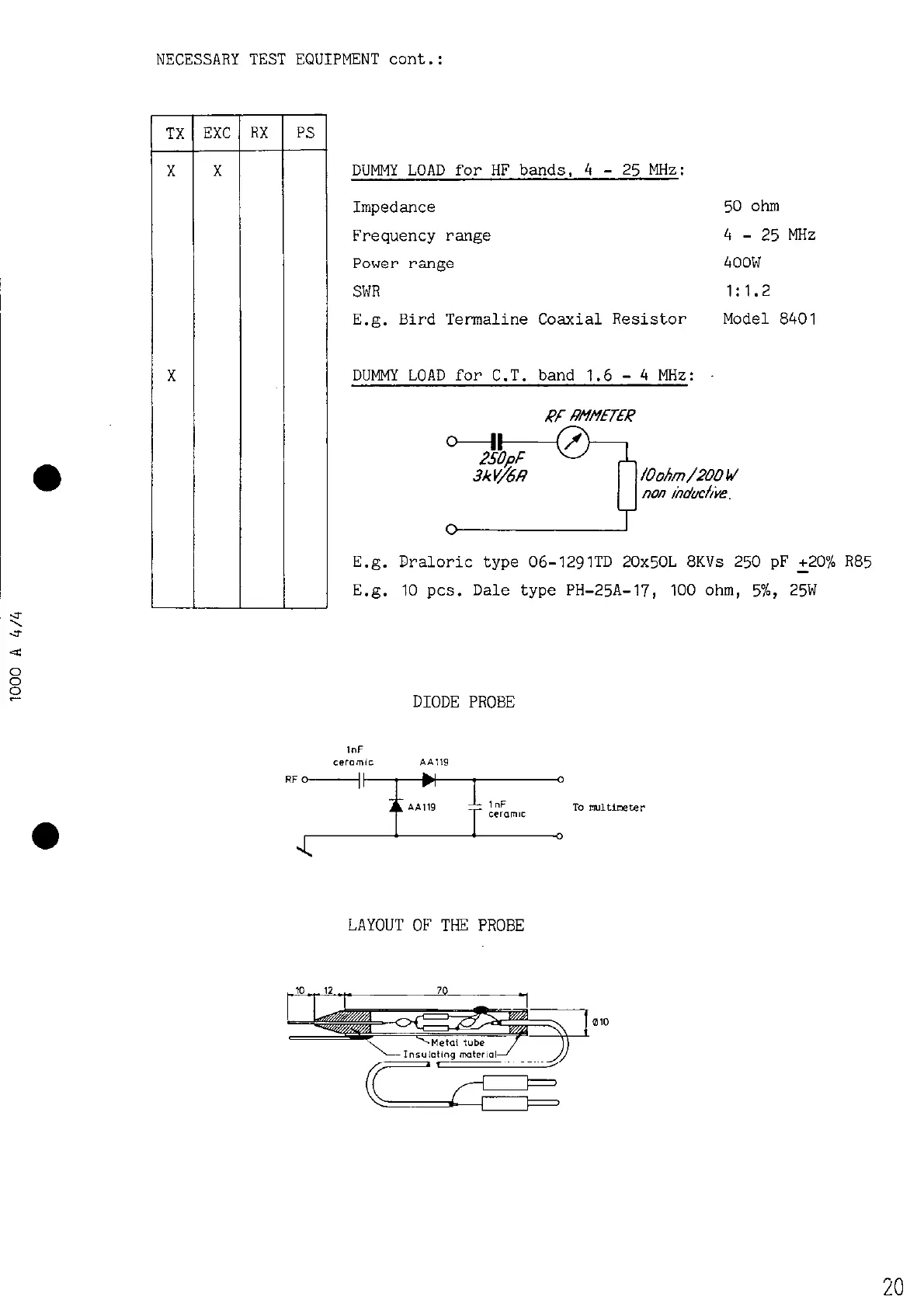

NECESSARY TEST EQUIPMENT cont.:
TX
-
X
X
-
zxc
X
RX
-
PS
-
-
DUMMY LOAD for HF bands, 4 - 25 MHz:
Impedance
50 ohm
Frequency range
4 - 25 MHz
Power range
4oow
SWR
1:1.2
E.g. Bird Termaline Coaxial Resistor Model 8401
DUMMY LOAD for C.T. band 1.6 - 4 MHz:
Rf /Ft’i’MUER
E.g. Draloric type 06-1291TD 2Ox5OL 8KVs 250 pF ~20% R85
E.g. 10 PCS. Dale type PH-25A-17, 100 ohm, 5%, 25W
DIODE PROBE
LAYOUT OF THE PROBE
20
