2 INSTALLATION RM2042

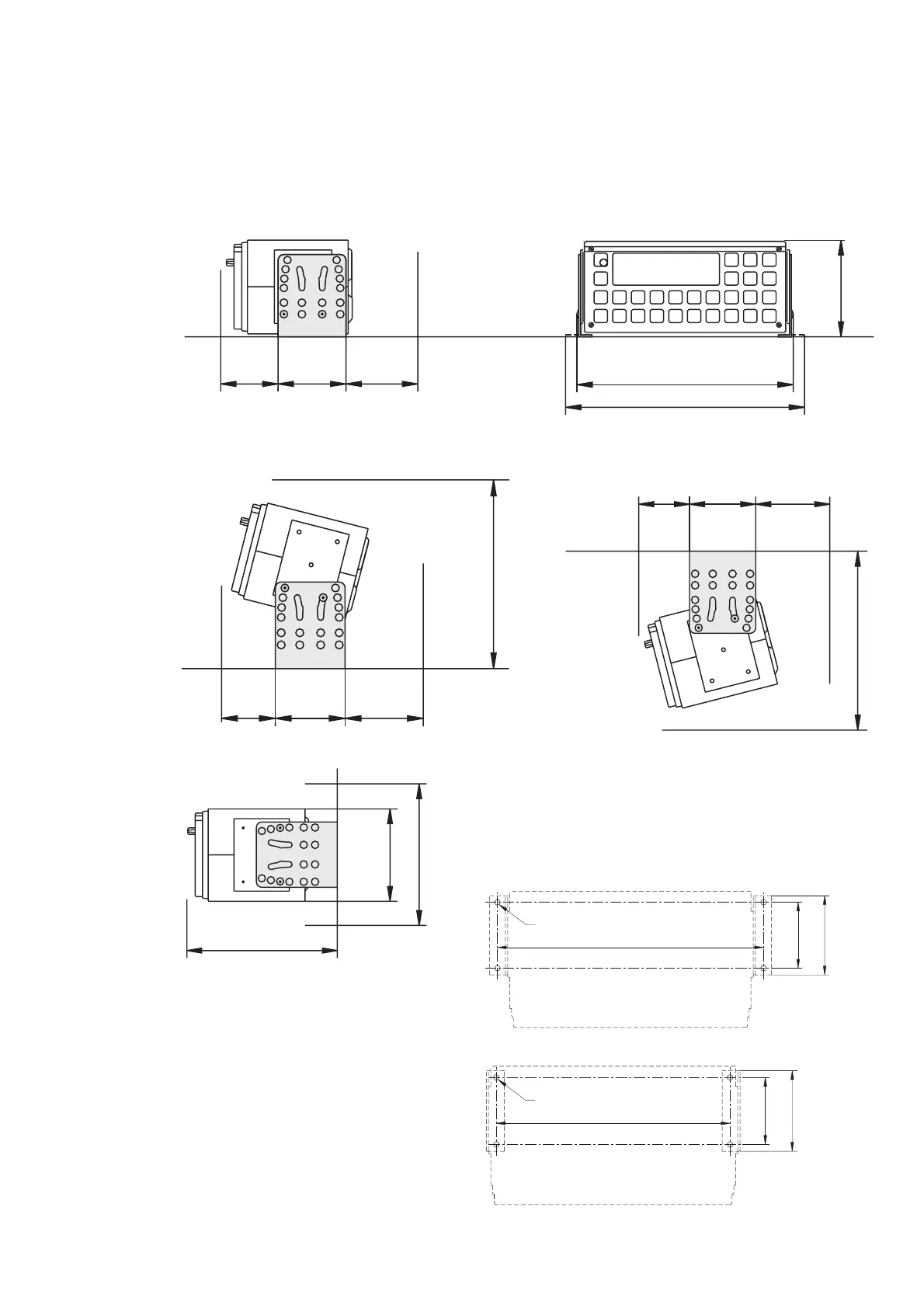

H2057 ANGLE HINGES FOR TABLETOP, BULKHEAD OR DECKHEAD MOUNTING FOR MINI 1/4
BOX
H2057 is designed for stationary installation. It offers a lot of mounting possibilities using the different
holes in the angle hinges when tilting the VHF DSC.
H2057
228mm
min 104mm
71mm min 75mm**60mm
252mm
min 45mm*
27594
71mm 55mm
max 177mm
min 70mm*
min 100mm**
27595
71mm55mm min 100mm**
max 177mm
min 70mm*
27596
min 169mm*
max 185mm**
min 99mm min 156mm
27597
59mm
4 pcs 5 mm
71mm
238mm
27574A
59mm
4 pcs 5 mm
71mm
206mm
27575A
Weight:
Mounting kit H2057: 0.4 kg
VHF DSC RM2042: 2.0 kg
* dimensions when using
a right-angled VHF plug
** dimensions when using
a standard VHF plug
PAGE 2-3
