Sailor RM2042 - Page 24

2 INSTALLATION RM2042

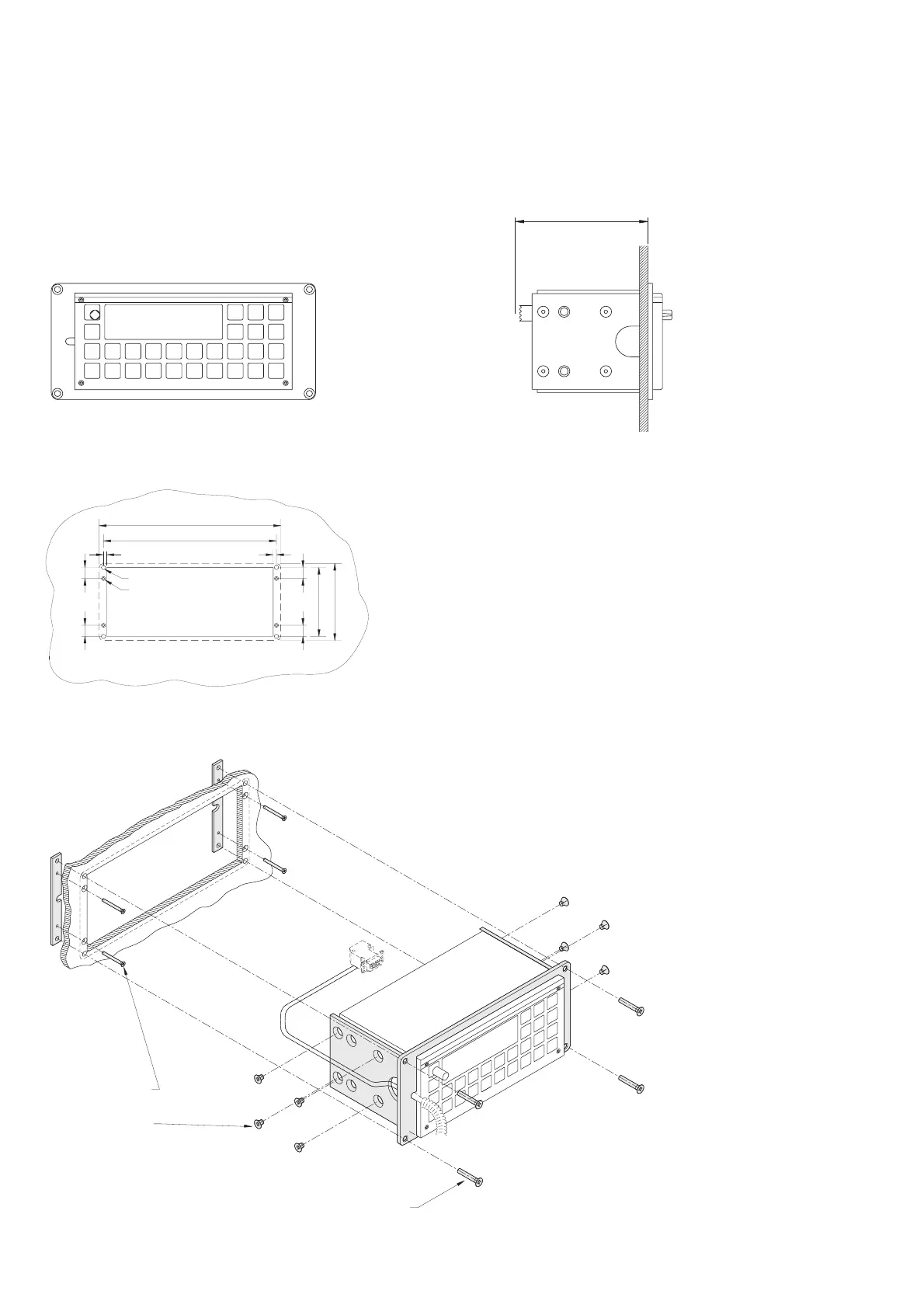

This mounting kit is used for console flush mounting of 1/4 box and mini 1/4 box.
Free distance must be kept to allow free air circulation, ambient temperature max. 40°C.
H2063
min.160mm
27580
4.5mm 4.5mm
16mm16mm 16mm
16mm
4 stk 6mm
4 stk 3.5mm uns for M3 DIN 963
Cutting out 231x100mm
253mm
240mm
100mm 113mm
27444A
Weight:
Mounting kit H2063: 1.0 kg
VHF DSC RM2042: 2.0 kg
4 pcs M3x30
8 pcs M5x8
4 pcs M5x30
27581
PAGE 2-4
