6.4 Opening the Housing
t_ue_e07.fm / 21.06.04
63
6.4 Opening the Housing

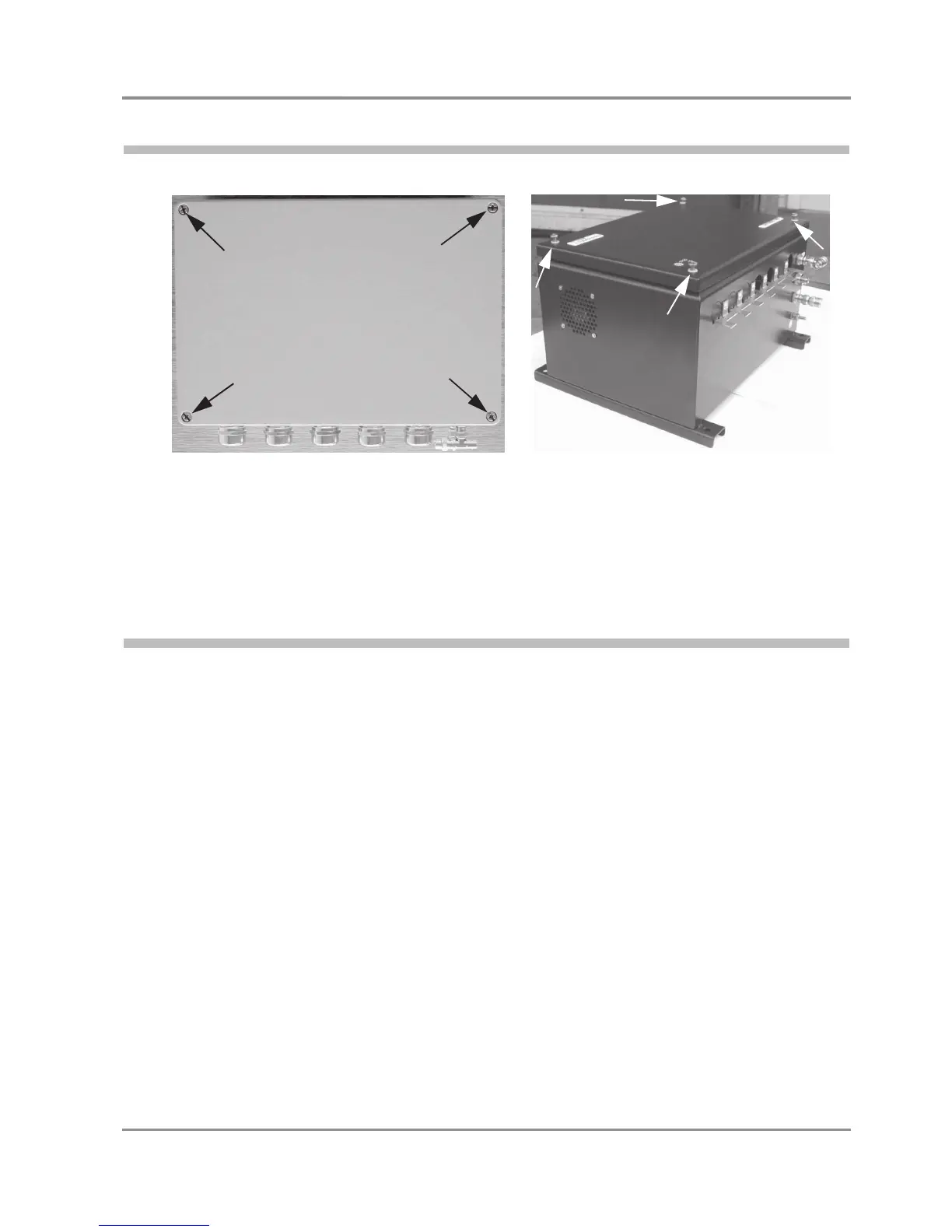

Fig. 6-9 Opening of the Electronics Unit housing
Undo the four screws in the cover. The screws cannot be removed. Disconnect the grounding cable from
the cover.
To close the housing, proceed in the reverse order.
6.5 Fuses
Electronics Unit
The Electronics Unit contains no fuses.
z_ue_021.tif

Sailor UAIS1900 Specifications

General

Weight	1.0 kg
Channel Bandwidth	25 kHz
Modulation Mode	GMSK
Number of Receivers	2
Number of Transmitters	1
Operating Temperature	-15°C to +55°C
Modulation	GMSK
Type	Class A AIS Transponder
Frequency Range	156.025 MHz to 162.025 MHz
Dimensions	200 x 134 x 83 mm
Power Supply	12/24 V DC
Interface	NMEA 0183, NMEA 2000
GPS Receiver	Yes, integrated
Standards	ITU-R M.1371-5
Data Rate	9.6 kbps
Output Power	12.5 W
Interfaces	NMEA 0183, NMEA 2000
