Figure4.6
Positive and negative connectors
Figure4.7
Connecting Cables

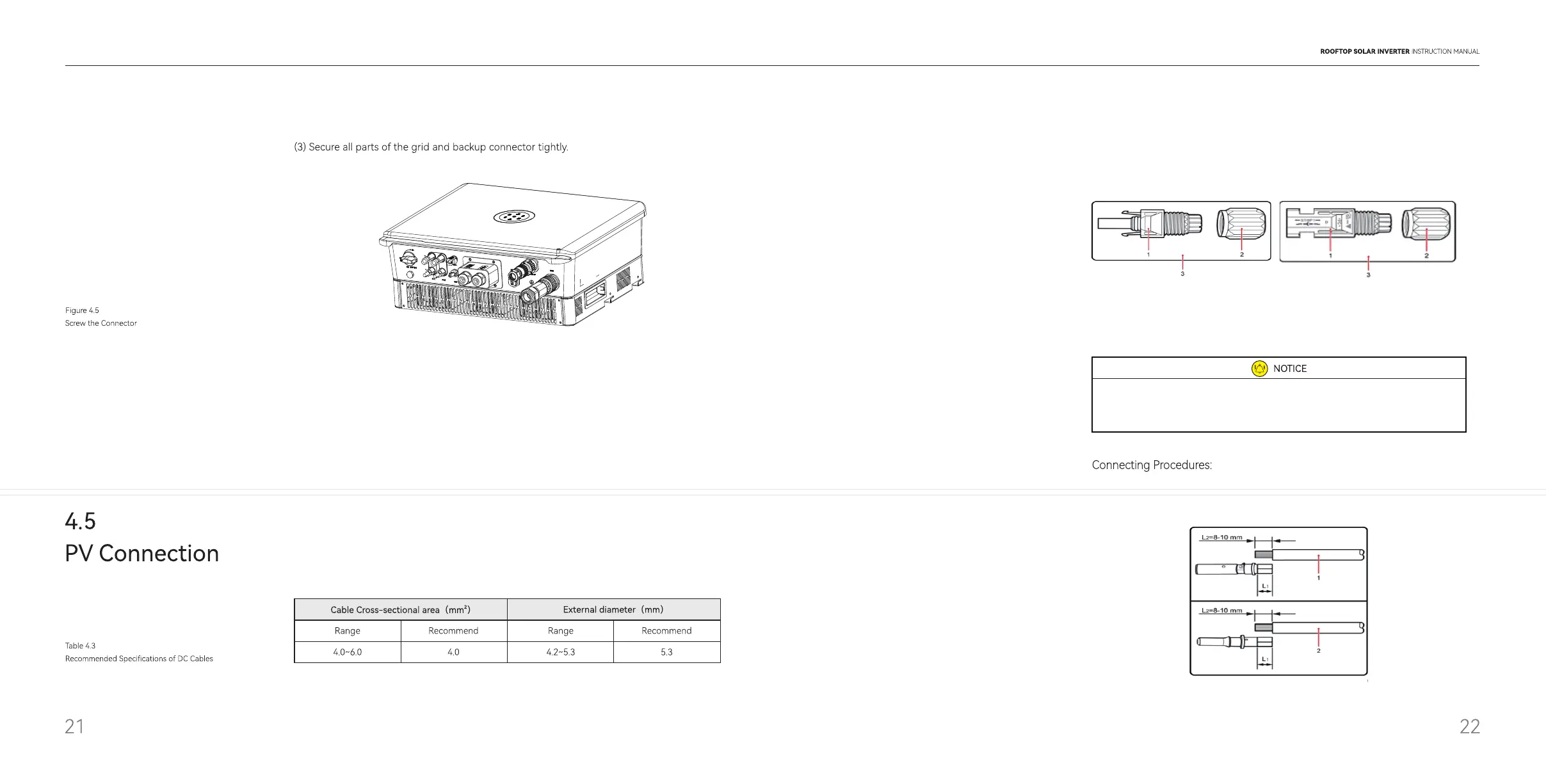

DC connector is made up of the positive connector and the negative con-
nector
Connecting Procedures:
1. Use specied strip tool to strip the insulated enclosure of the positive
and negative cables with appropriate length (8-10mm).
1. Positive Cable 2. Negative Cable
1. Insulated Enclosure 2. Lock Screw3. Positive/ Negative Connector
·Please place the connector separately after unpacking in order to avoid confusion for connection of cables.
·Please connect the positive connector to the positive side of the solar panels, and connect the negative connector
to the negative side of the solar side. Be sure to connect them in right position.
(4).During o grid operation time, PE line at the BACK-UP end will remain to be connected
with the PE line at the power grid end inside the inveer. (Only applicable to market in Aus-
tralia)
