M2 Series Micro-inverter
7
8

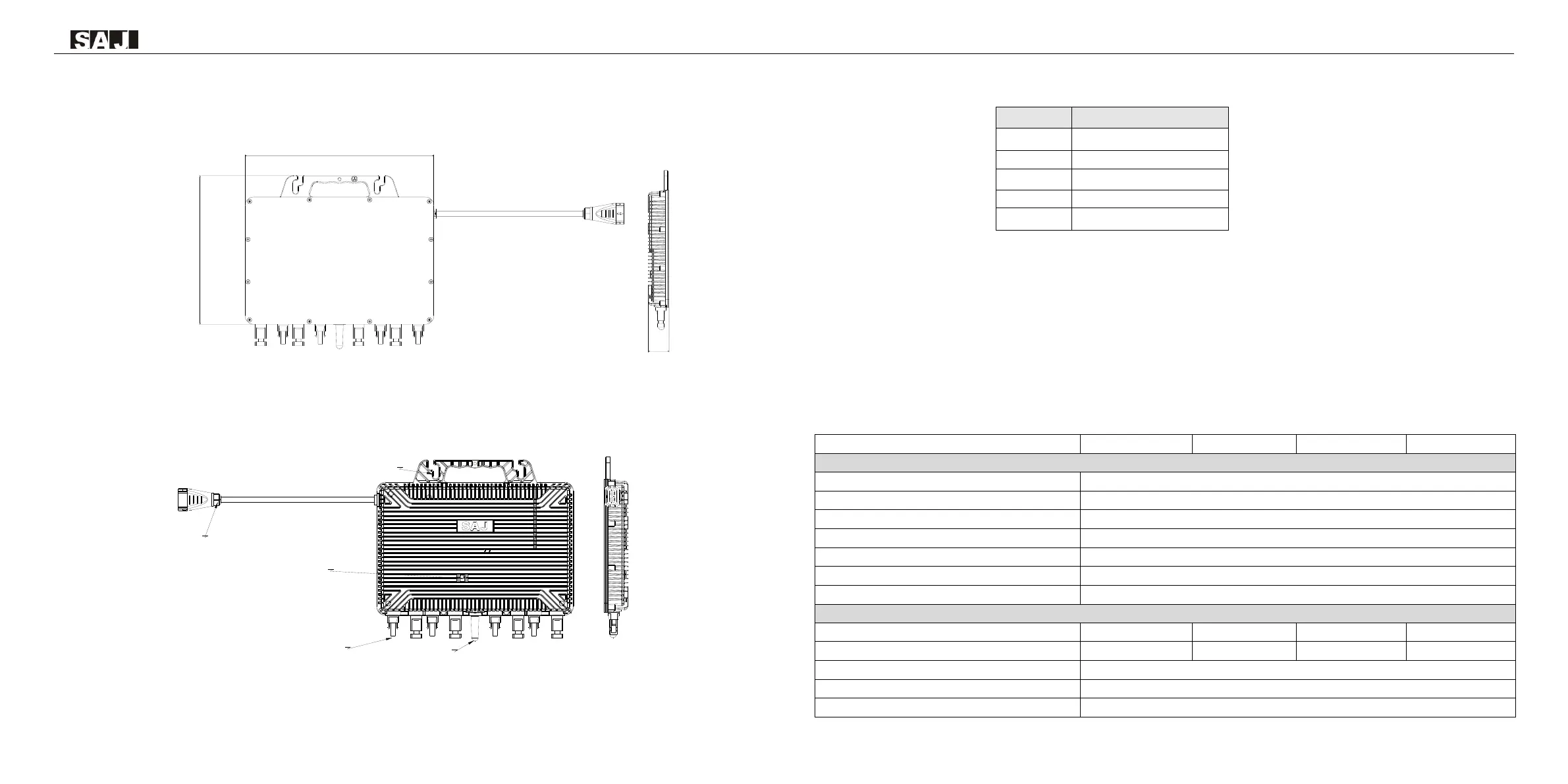

2.2 Overview of Product
333
263
40
Figure 2.2
Dimensions of M2 microinverter
2.3 Terminals Description
A
B
C
D
E
Figure 2.3
M2 microinverter interface
(rear view)
Table 2.1
M2 microinverter
Interface description
2.4 Datasheet
Model
M2-1.8K-S4
M2-2K-S4
M2-2.2K-S4
M2-2.25K-S4
Input Data (DC)
Recommended PV Module Power (STC) Range [Wp]
400~700+
Peak Power Tracking Voltage [V]
35~50
Operating Voltage Range [V]
16~55
Maximum Input Voltage [V]
60
Maximum Input Current [A]
20 x 4
Back-Feed Current [A]
0
Overvoltage Category
Ⅱ
Output Data (AC)
Maximum Output Power [VA]
1800
2000
2200
2250
Nominal Output Current [A]
7.82
8.7
9.56
9.78
Rated AC Voltage/Range [V]
L+N+PE, 220, 230, 240/180～280
Rated Output Frequency/Range [Hz]
50, 60/45～55, 55～65
Power Factor [cos φ]
> 0.99 default 0.8 leading～0.8 lagging
Code
Name
A
Mounting Hole
B
DC Cables
C
Antenna
D
AC Cables
E
LED Indicators
