R5 Series

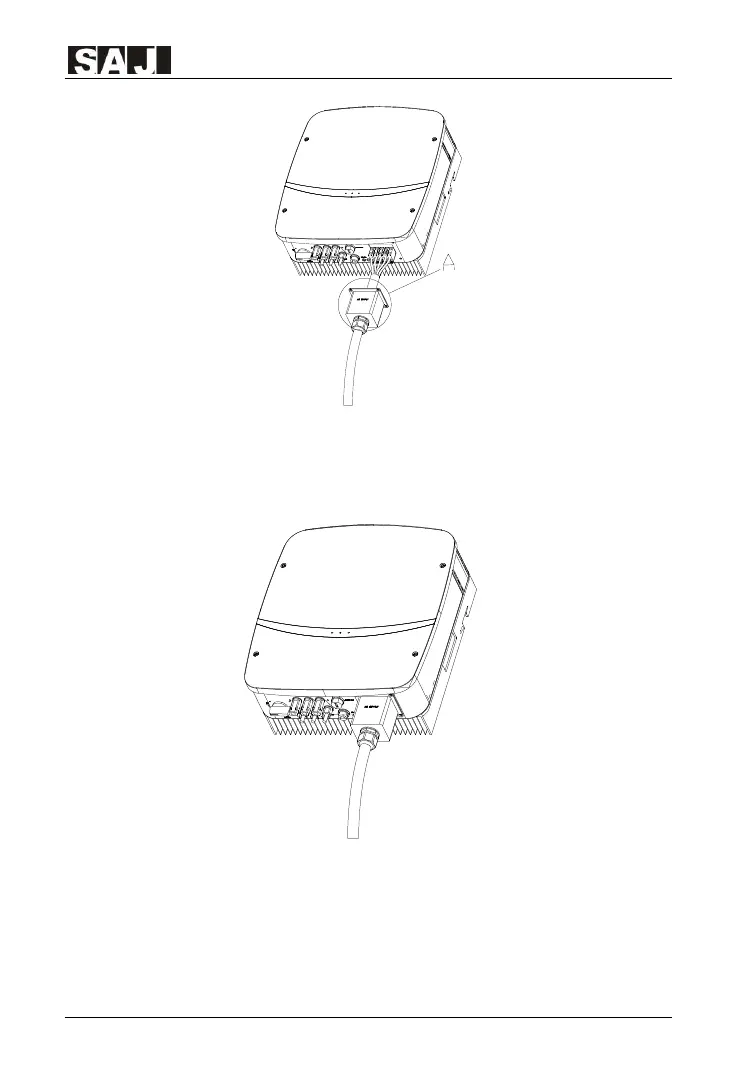

Fig. 5.10 Connecting the cable
3. After fixing the cover at the AC output wire terminal with screws, tighten up the
AC waterproof nut.
Fig. 5.11 Tighten up AC interface protective cover and the locker
5.3.3 External AC Circuit Breaker and Residual Current Device
Please install a 4P circuit breaker to ensure the inverter is able to disconnect from
grid safely. The inverter is integrated with a RCMU, however, an external RCD is
