R5 Series
- 22 -

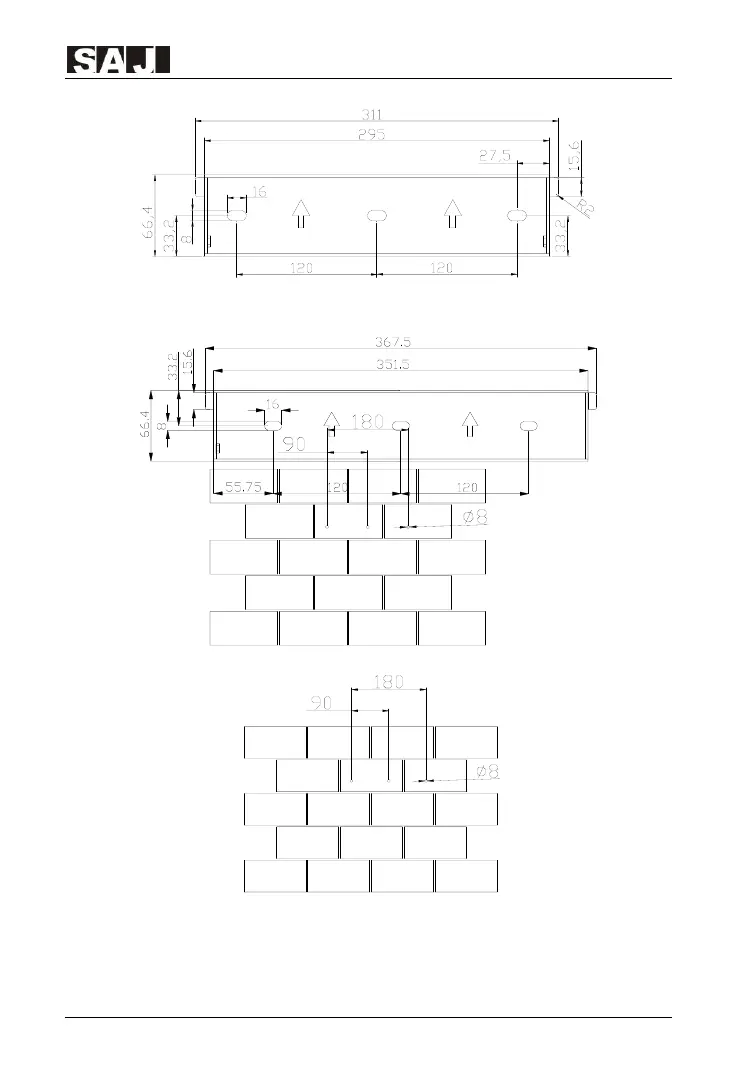

Figure 4.4 Dimensions of rear panel of R5-3K/3.6K/4K/5K/6K-S2
Figure 4.5 Dimensions of rear panel of R5-7K/8K-S2
4.4.2 Drill Holes and Place the Expansion Tubes
According to the guides, drill 3 holes in the wall (in conformity with position
marked in Figure 4.6&Figure 4.7), and then place expansion tubes in the holes
using a rubber mallet.
Figure 4.6 Drill holes’ dimensions of R5-0.7K/1K/1.5K/2K/2.5K/3K-S1
