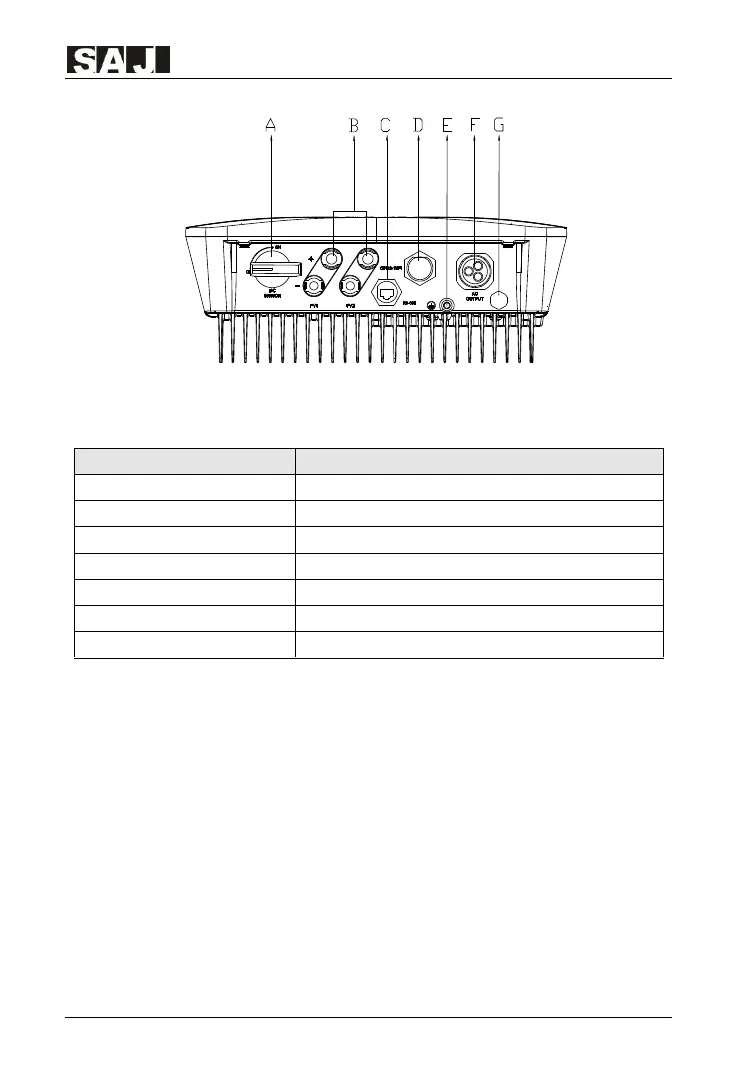

Figure 5.2 Electrical interface of R5-3K/3.6K/4K/5K/6K-S2
Code
Name
A
DC Switch
B
DC Input
C
RS485 Communication
D
RS232 Communication(GPRS/Wi-Fi/4G)
E
Ground Connection
F
AC Output
G
Decompression Valves
Table 5.2 Specifications for interface
