Salda SMARTY XV Series Mounting And Installation Instruction

44 | EN SMARTY v2023.2
DRAWN BY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
CHECKED BY
1123445677
EI A. Šklenikas
EI D. Aleksandravičius
221.1055E
221.1055.0.1.0-PS
Principal electrical connection scheme
1
01
2016.04.26
2016.04.26
2016.04.26
+24
B/
B
A/
A
+24
-M1
Bypass actuator
Bypass position switch
1 2
3 4
5 6
-X5
7
8
KF2EDGKD-2.5/8P
1 2
3 4
5 6
-X3 KF2EDGKD-2.5/6P
-K2
White
0.5
White
0.5
Blue
0.22
Red
0.22
Yellow
0.22
Violet
0.22
Black
0.22
Blue
0.22
White
0.35
White
0.35

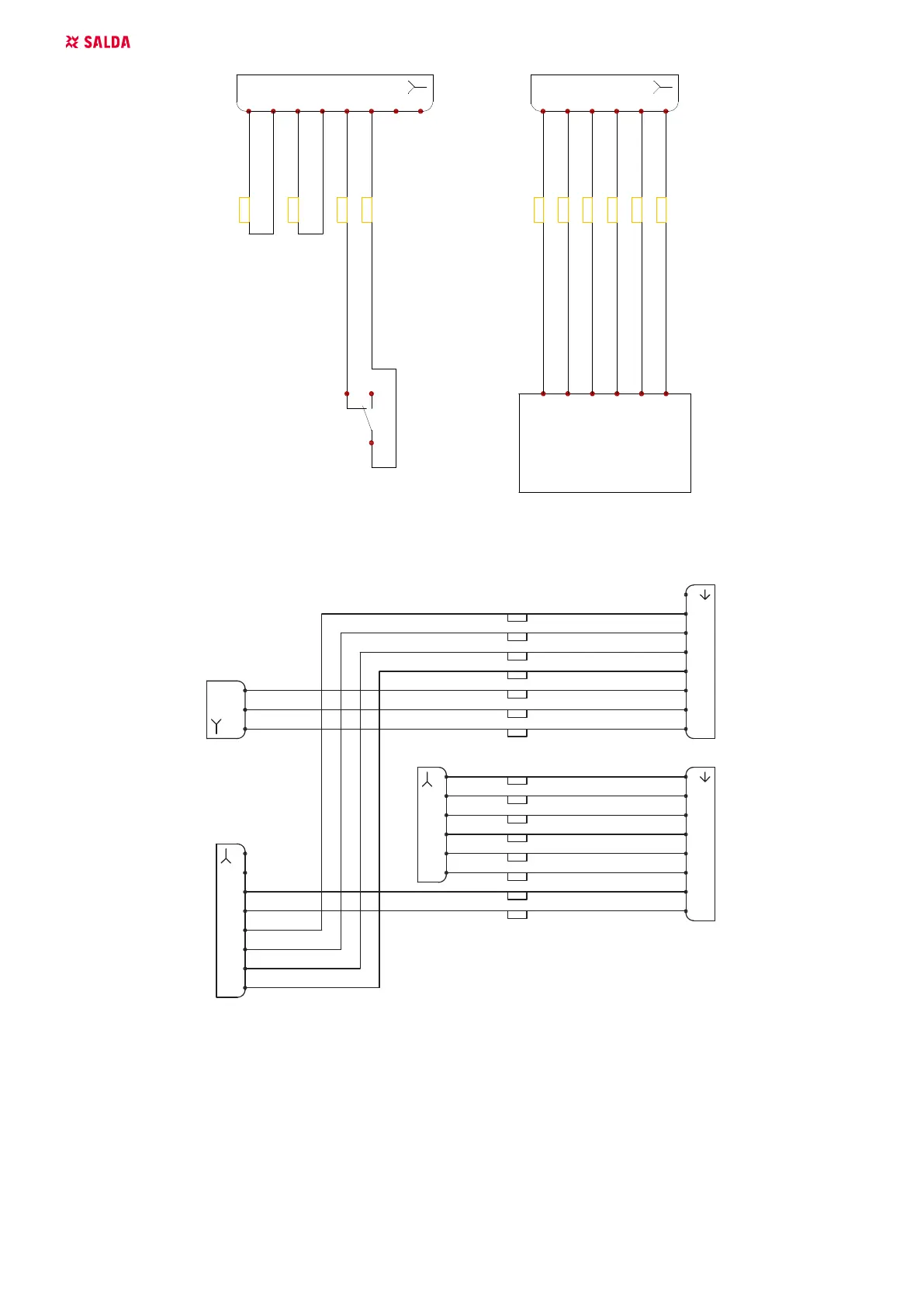

Figure 8.15.5. Bypass wiring (version 1.1 / 1.2) (221.1055.0.1.0-PS)
DRAWNBY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
CHECKED BY
1123445677
EI D. Aleksandravičius
EI A. Šklenikas
Pynė l. Smarty 3XV-PE-0k
221.1011.0.1.0-PS-0k
Principle connectionscheme
8
01
2015-11-24
2015-11-24 2015-11-24
1
2
3
4
5
6
X25
7
8
794821-1
1
2
3
4
5
6
X3 KF2EDGKD-2.5/6P
1
2
3
4
5
6
X5
7
8
KF2EDGKD-2.5/8P
1
2
3
4
5
6
X29
7
8
794821-1
X12
KF2EDGKD-5.0/3P
3
2
1
Bypass
Preheater
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
White
0.35
Brown
0.75
Green-yellow
0.75
Blue
0.75
Figure 8.15.6. Preheater, Bypass wiring (Smarty 3XV-PE-0k)
