Salon Systems T-Max 3A - Figure C - Rear View of T-Max3 A;F;I and Audio Circuit Board

T-Max® Manager/Plus and T-Max®3A/F/I User’s Guide Page 40

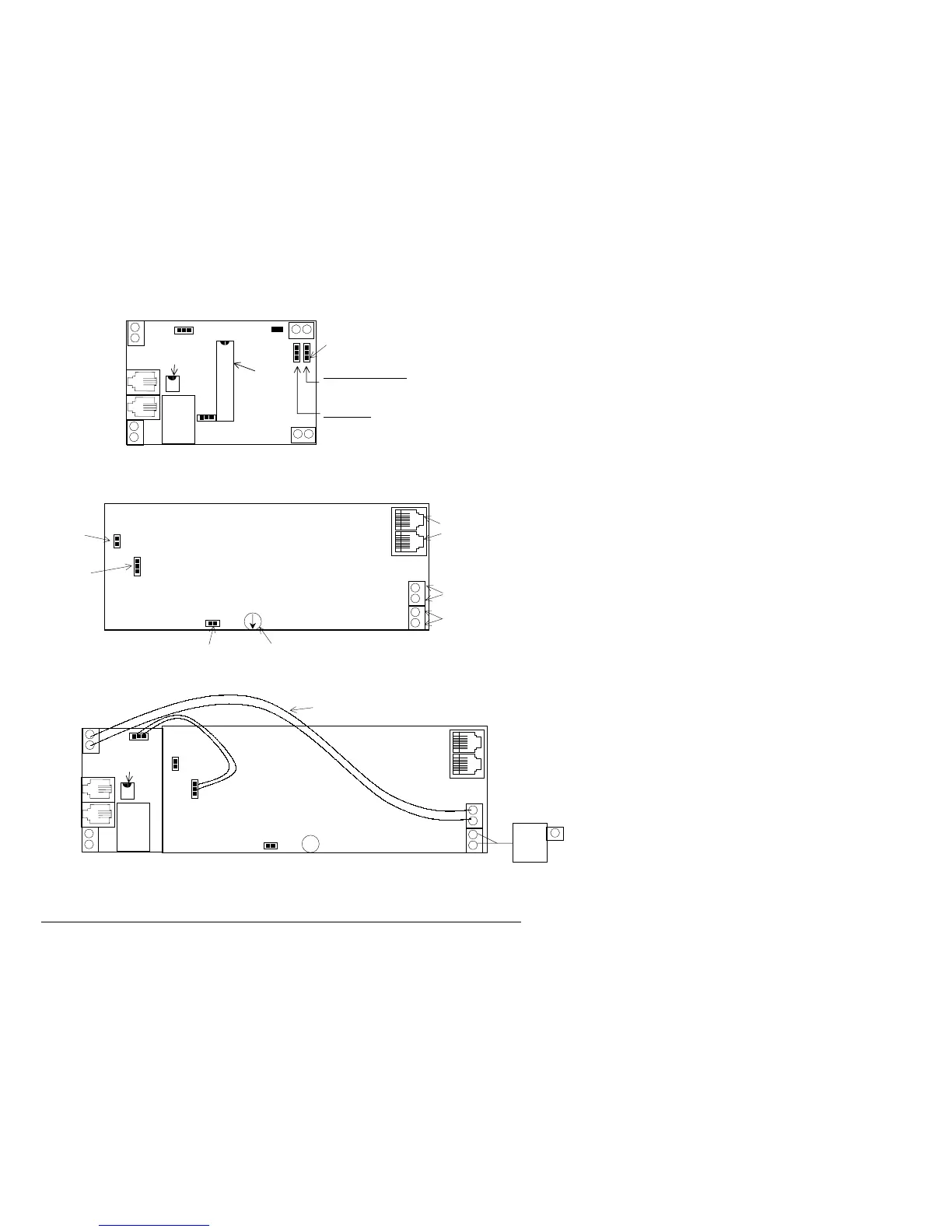

12.3 Figure C - Rear View Of T-Max®3A/F/I and Audio Circuit Board
T-Max®3A/F/I Connections – Lower T-Max® 3A Board
The Audio Board.
The T-Max® 3A and Audio Board Together.
Contact-Connect the
tanning bed wires here.
J100 Jumper Settings
Ext. Start Switch: 2&3
ON
J99 Settings
Sentry: 1-2 ON
Relay
Sentry
Pwr:
9-12V
Ext. Start
(Optional)
JP1
IC16C73A
75176
J6
Pin 1
P2
J4 – Speaker Volume
In
p
ut Control
RJ-45 Modular
Connections for
voice.
Power: 12VAC
Power: 12VAC
J3 - MIC
J7 -
Connection
to T-Max®
3A.
Connects to
P2
RJ-22
connectors
Relay
Pwr:
9-12V
75176
P2
These cables provide power to both
the T-Max® 3A and Audio Board.
