OWNER’S MANUAL V.052021 ENGLISH
M-065 INDOOR BIKE K5
This manual can be downloaded on www.salter.es
4. ASSEMBLY INSTRUCTIONS

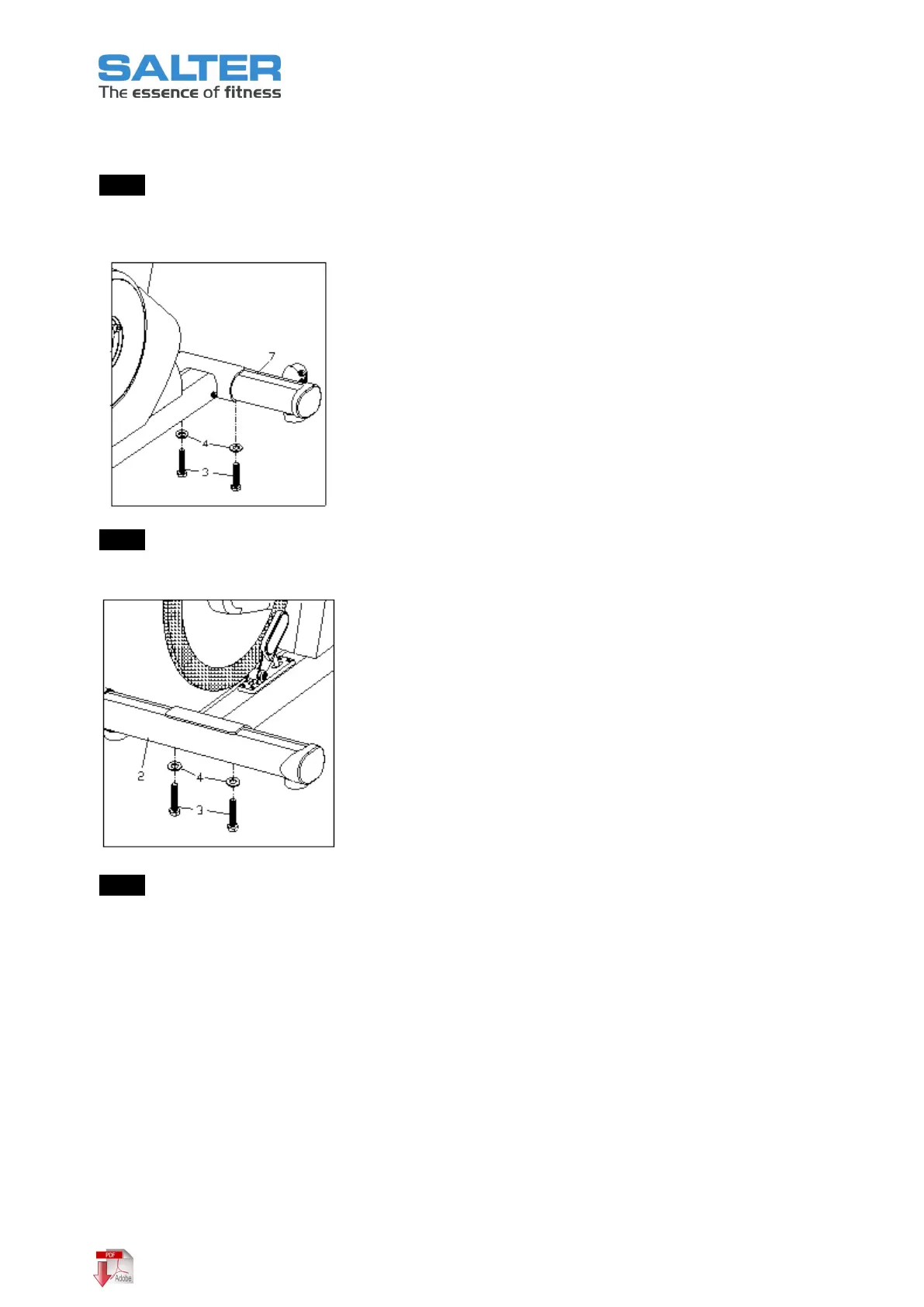

STEP 1
Attach the front foot (7) to the frame using the bolt (3) and washer (4).
STEP 2
Attach the rear foot (2) to the frame using the bolt (3) and washer (4).
STEP 3
Attach the pedals (76R/76L) into the crank arms (70R/70L), each pedal is marked with the letter R (right) or
L (left) to denote the side of the they are on. NOTE: the right hand crank is on the same side as the chain
cover (78R). Be careful to align the threads correctly to avoid any damaged. A little grease on the thread
should help the pedals to screw in easily and correctly, tighten using a 15mm spanner, both pedals threads
should tighten towards the front of the bike.
