SC102ZB Fan Coil Controller Installation
Section 3
SC102ZB/ST103ZB Installation and Operation Manual
SC102ZB Fan Coil Controller Installation
No Junction Box or
Horizontal 2” x 4” Box
Vertical 2” x 4” Junction Box
(wall plate sold separately)
4” x 4” Junction Box
(wall plate sold separately)

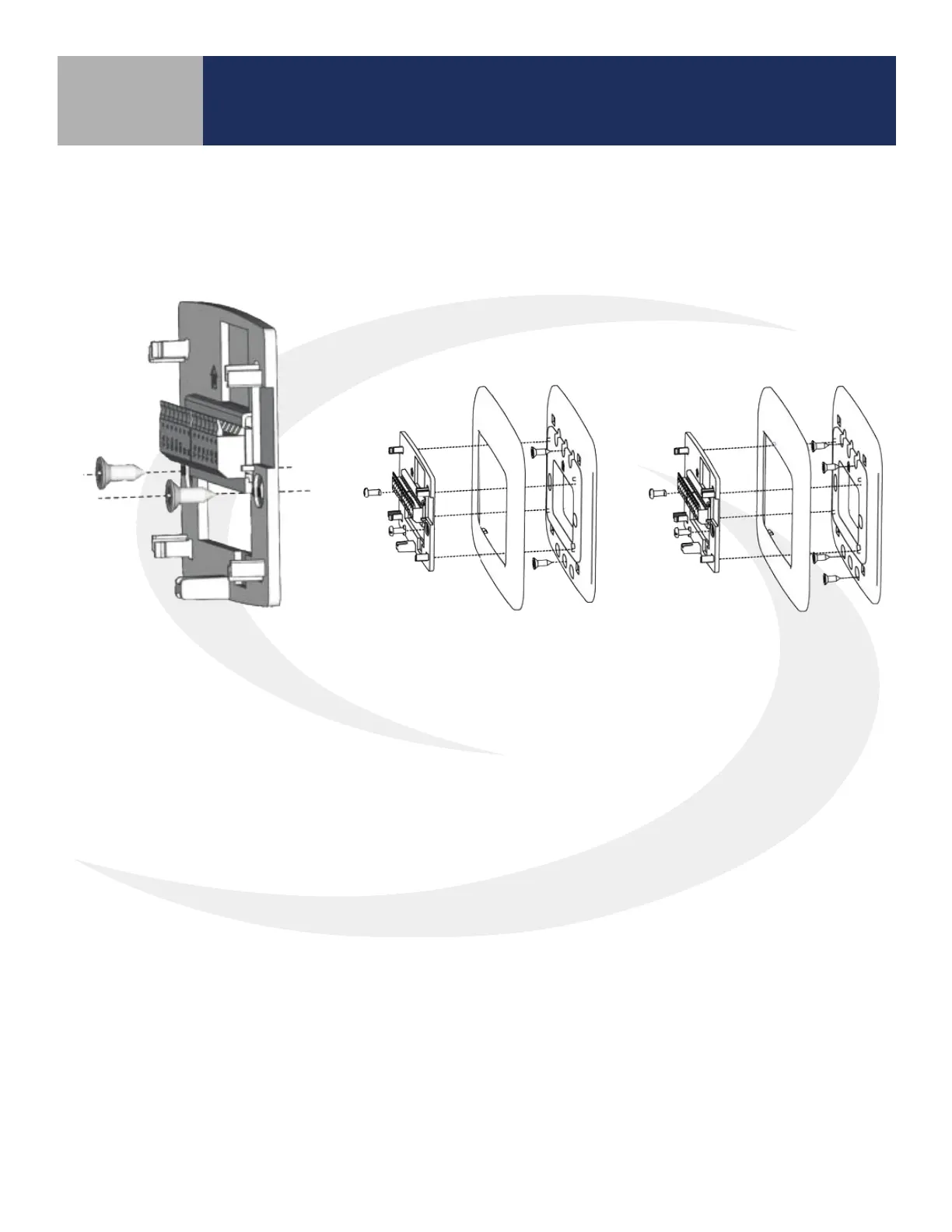

Install the Wiring Mount in the desired location using the wall screws provided, making sure the
wires go through the center opening. Anchors are provided if necessary. An optional wall plate
(sold separately) is available for mounting to a junction box (see below).
