22 VS20WRF and VS20BRF Installer Manual

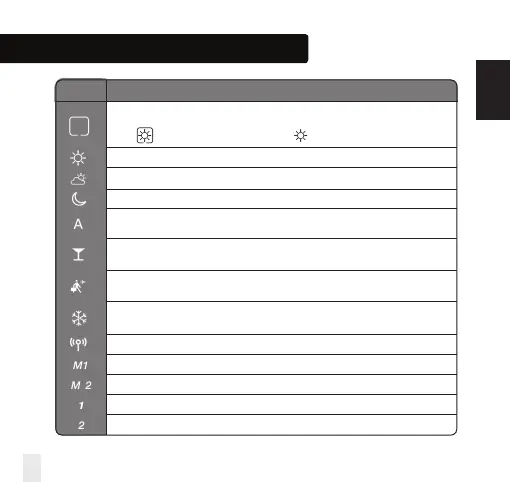

Installation – LCD Graphics
ICON FUNCTION
BOX means to select the mode
e.g. means the current setpoint is Hi temp, means the Hi temp is not selected.
Sunny: Hi comfortable temperature.
Cloudy: Middle comfortable temperature.
Moon: Low comfortable temperature.
Programmable thermostat Program mode indicator: Indicates program is
running, Auto On or Auto Off. For group thermostat this indicates that it is a member of a group.
Party indicator:
When Party mode is active.
Vacation indicator:
When Vacation mode is active
Frost protection indicator:
Frost protection is active, not available in cooling mode (if applicable)
RF Transmission is active
Group 1 Control Thermostat
Group 2 Control Thermostat
Group 1 Thermostat
Group 2 Thermostat
INSTALLATION
